Description

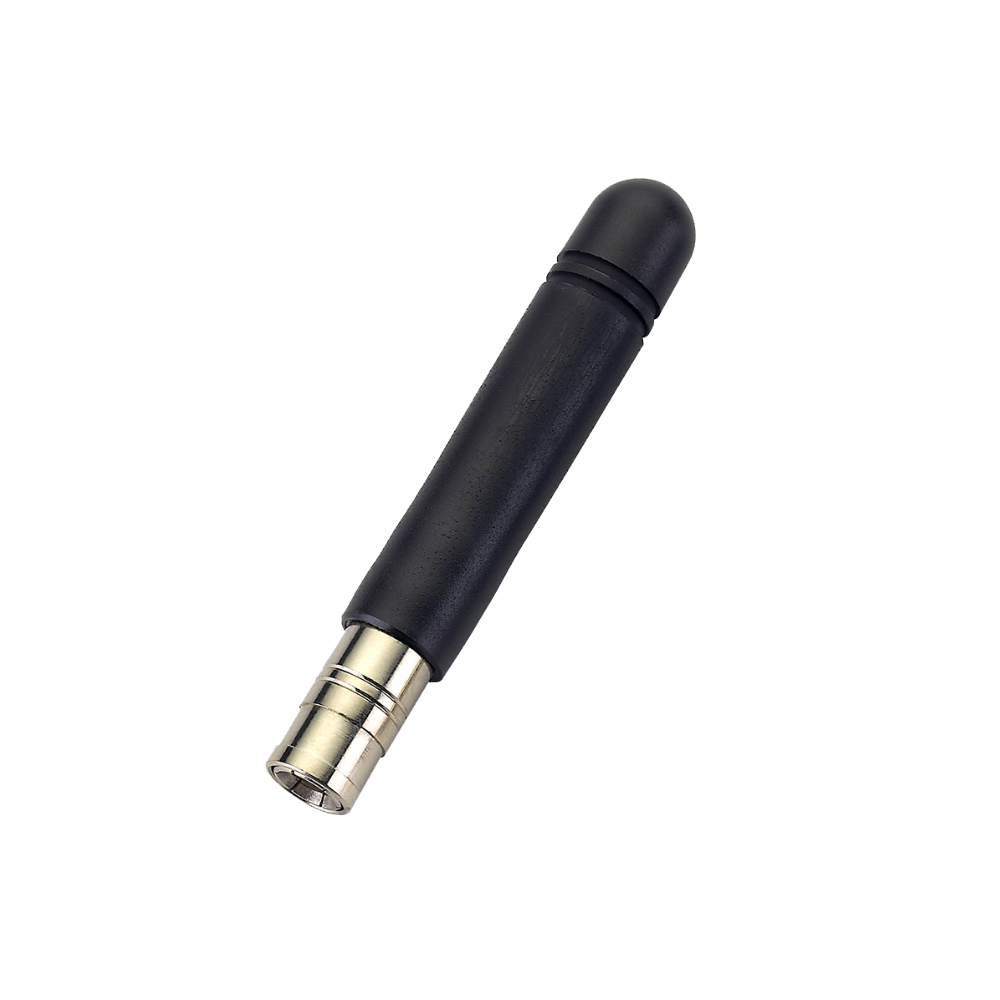

This low-profile 433MHz terminal antenna is designed for reliable omni-directional performance in compact devices operating in the ISM band. Its robust construction supports dependable operation in demanding environments and applications where consistent reception and transmission are required.
- 433MHz ISM-band performance for compact wireless devices
- Omni-directional radiation pattern for stable connectivity in mobile installations
- Low-profile, robust design suited to tough handling and vibration-prone environments
Connector & Cable
- Connector Type: SMB(F)
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Dimensions: L:46mm Ø8mm
Weight: 8.5g
ISM / LoRa (433MHz)
Frequency: 433.05 - 434.79MHz
Standards: 433MHz ISM Band
Peak Gain: 0dBi
Return Loss: -17dB
Impedance: 50 Ohms
Radiation Pattern: Omni-directional
Polarization: Linear
VSWR: ≤1.5:1
Power handling: 5 W
Connector Type: SMB(F) plug
