Description

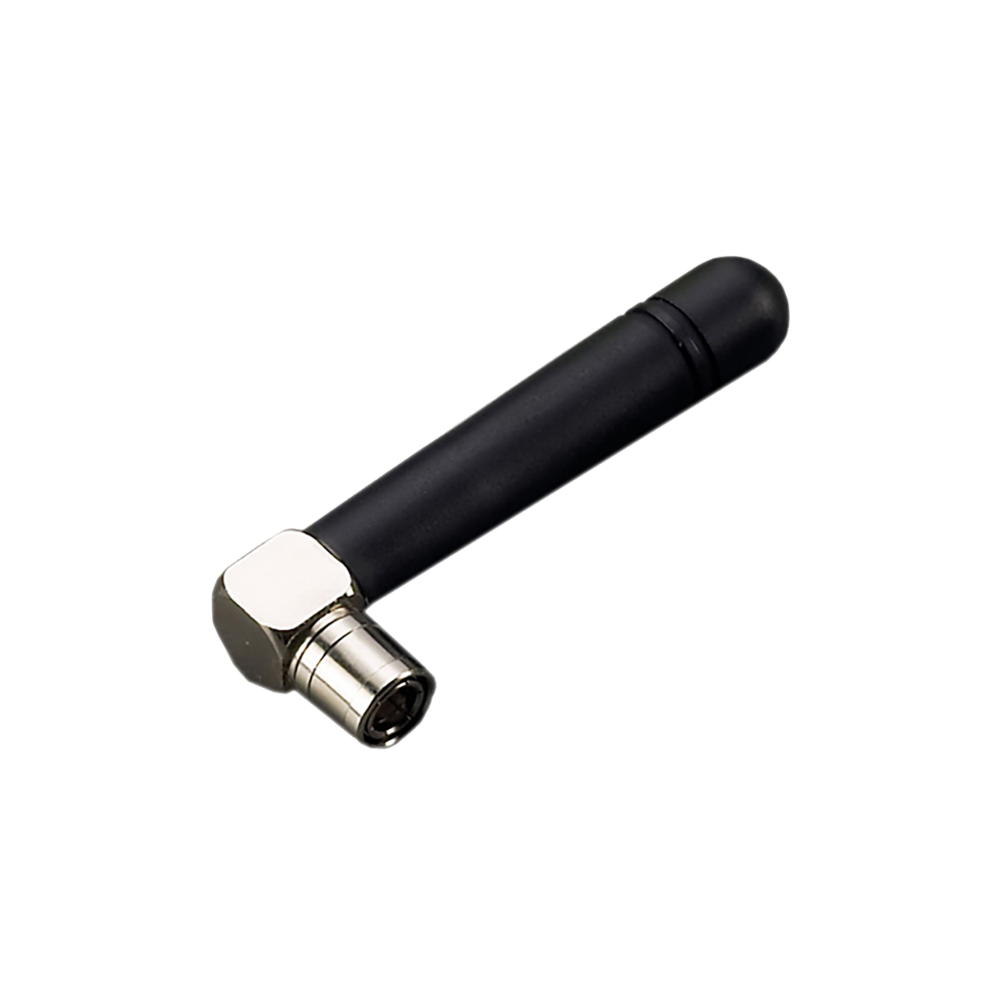

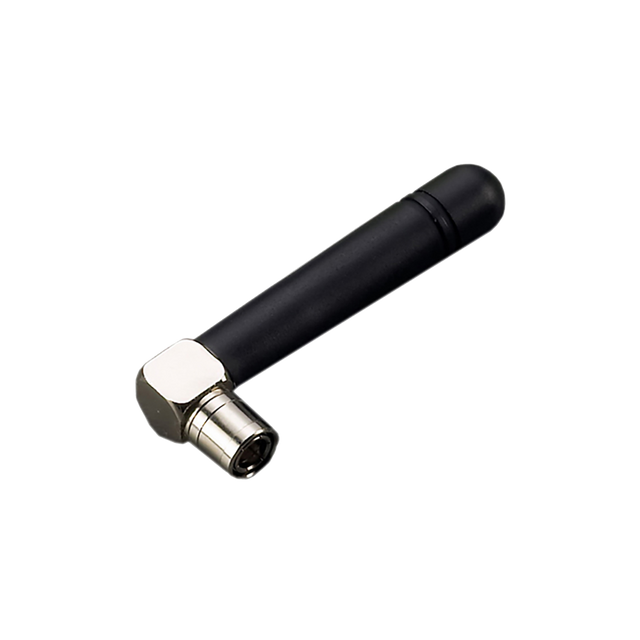

This 433MHz omni-directional terminal antenna is designed for reliable reception and transmission in compact devices. Its low-profile helical design supports robust handling and consistent performance, making it well-suited to tough operating environments.
The push-lock SMB right-angle plug style enables quick installation and helps reduce common cable-related issues such as loss, twisting, and vibration-related disconnection.
Suggested applications include:
- Automotive
- Remote control
- Remote monitoring
- Smart Meter
Connector & Cable
- Connector Type: SMB(F)RA
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Helix
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 433.05~434.79MHz
Impedance: 50 Ohms
Polarization: Linear
VSWR: ≤1.5:1
Return Loss: -20dB
Peak Gain: 0dBi
Radiation Pattern: Omni-directional
Power Handling: 5 W
Dimensions: 45*14.7mm
Weight: 8.5g
Housing: TPE
Connector Type: SMB(F)RA plug
