Description

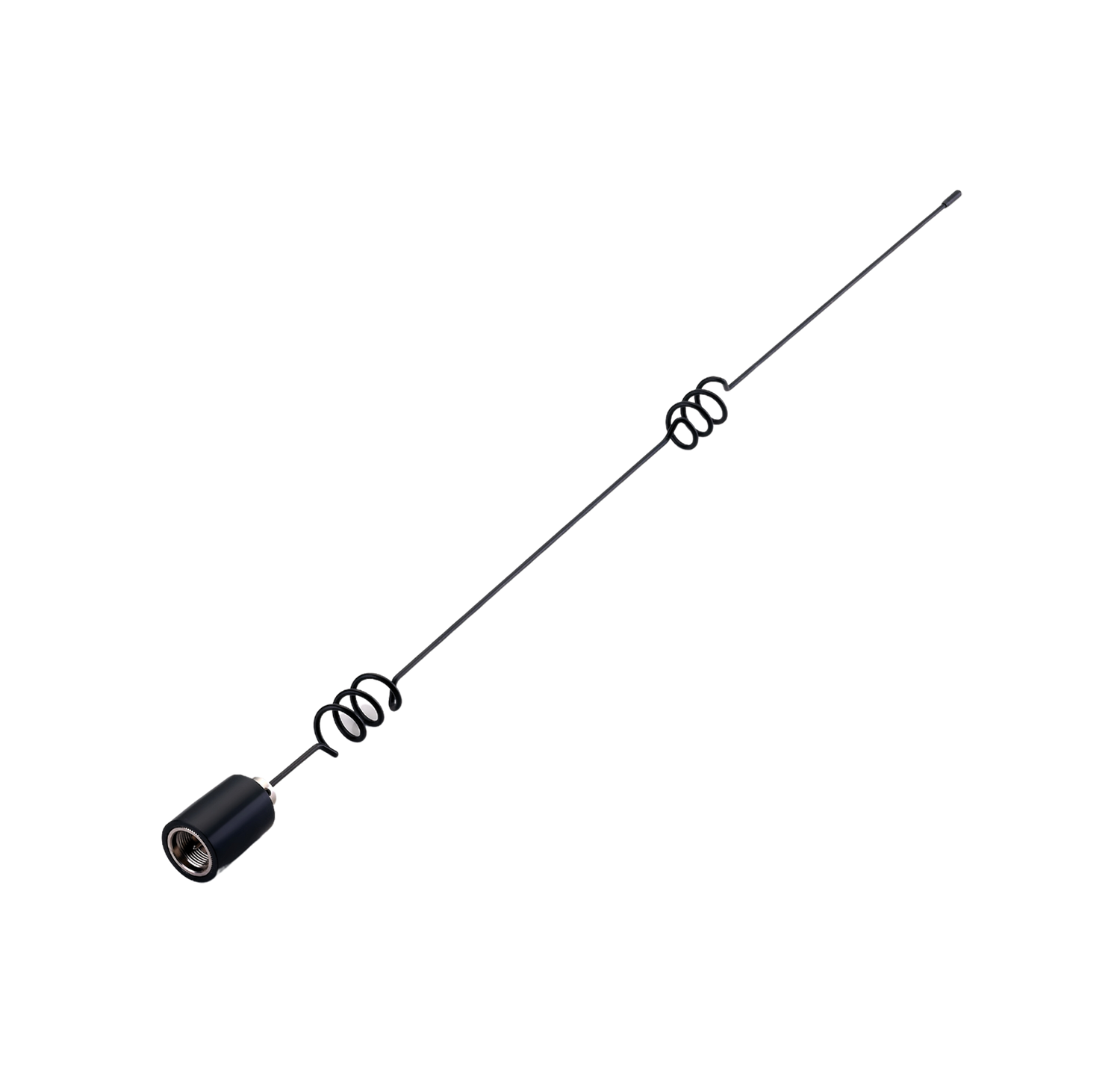

This outdoor omni-directional rigid whip antenna is designed for 915MHz ISM/LoRa applications that require robust construction and dependable all-around coverage in the azimuth plane.
- Designed for outdoor deployment: weatherproof brass whip and casing
- Stable performance: across the 902–928MHz ISM band
- Omni-directional radiation pattern: suitable for wide-area coverage needs
- Use cases: metering and remote monitoring
Connector & Cable
- Connector Type: N-Type Male
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole, Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal
Type: Single
Dimensions: L:557mm Ø25mm
Weight: 77g
ISM / LoRa (915MHz)
Frequency: 902MHz - 928MHz
Standards: ISM/LoRA
Impedance: 50Ω
VSWR: 1.5:1
Polarization: Linear
Radiation Pattern: Omni
Input Power: 50 W
Gain (Max): 1.21
Connector Type: N Male Straight
