Description

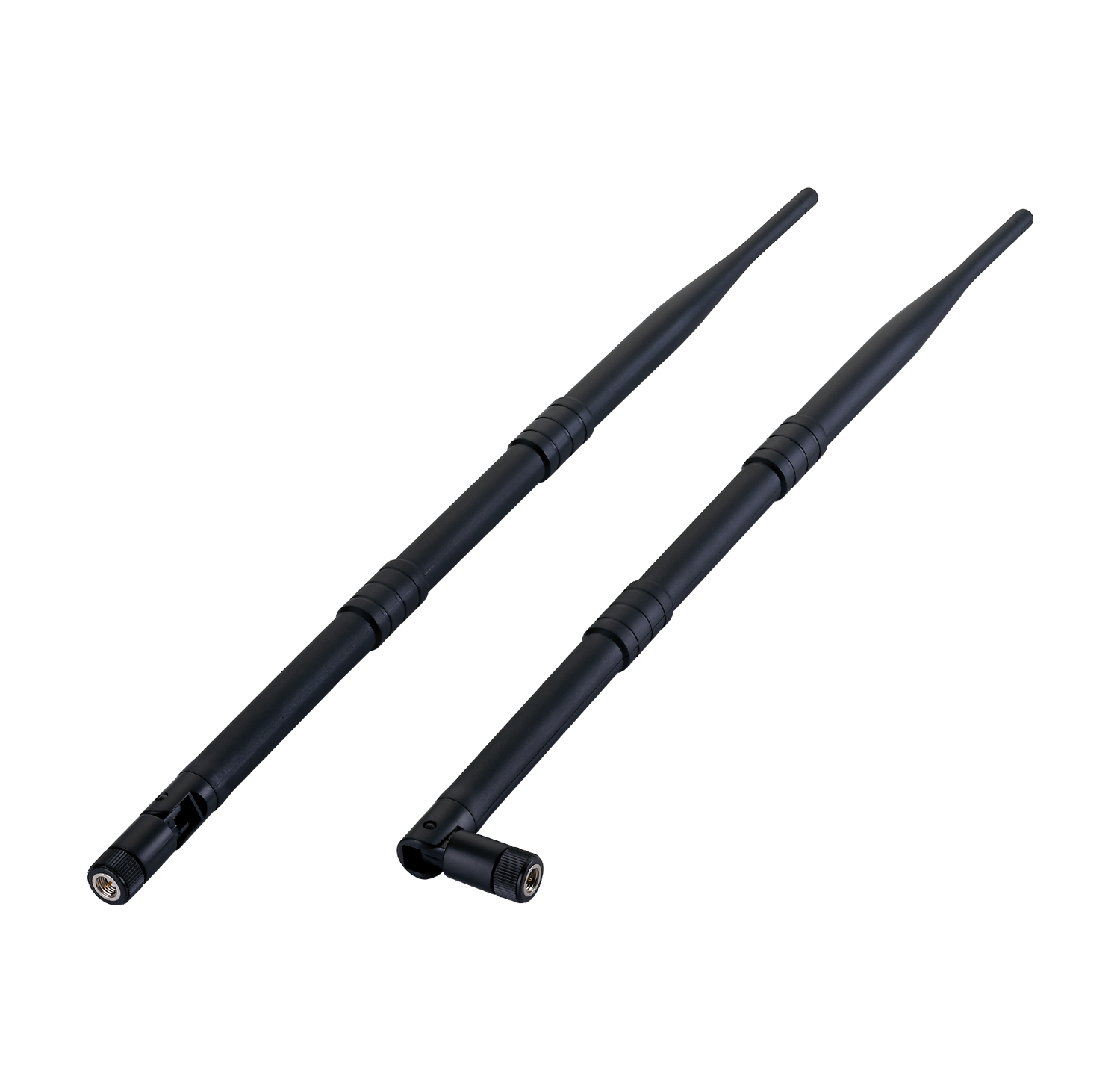

This hinged terminal dipole antenna is designed for 868MHz ISM-band devices, offering high efficiency and an omnidirectional radiation pattern. The hinged body helps position the antenna for improved in-use performance when device orientation or mounting constraints vary.
- 868MHz ISM / LoRa support: Suitable for sub-GHz LPWAN connectivity.
- Hinged design: Allows angle adjustment to help optimize radiation direction.
- Omnidirectional pattern: Helps provide broad coverage in typical deployments.
- High efficiency: Designed to maximize radiated performance for compact terminal installations.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Antenna Length: 389 ± 5 mm
Antenna Diameter: 13 ± 0.5 mm
Casing: TPU
Weight: 48g
ISM / LoRa
Frequency: 868-870 MHz
Impedance: 50Ω
VSWR: < 1.9 : 1
Polarization: Linear
Radiation Pattern: Omni
Input Power: 10 W
Peak Gain (bend): 3.2dBi
Peak Gain (straight): 3.2dBi
Efficiency (bend): 92%
Efficiency (straight): 93%
Connector Type: SMA Male
Connector Body Style: Hinged
