Description

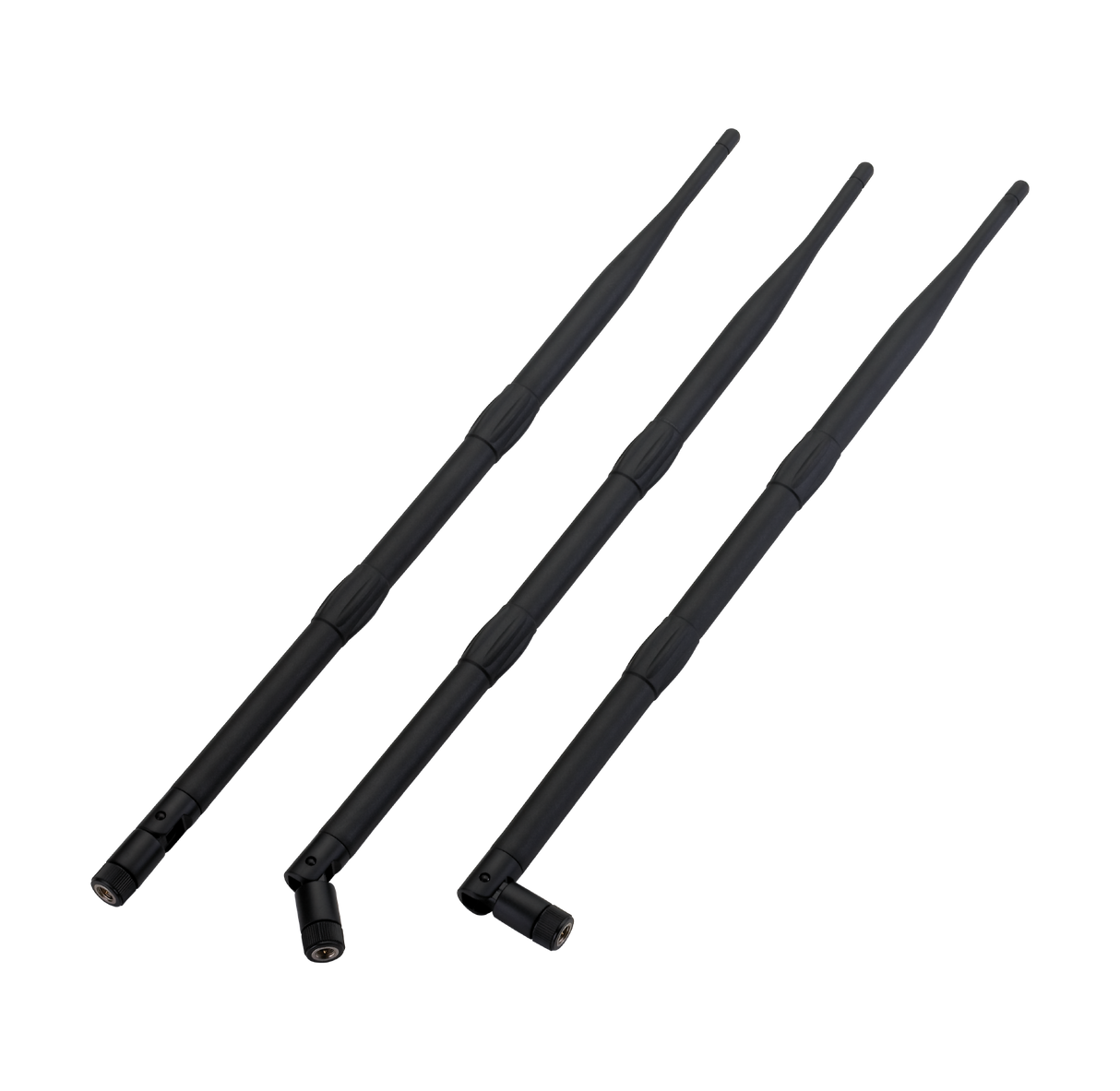

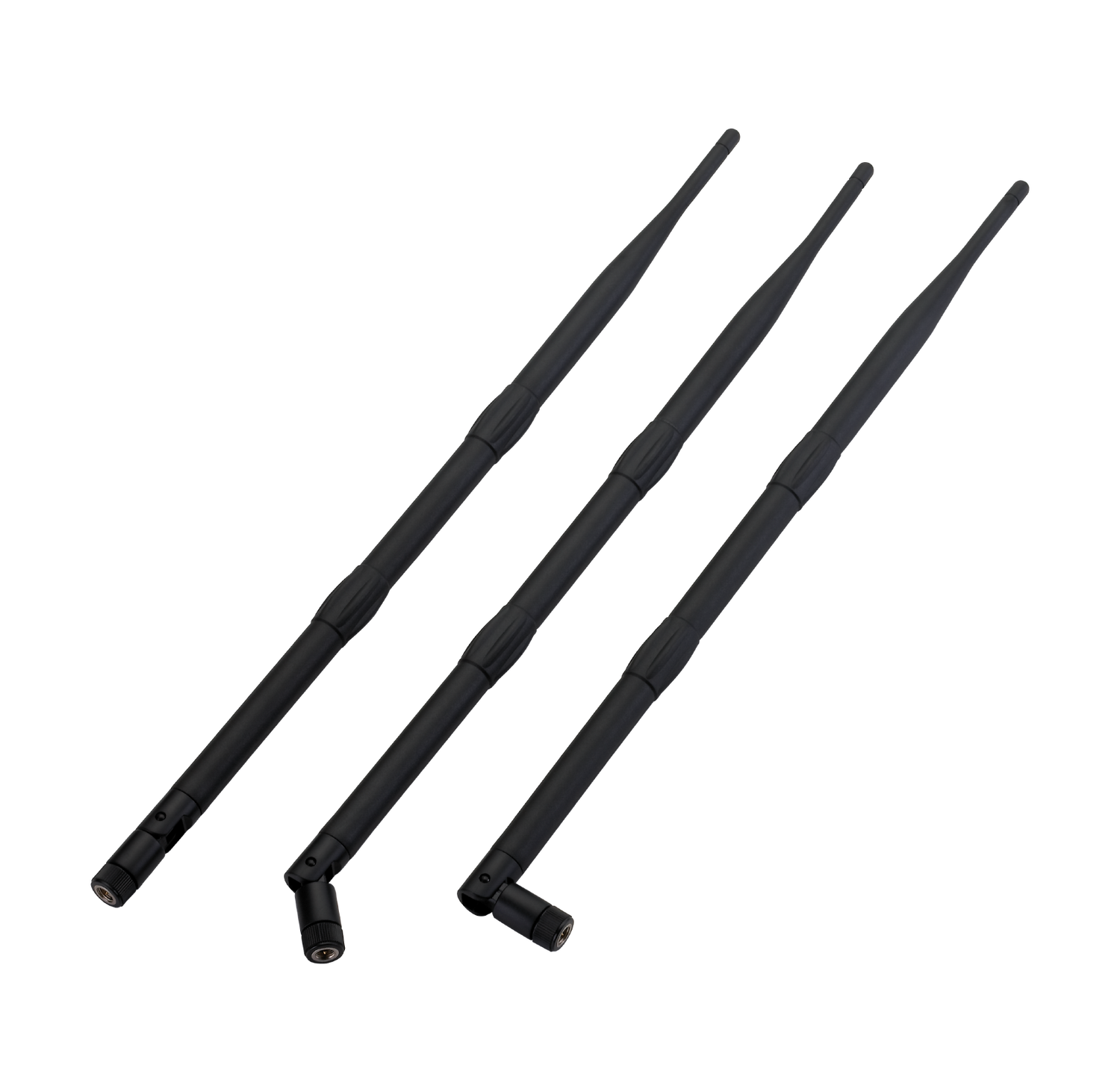

This hinged terminal dipole antenna is designed for 915MHz ISM band devices where the antenna needs to be positioned for the best possible link quality. The hinge mechanism helps optimize orientation, while the dipole design supports efficient, omnidirectional performance for LPWAN deployments.
- Designed for 902–928MHz ISM band operation
- Hinged terminal form factor for adjustable positioning
- Omnidirectional radiation pattern suited to gateways, access points, and fixed installations
- High efficiency performance to support reliable long-range links
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Weight: 48g
Dimensions: Straight 389mm Ø13mm~R/A 362mm*36.2mm Ø13mm
ISM / LoRa (915MHz)
Frequency: 902 ~ 928MHz
Peak Gain (bent): 2.5dBi
Peak Gain (straight): 2.4dBi
Gain (Max): 2.9dBi
Average Gain (bent): -1.0dBi
Average Gain (straight): -0.9dBi
Efficiency (bent): 81%
Efficiency (straight): 82%
Impedance: 50Ω
VSWR: < 1.9 : 1
Polarization: Linear
Radiation Pattern: Omnidirectional
Input Power: 10 W
Connector Type: SMA Male
