Description

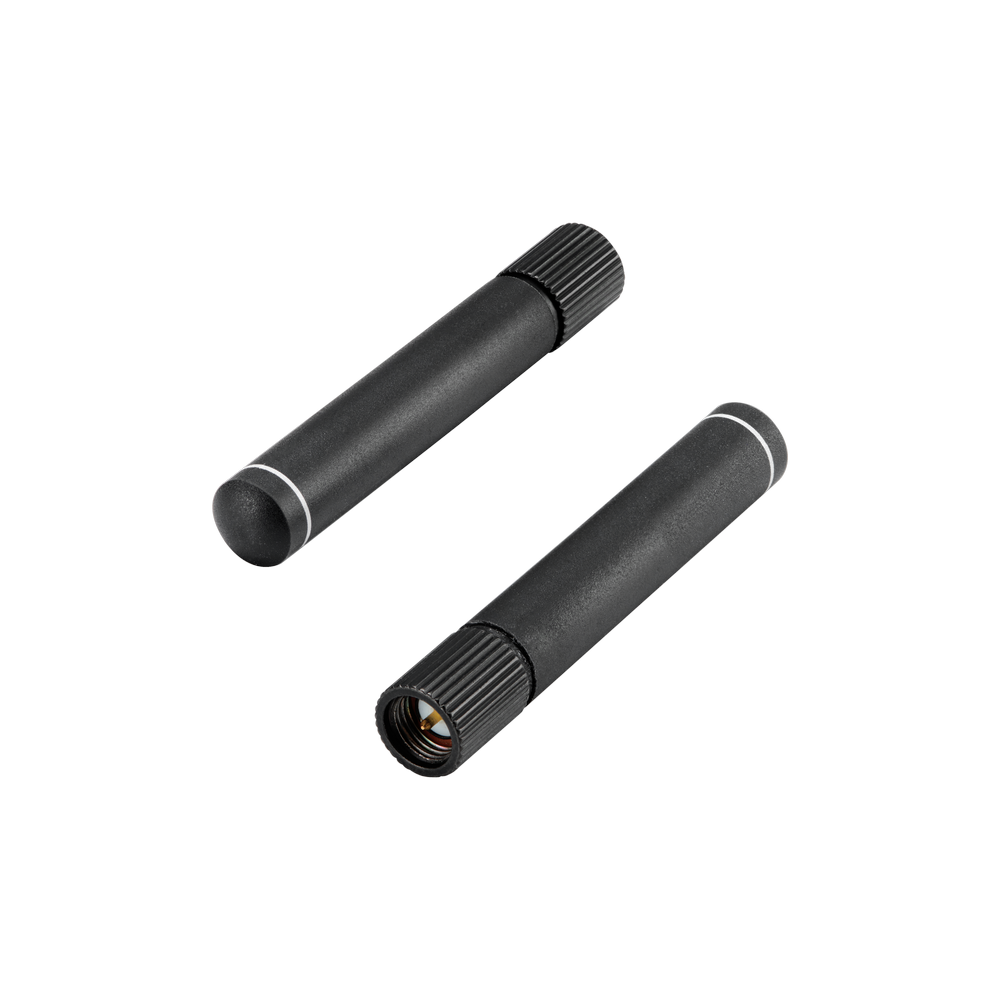

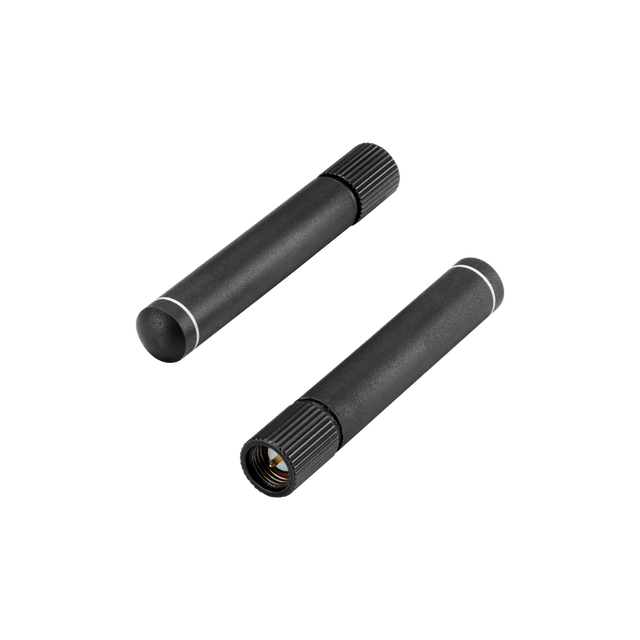

TI.33.A111 is a super small form factor, lightweight terminal-mount antenna designed for 410–430MHz operation on ISM/LoRa bands. Its low-profile, rugged enclosure is engineered to perform in demanding external environments, helping connect IoT devices used in smart grid and smart monitoring deployments.
With an IP67 waterproof rating, it is built to withstand dust, dirt, and even complete submersion in water—making it well-suited for harsh outdoor and industrial installations where durability and reliable connectivity matter.
- 410–430MHz band operation for ISM/LoRa applications
- Low-profile terminal-mount form factor for compact devices
- IP67 waterproof rating for challenging environments
- Designed for IoT use cases such as smart grid, smart monitoring, remote agriculture, industrial deployments, and smart city infrastructure
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 410MHz - 430MHz
IP Rating: IP67
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.78 dBi
Max. Input Power: 10W
Dimensions: Ø8.5 x 50.8 mm
Weight: 6.9g
Connector Type: SMA(M)
