Description

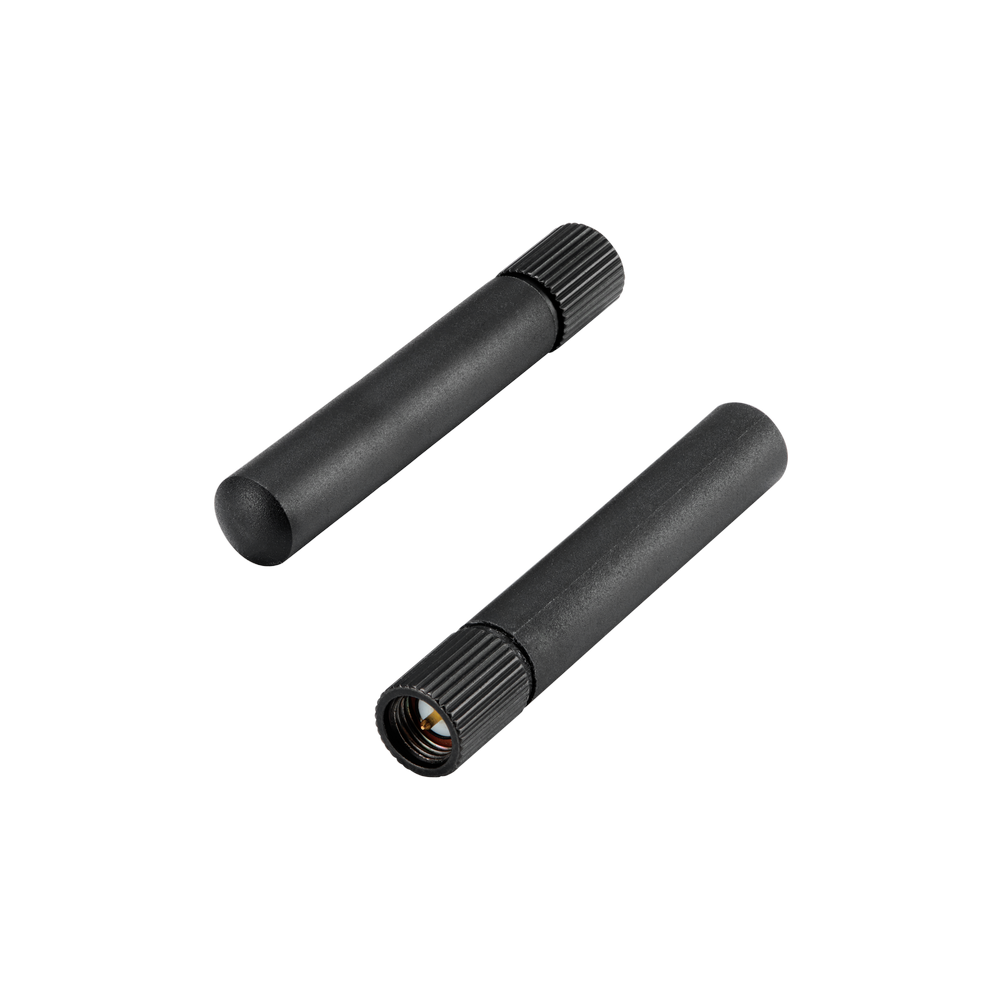

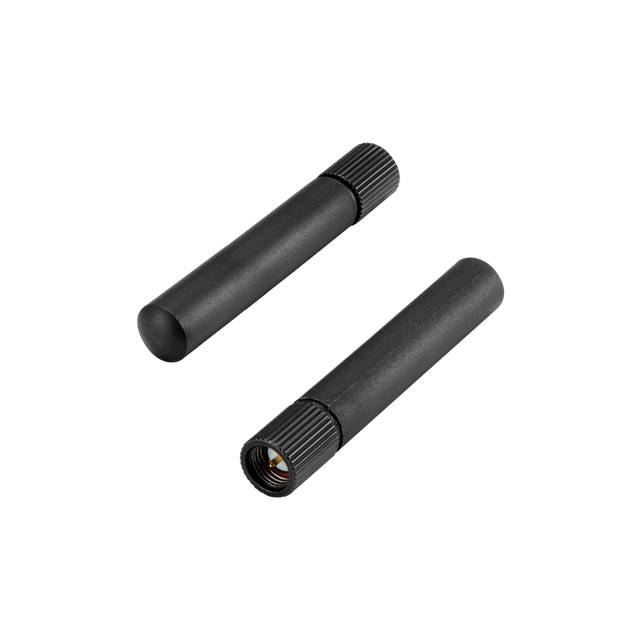

TI.34.A111 is a super small, lightweight terminal-mount antenna designed for reliable UHF connectivity in demanding environments. Its low-profile, rugged enclosure and waterproof protection make it well-suited for connecting IoT devices used in smart grid and smart monitoring deployments.
Ideal for projects such as connecting sensors for remote agricultural use, monitoring equipment in industrial settings, and building infrastructure for smart cities where durability and consistent performance are required.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40 C ~ +85 C
Antenna Technologies:
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Ø8.5 x 50.8 mm
Weight: 6.9g
Material: TPEE
ISM/LoRa (UHF)
Frequency: 450MHz - 470MHz
Impedance: 50
Polarization: Linear
Radiation Pattern: Omni
VSWR: 2:1
Gain (Max): 3.96 dBi
Efficiency (%): 28.8 (on 15x9cm ground plane), 38.5 (on 9x15cm ground plane)
Average Gain (dB): -5.40 (on 15x9cm ground plane), -4.15 (on 9x15cm ground plane)
Peak Gain (dBi): 2.58 (on 15x9cm ground plane), 3.96 (on 9x15cm ground plane)
Max. Input Power: 10W
Connector Type: SMA(M) Straight
