Description

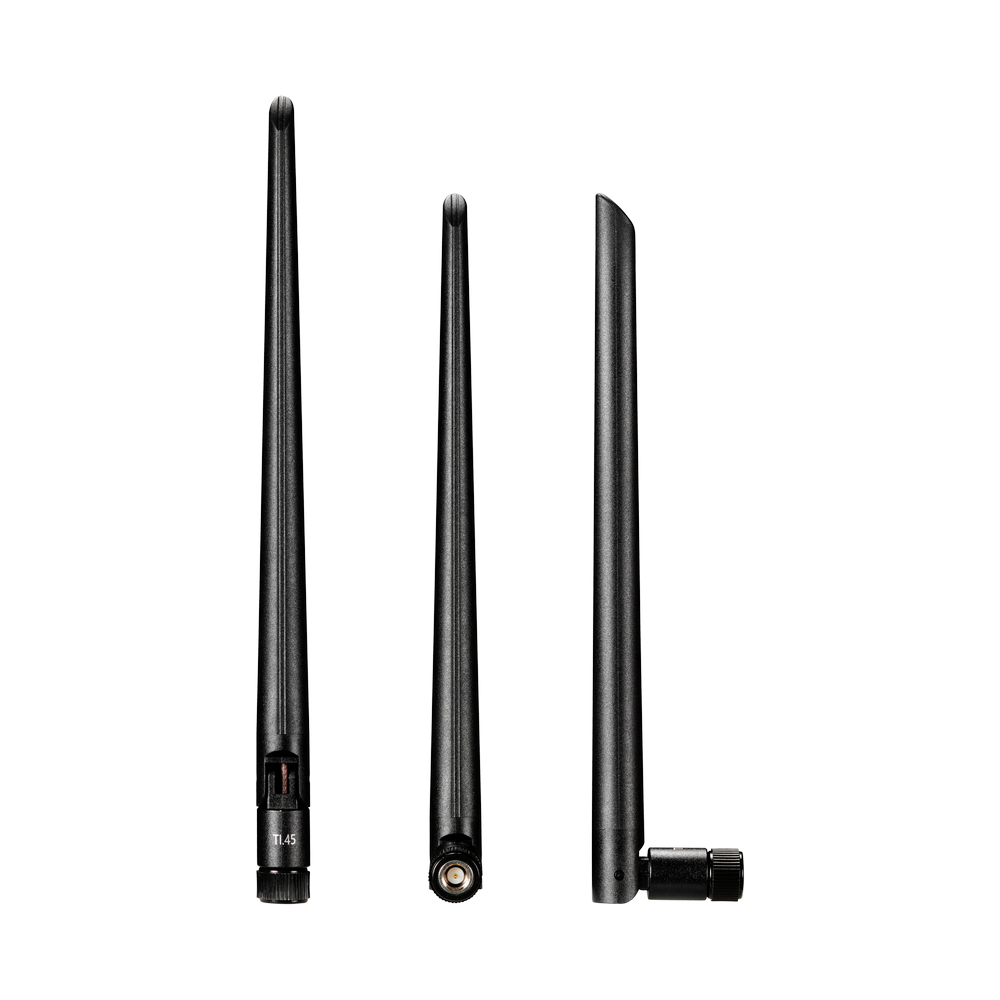

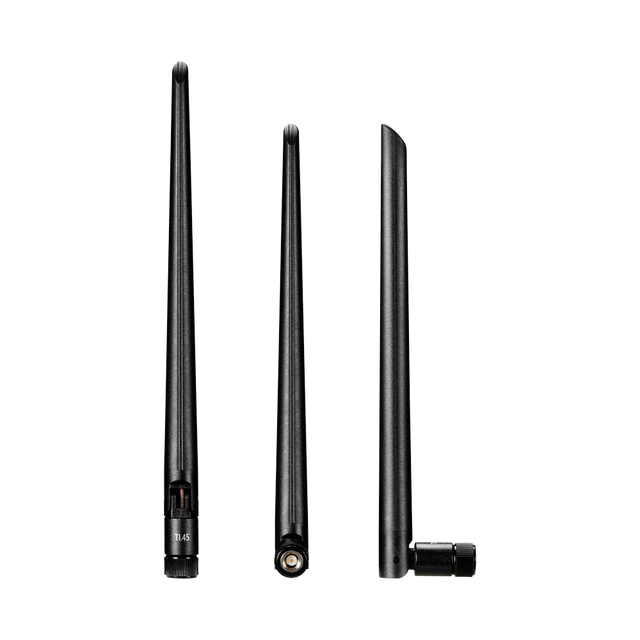

The TI.42.A113 is a high-performance terminal-mount antenna designed for operation across the 400–470MHz UHF spectrum, with strong performance at 433MHz and 450MHz. Its hinged, orientable design allows straight or right-angled positioning to help optimize placement and reduce interference from nearby objects.
It performs well when installed on metal enclosures, making it a strong choice for smart metering and remote monitoring devices. It also supports sub-500MHz cellular bands such as band 87 and band 88.
- Broad UHF coverage: 400–470MHz for ISM/LoRa and sub-500MHz use cases
- Orientable terminal form factor: helps with positioning flexibility
- Enclosure-friendly performance: suitable for metal housing installations
Typical applications include:
- Smart Metering
- Remote Monitoring
- Industrial IoT
- Connected Enterprise
Connector & Cable
- Connector Type: SMA(M)
Technical Specifications
Operating Temperature: -40°C - +85°C
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 400-470 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.5 dBi
Dimensions: Ø13 x 198 mm
Weight: 23g
Material: PC+PBT
