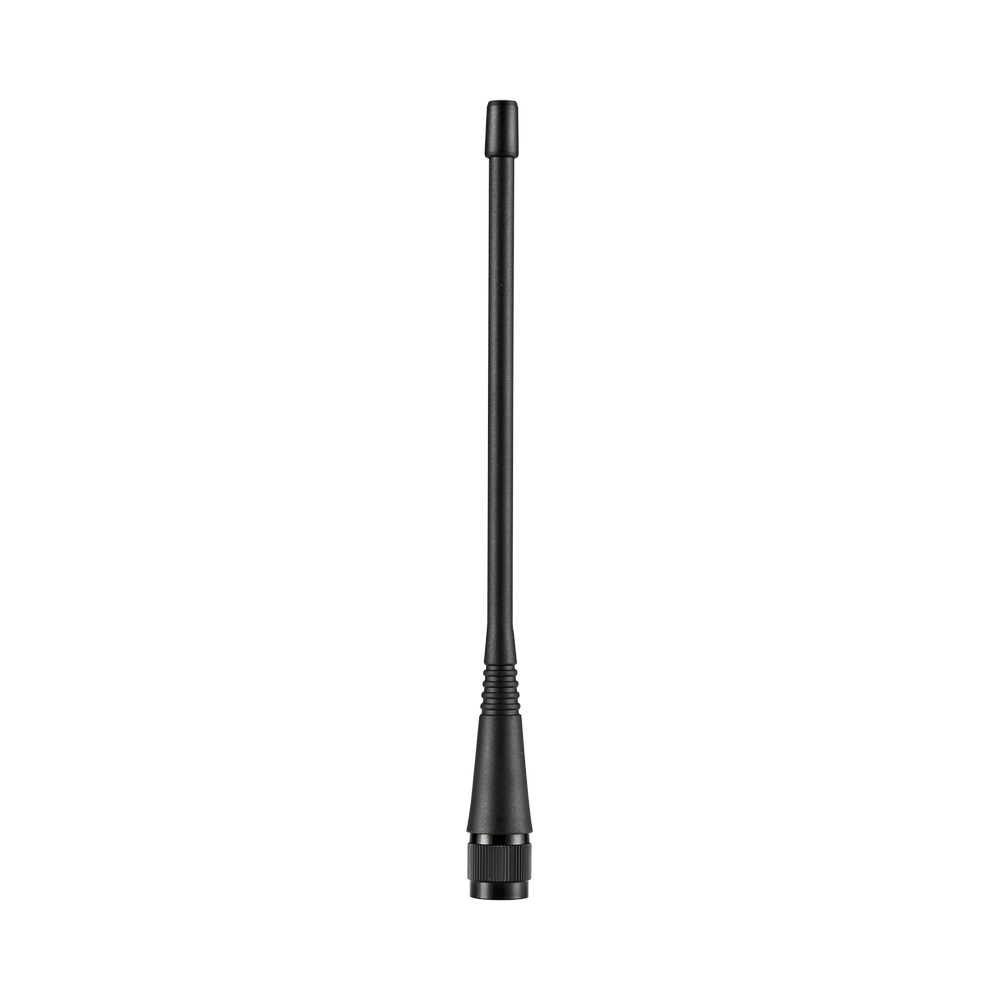

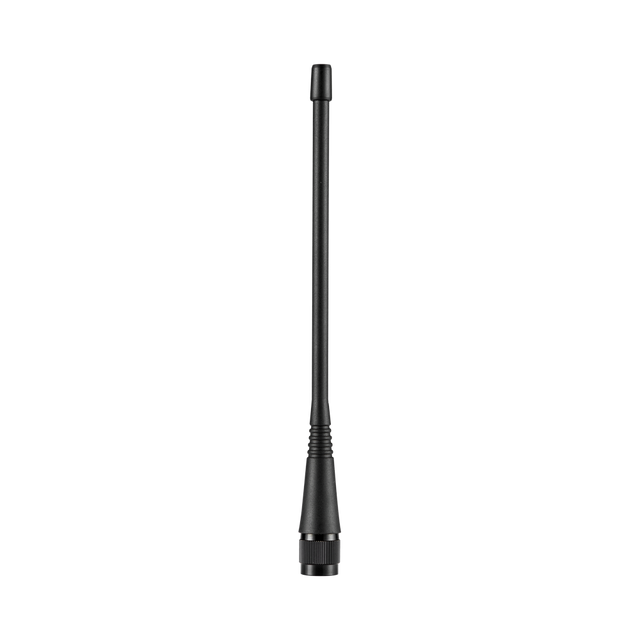

TI.43.A311 Antenna External ISM, LoRa terminal mount TNC-M IP67 for Smart Metering Systems, Wireless Mesh Networks, Security and Defense Equipment, Industrial Remote Control Devices

Terminal-mount ISM antenna for 433MHz deployments. This terminal-mount antenna is optimized for operation in the 433MHz license-free ISM band and is designed to integrate directly onto devices for dependable, uniform coverage.

Its omni-directional radiation pattern helps maintain consistent communication performance across a wide range of installations, making it well-suited to long-range, low-data-rate links.

Typical applications include:

• Smart Metering Systems
• Wireless Mesh Networks
• Security and Defense Equipment
• Industrial Remote Control Devices

Connector & Cable

• Connector Type: TNC-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
IP Rating: IP67
Dimensions: Ø13.6 x 180 mm
Weight: 25g

ISM / LoRa

Frequency: 400MHz - 470MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): -3.16
Max. Input Power: 25W
Radiation Pattern: Omni directional
Efficiency: >50% efficiency when mounted on a Ground Plane
Connector Type: TNC(M)
