Description

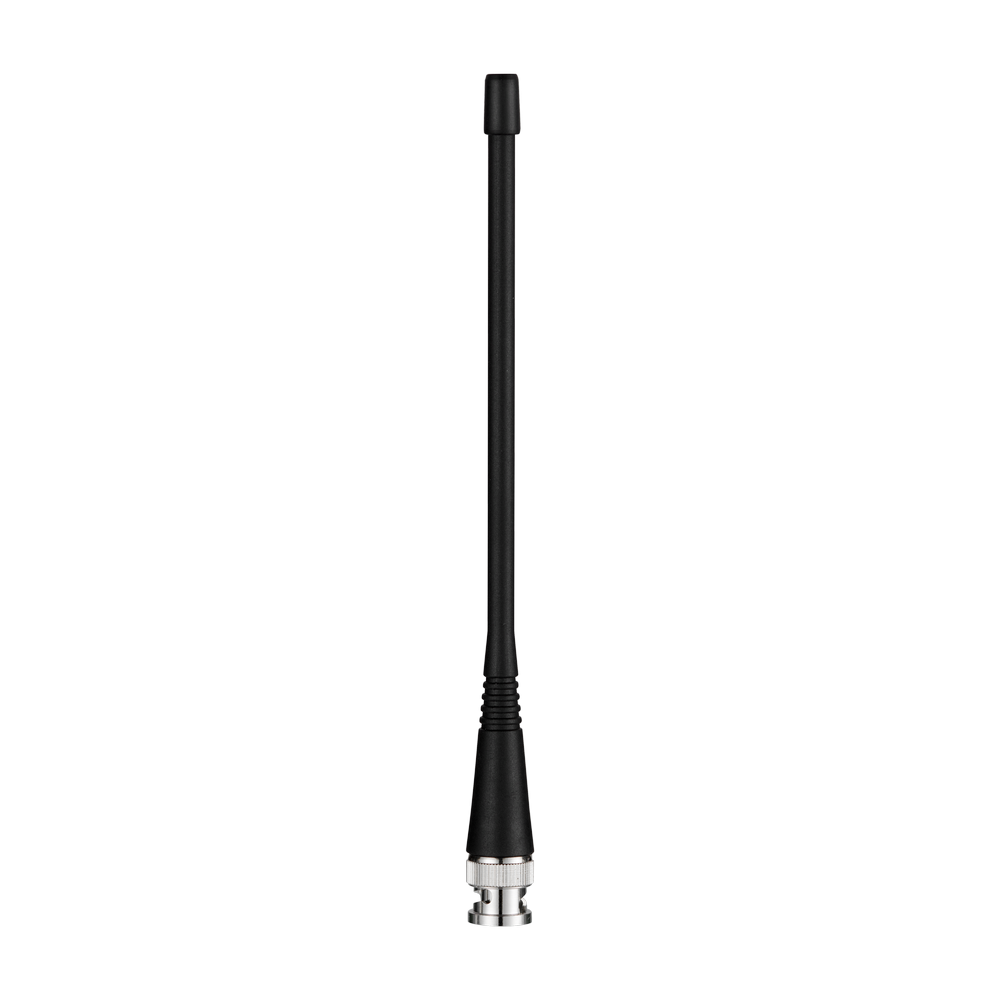

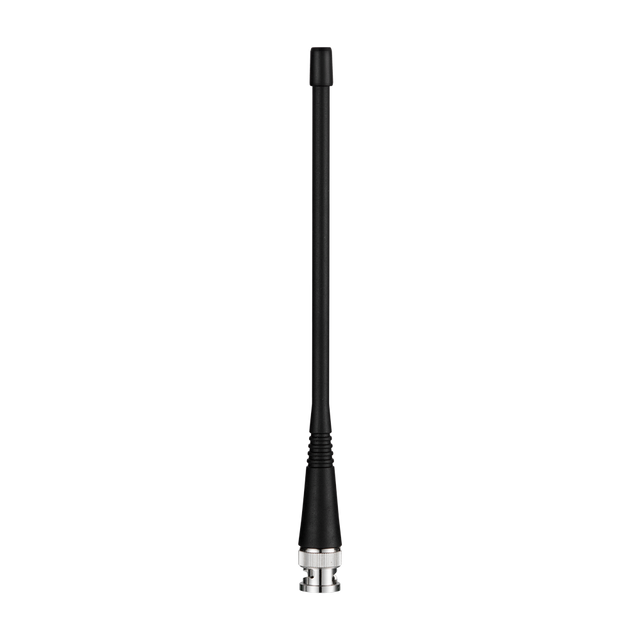

This terminal-mount antenna is designed for reliable coverage across the 400–470MHz range, supporting license-free ISM deployments including 433MHz long-range, low-data-rate links. Its omni-directional pattern helps provide consistent horizontal coverage, making it well-suited to devices that need dependable connectivity in varied environments.
Built for direct integration onto equipment housings and enclosures, it is optimized to deliver strong performance when used with a ground plane.
Typical applications include:
- Smart Metering Systems
- Wireless Mesh Networks
- Security and Defense Equipment
- Industrial Remote Control Devices
Connector & Cable
- Connector Type: BNC-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Ø14.5 x 180.4 mm
Weight: 25g
ISM/LoRa
Frequency: 400MHz - 470MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2
Gain (Max): -3.16 dBi
Radiation Pattern: Omni-directional
Max. Input Power: 25W
Efficiency: >50% efficiency when mounted on a Ground Plane
Connector Type: BNC(M)
