Description

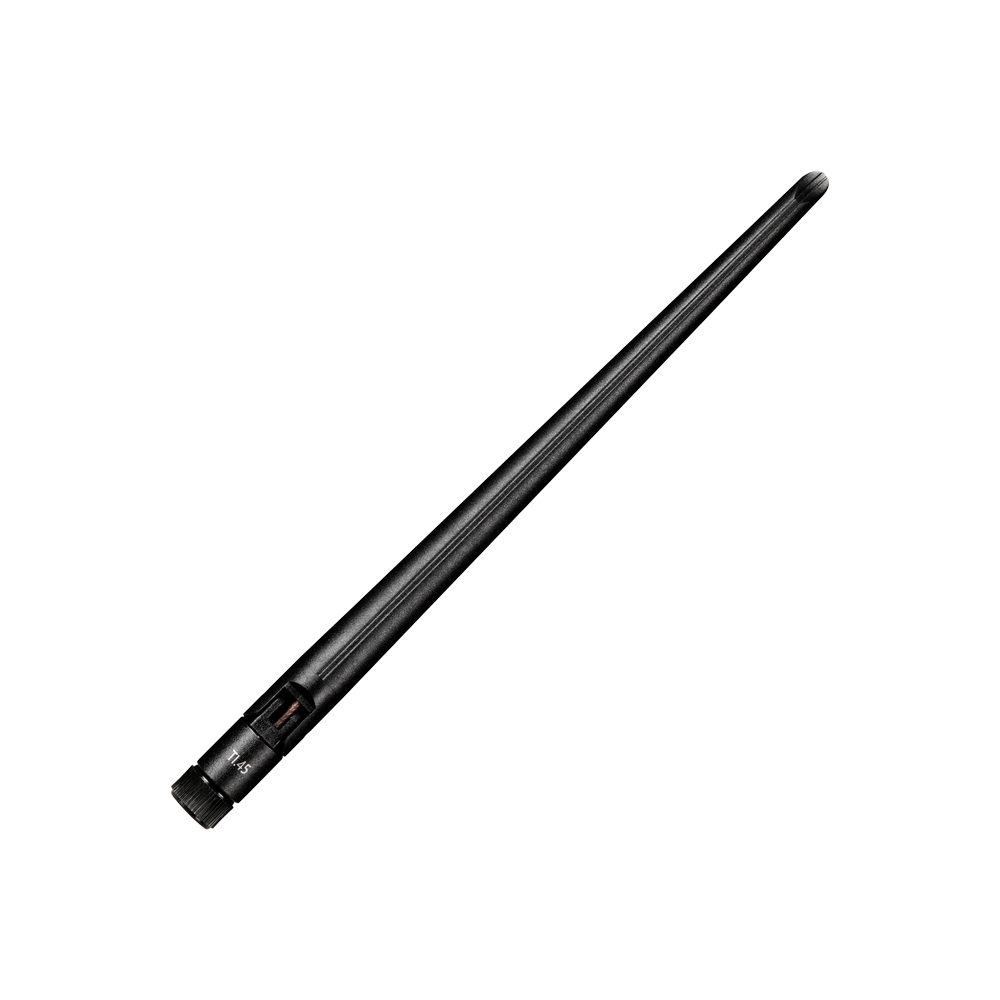

This high-performance terminal antenna covers the 440–510MHz band for reliable sub-600MHz connectivity in compact devices. Its hinged, swivel design enables flexible positioning (straight or right-angled) to help maintain performance when installed alongside other antennas or nearby objects.
Designed to perform well when mounted on metal enclosures, it is a strong fit for smart metering and remote monitoring hardware where rugged housings are common.
- Wide coverage: 440–510MHz ISM/UHF band support
- Flexible orientation: hinged swivel for easier device integration
- Device-friendly integration: performs well with metal enclosures
Typical applications include:
- Smart Metering
- Remote Monitoring
- Industrial IoT
- Connected Enterprise
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C - +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Dimensions: Ø13 x 198 mm
Weight: 23g
Material: PC+PBT
ISM/UHF 440-510MHz
Frequency: 440-490 MHz; 490-510 MHz
Standards: Band 31,72,73; UHF/TETRA
Impedance: 50 Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: <2
Efficiency (%): 82 (Straight), 79.4 (Bent) @ 440-490 MHz; 83.5 (Straight), 85.7 (Bent) @ 490-510 MHz
Average Gain (dB): -0.87 (Straight), -1.0 (Bent) @ 440-490 MHz; -0.78 (Straight), -0.67 (Bent) @ 490-510 MHz
Peak Gain (dBi): 3.5 (Straight), 3.4 (Bent) @ 440-490 MHz; 4.0 (Straight), 3.8 (Bent) @ 490-510 MHz
Connector Type: SMA(M)
