Description

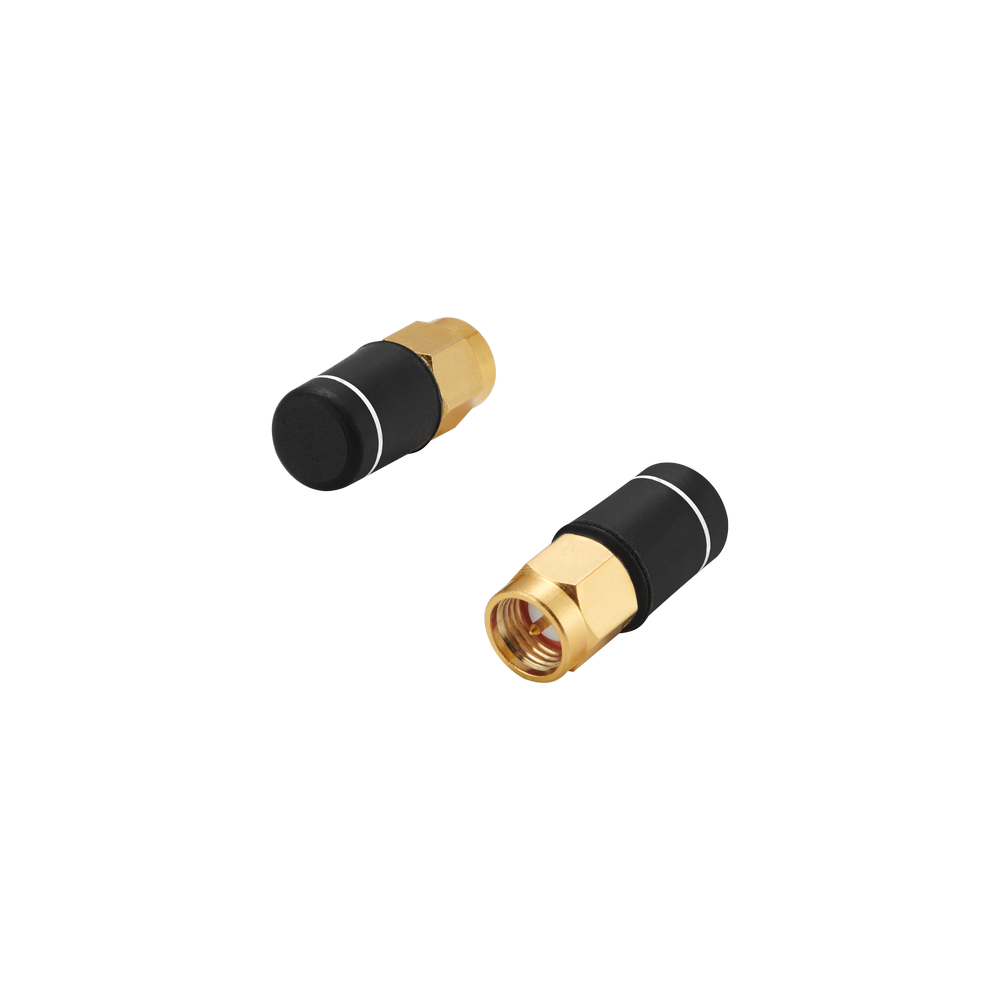

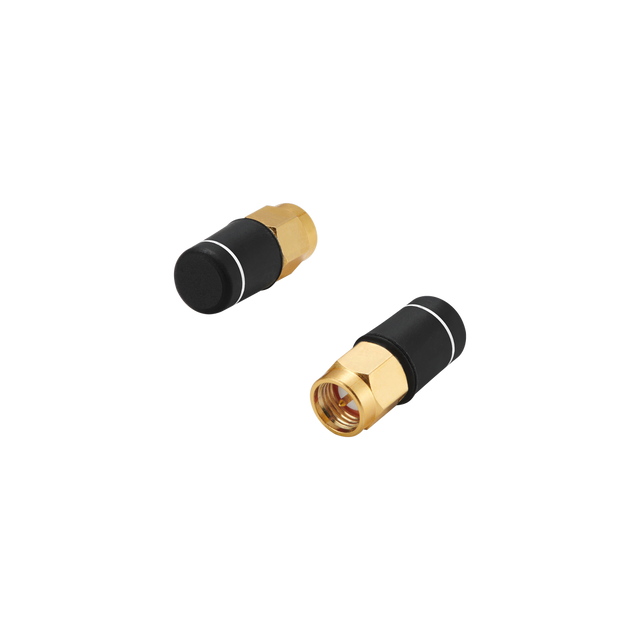

The TI.83 is a super-small, lightweight terminal antenna designed for reliable ISM/LoRa operation in the 863–873MHz band. Its robust silicone enclosure is built for harsh external environments, helping maintain dependable connectivity for IoT deployments where size, durability, and consistent RF performance matter.
- Built for demanding environments: IP67 waterproof protection for dust, dirt, and water exposure
- Compact, low-profile form factor: ideal when space is limited
- Designed for IoT connectivity: suitable for smart grid and smart monitoring deployments
Typical use cases include connecting sensors for remote agricultural monitoring, equipment in industrial settings, and infrastructure for smart cities.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Ø8.9 x 21 mm
Weight: 3.3g
ISM / LoRa
Frequency: 863-873MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.05 dBi
Radiation Pattern: Omni
Connector Type: SMA(M)
