Description

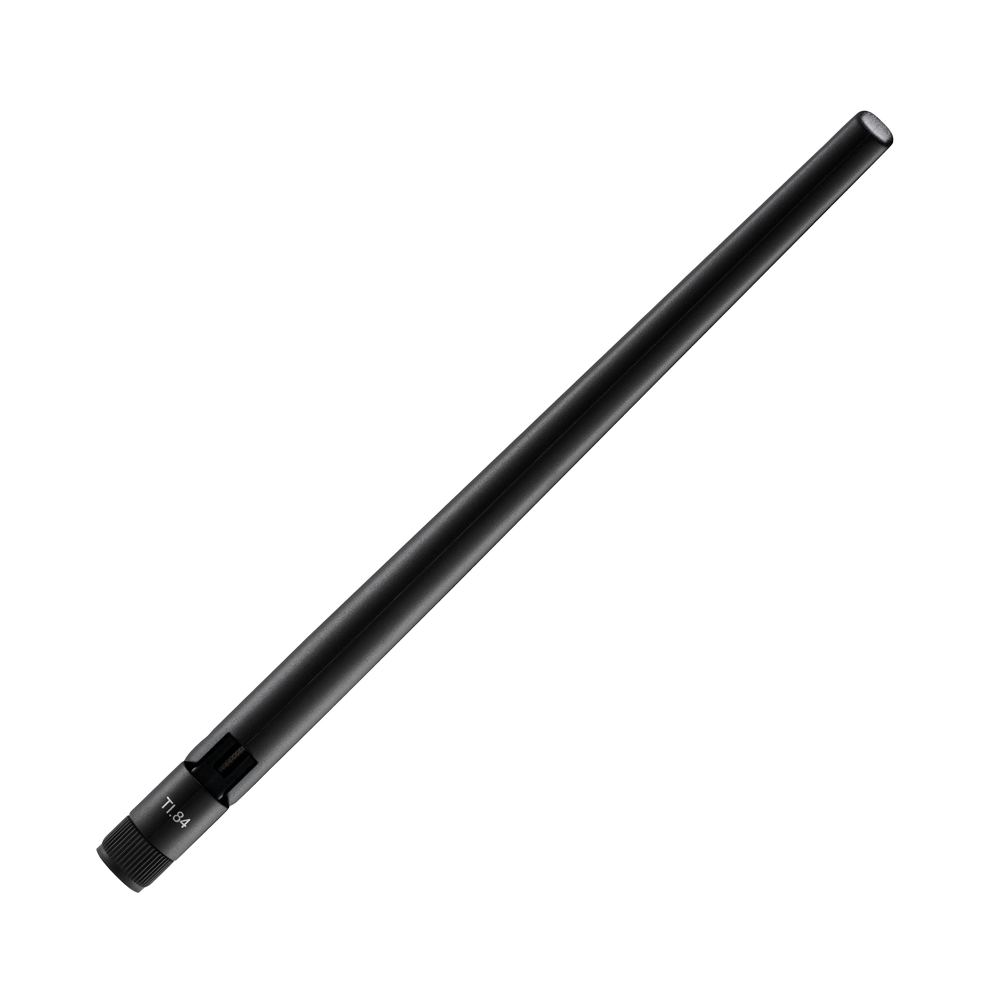

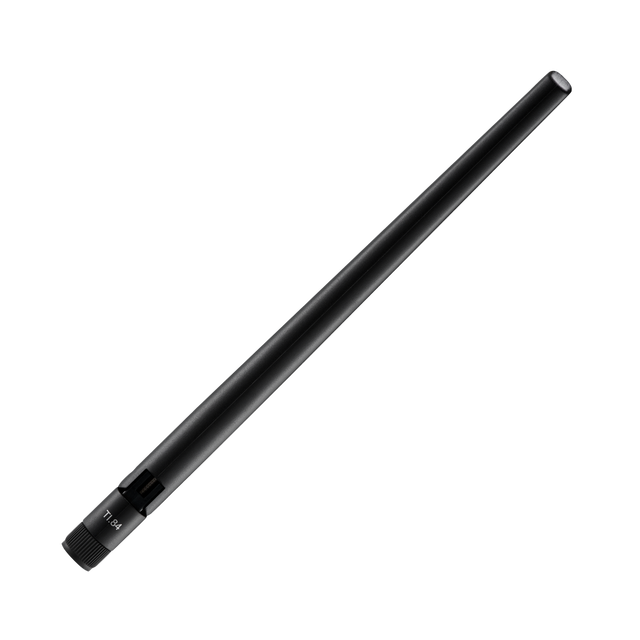

This high-performance terminal-mount antenna is designed for robust ISM/LoRa operation around the 868 MHz band, delivering reliable connectivity in devices where antenna orientation and environmental sealing are important.
The sealed enclosure helps protect against water and dust ingress, while the hinged, adjustable design makes it easier to position the antenna to reduce obstruction from nearby objects or other antennas.
Typical applications include:
- Smart Metering
- Remote Monitoring
- Industrial IoT
- Connected Enterprise
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C - +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Ø12.7 x 203 mm
Weight: 22.5g
ISM/LoRa
Frequency: 850MHz - 880MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 3.28 dBi
Radiation Pattern: Omni directional
Connector Type: SMA(M)
