Description

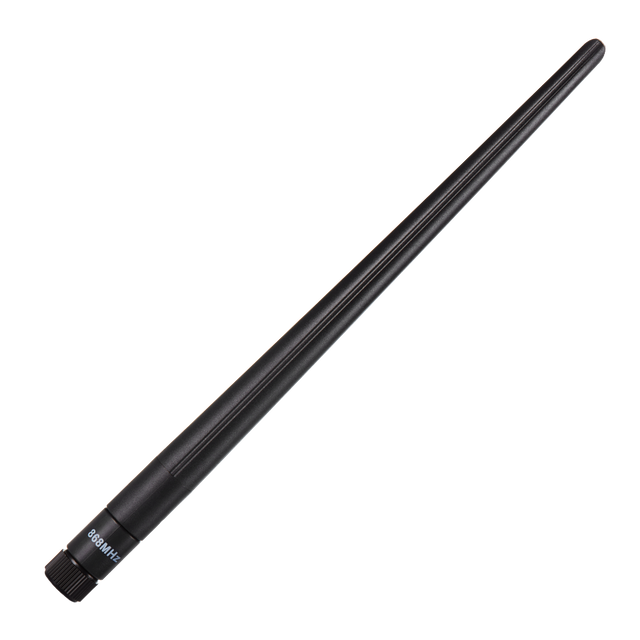

This high-performance 868MHz terminal-mount dipole antenna is designed for strong free-space performance, making it a solid choice for devices operating where a ground plane may not be available. Its hinged, swivelable design helps you orient the antenna to reduce interference from nearby objects or other antennas, while the lightweight housing supports compact device integration.
Typical applications include:
- Smart Metering
- Remote Monitoring
- Industrial IoT
- Connected Enterprise
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Type: Single
Dimensions: 198*ø13 mm
Weight: 22.5 g
ISM 868
Frequency: 860~870 MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni
Max. input power: 1W
Efficiency (%): Straight 75.17, Bent 76.72
Average Gain (dB): Straight -1.24, Bent -1.15
Peak Gain (dBi): Straight 1.31, Bent 2.04
Connector Type: SMA(M)
Connector Body Style: Hinged
Casing: TPEE
Humidity: Non-condensing 65°C 95% RH
