Description

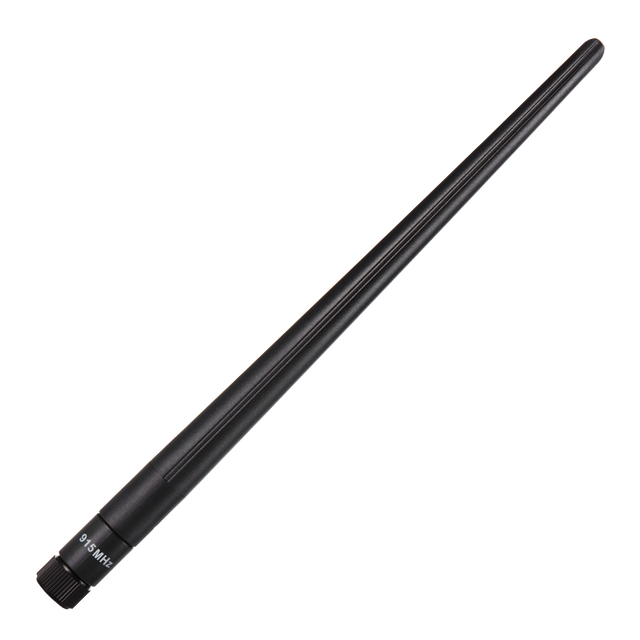

This 915MHz terminal-mount dipole antenna is designed for strong free-space performance, making it a reliable choice for devices operating in areas where a ground plane may not be available. The hinged, swivelable design helps you orient the antenna to avoid nearby antennas or obstructions.
- Optimized for the 915MHz ISM band: Suitable for sub-GHz ISM deployments including LoRa-based systems.
- High efficiency: Designed to support efficient RF performance.
- Adjustable orientation: Hinged/swivel mechanism supports straight or right-angled positioning.
Typical applications include: Smart Metering, Remote Monitoring, Industrial IoT, Connected Enterprise.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Dimensions: 198*ø13mm
Weight: 22.5 g
Casing: TPEE
Humidity: Non-condensing 65°C 95% RH
ISM 915MHz
Frequency: 902-928 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 2.9 dBi
Radiation Pattern: Omni
Max. Input Power: 1W
Connector Type: SMA(M)
