Description

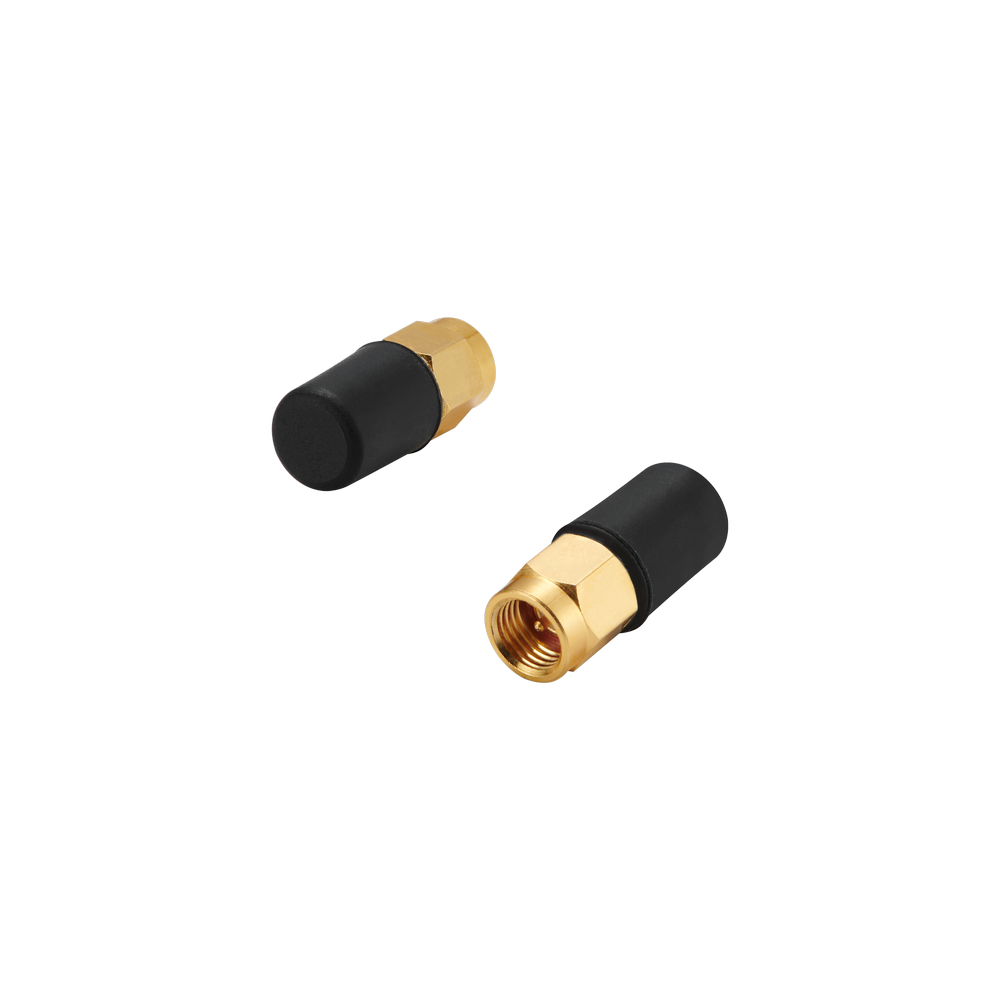

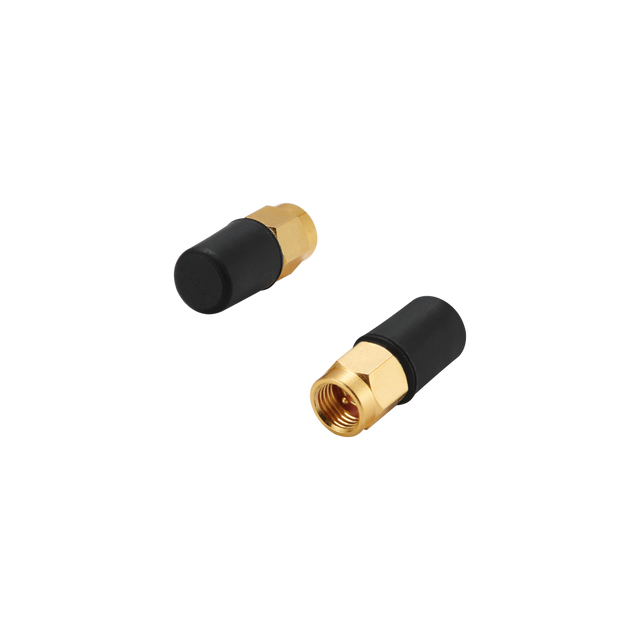

Small form factor, rugged terminal-mount antenna for 915MHz ISM/LoRa deployments. Designed for IoT devices that need reliable connectivity in harsh environments, this low-profile antenna features a durable silicone enclosure and an IP67 waterproof rating suitable for dusty, dirty, and wet conditions.
- Use cases: smart grid and smart monitoring systems
- Built for outdoor exposure: engineered for challenging external environments
- Durable design: waterproof sealing for demanding installations
If you need a compact, tough, and versatile terminal antenna for ISM/LoRa applications, this model is a strong fit. Contact your regional customer services team for project support.
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C ~ +85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
Frequency: 902MHz - 928MHz
IP Rating: IP67
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 2.06
Dimensions: Ø8.9 x 21 mm
Weight: 3.3g
Material: Silicone
Connector Type: SMA(M)
