Description

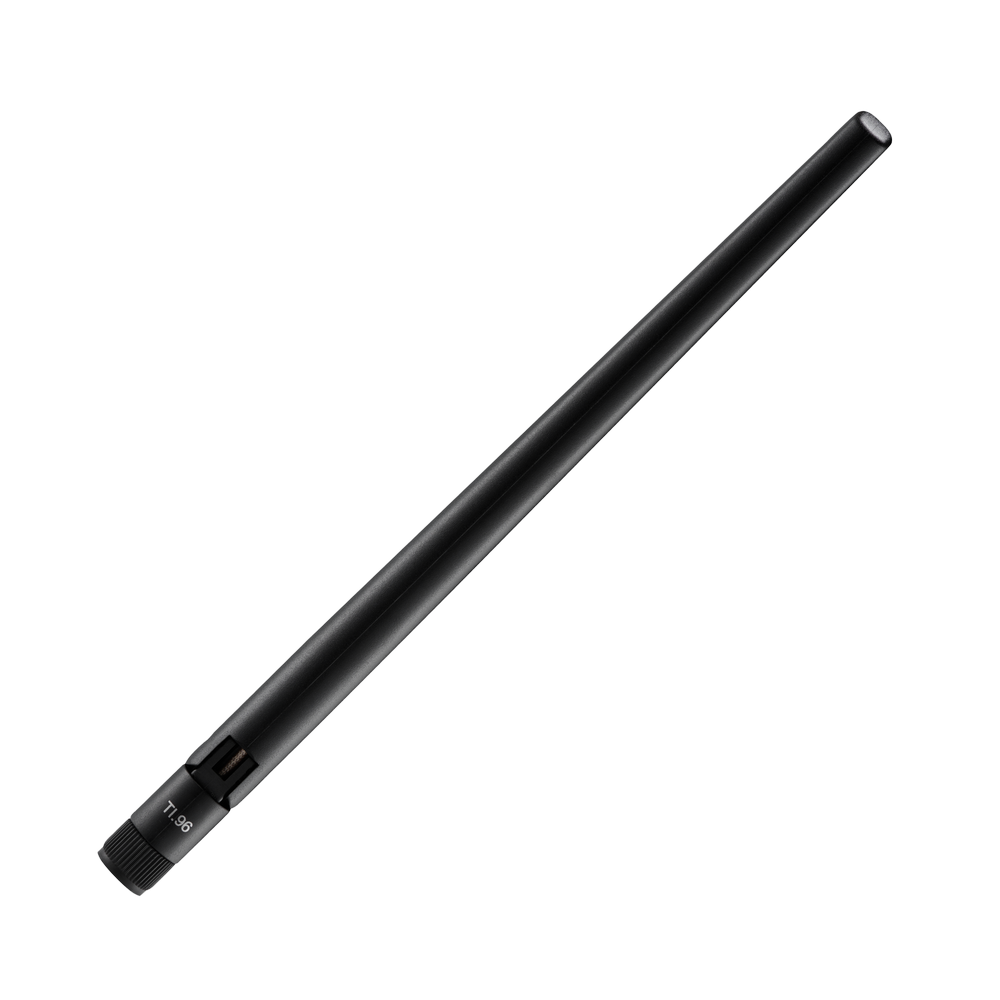

This IP67-rated terminal antenna is designed for 915MHz ISM / LoRa deployments where a durable, weather-resistant external antenna is needed.
The hinged swivel design allows straight or right-angle positioning to help with clearance and orientation, and it performs well in free space—making it a strong option for devices that may not have an effective ground plane.
Typical applications include:
- Smart Metering
- Remote Monitoring
- Industrial IoT
- Connected Enterprise
Connector & Cable
- Connector Type: SMA-Male Connector
Technical Specifications
Operating Temperature: -40°C - +85°C
Antenna Technologies: Dipole
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Terminal Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Ø12.7 x 203 mm
Weight: 22.5g
ISM / LoRa (915MHz)
Frequency: 900MHz - 940MHz
Tested Band: 902-928MHz (915 ISM)
Impedance: 50 Ω
Polarization: Linear
VSWR: <2
Gain (Max): 3.11 dBi
Radiation Pattern: Omni
Connector Type: SMA(M)
Cable Length: n/a
