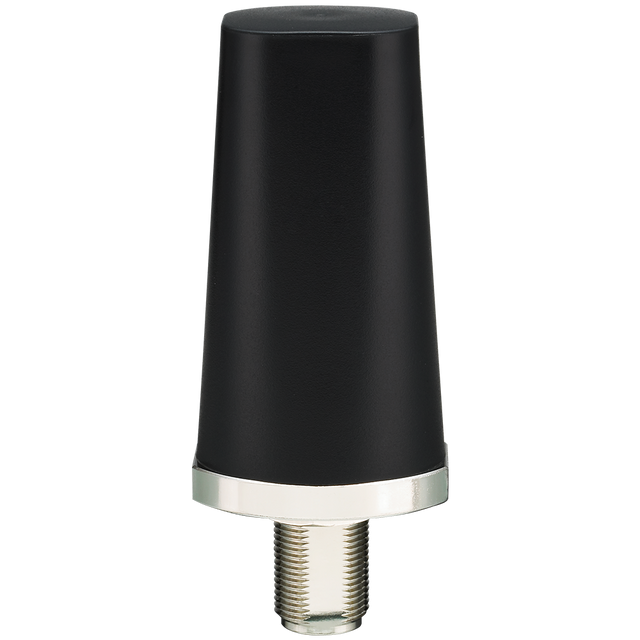

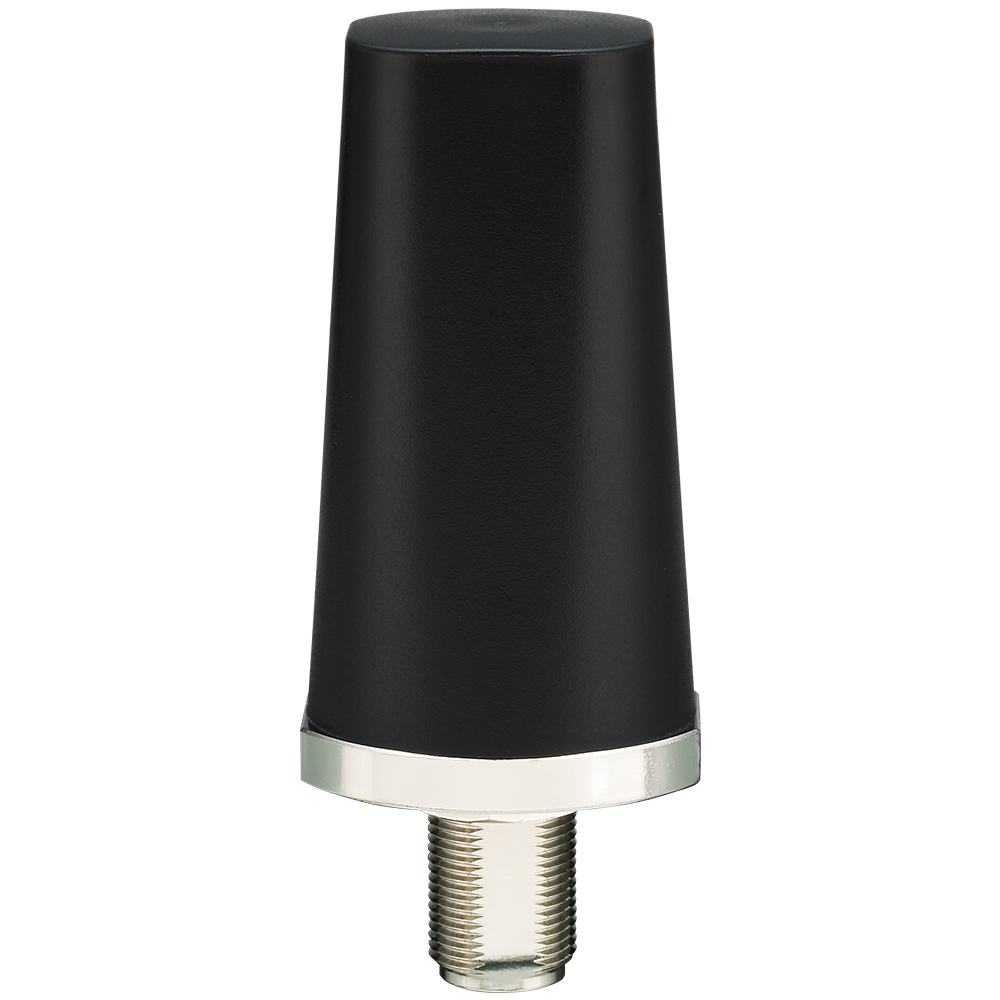

TLS.01.1F21 Antenna External Outdoor 5G, 4G/LTE direct mount terminal Shockwave N-Type(F) IP67 for Public safety, HD Video Streaming, Utilities and Smart Cities, Fleet Management

Shockwave is a rugged wideband terminal antenna designed for external, permanent installations where reliable cellular connectivity is required across a broad frequency range.

• Wideband coverage: supports cellular operation across 600–6000MHz
• Built for demanding environments: mechanically robust design suited to indoor and harsh outdoor use
• Consistent performance: engineered for stable radiation patterns and strong real-world connectivity when installed on an appropriate ground plane
• Ideal use cases: Public safety, HD Video Streaming, Utilities and Smart Cities, Fleet Management, Agricultural, Industrial

Connector & Cable

• Connector Type: N-Type Female Connector

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat M, NB-IoT
Mounting: Direct Mount
Type: Single
IP Rating: IP67
Dimensions: Height: 79.45mm(3.13) ; Diameter : 42mm(1.65)
Weight: 130g
Housing Rating: IK10
Humidity: Non-condensing 65°C 95% RH

5G/4G Cellular Wideband

Frequency: 600MHz - 6000MHz
Impedance: 50 Ω
VSWR: 2:1
Polarization: Vertical
Radiation Pattern: Omni-Directional
Max Input Power: 100W
Gain (Max): -1.38
Connector Type: Direct Mount N type (F)
