Description

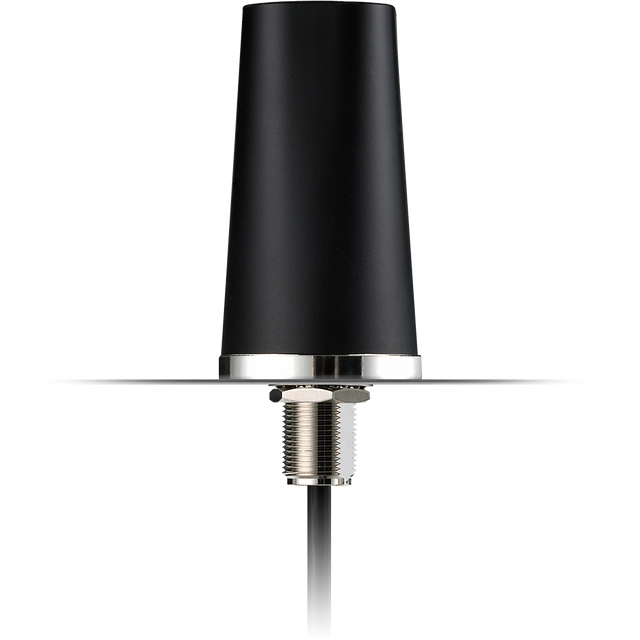

Shockwave TLS.01 is a mechanically robust, waterproof, permanent-mount external wideband cellular antenna designed for mobile and fixed deployments. It supports wide coverage across key cellular bands, helping deliver reliable connectivity in demanding environments.
The design provides stable, low-angle radiation for consistent horizontal-plane performance, making it well-suited for vehicle, infrastructure, and industrial connectivity use cases. A base indent allows a wrench to securely lock the antenna in place while tightening the mounting hardware underneath, and sealing O-rings help prevent water ingress at the mounting surface.
Typical use cases include:
- Public safety
- HD Video Streaming
- Utilities and Smart Cities
- Fleet Management
- Agricultural
- Industrial
Connector & Cable
- Connector Type: FAKRA Code D
- Cable Length: 300cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40 C to 85 C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat M1, NB-IoT
Mounting: Direct, Permanent
Type: Single
IP Rating: IP67
Housing Rating: IK10
Dimensions: Height: 79.45mm(3.13) ; Diameter : 42mm(1.65)
Weight: 270g
5G/4G Cellular Wideband
Frequency: 600-6000 MHz
Standards: 5GNR / FR1 / LTE / LTE-Advanced / WCDMA / HSPA / HSPA+ / TD-SCDMA / Cat M / NB-IoT
Impedance: 50 9
VSWR: 2:1
Max Input Power: 100W
Polarization: Vertical
Radiation Pattern: Omni-Directional
Efficiency / Peak Gain (by range): 617~698MHz: 43% / -1dBi; 698~806MHz: 57.7% / 3.1dBi; 824~960MHz: 71.4% / 3.2dBi; 1427~1518MHz: 56.8% / 2.9dBi; 1710~2200MHz: 45.9% / 2.7dBi; 2490~2690MHz: 42.9% / 3.4dBi; 3300~5000MHz: 26.8% / 2.5dBi; 5150~5925MHz: 8.9% / 5.3dBi
Connector Type: FAKRA Code D
Cable Length: 300cm
Cable Type: TGC-200
