Description

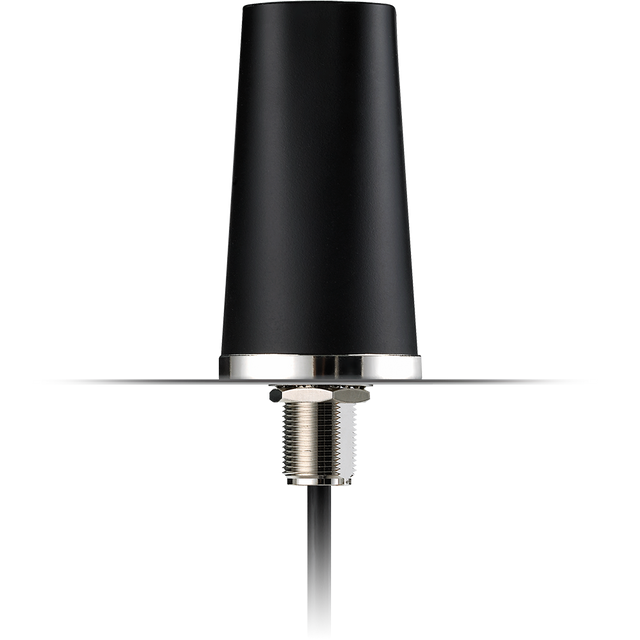

Shockwave TLS.20.105111 is a mechanically robust, waterproof external antenna designed for 450–470MHz operation. Built for reliable performance in demanding environments, it is well-suited for installations where consistent omnidirectional coverage is required.
- Rugged outdoor-ready design: Waterproof construction with sealing features to help prevent water ingress beneath the antenna base.
- Stable low-angle radiation: Designed to support consistent horizontal-plane coverage for hotspot and mesh-style deployments.
- Ground-plane use: Intended to be installed on a ground plane for best performance.
Common applications include: Public safety, Smart meters, Mesh networks, Transportation.
Connector & Cable
- Connector Type: SMA(M)
- Cable Length: 100cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Direct Mount
Type: Single
IP Rating: IP67
Dimensions: Height: 79.45mm(3.13) ; Diameter : 42mm(1.65)
Weight: 205g
ISM/LoRa (450-470MHz)
Frequency: 450MHz - 470MHz
Standards: ISM/LoRA, CDMA450
Impedance: 50 Ω
VSWR: 2:1
Polarization: Vertical
Radiation Property: Omni-Directional
Max Input Power: 100 W
Gain (Max): -1.19 dBi
Efficiency (%): 45.50 (450MHz), 54.28 (460MHz), 53.34 (470MHz)
Peak Gain (dBi): -1.33 (450MHz), -0.71 (460MHz), -0.79 (470MHz)
Average Gain (dBi): -3.23 (450MHz), -2.65 (460MHz), -2.72 (470MHz)
Return Loss (dB): < -5
Connector Type: SMA(M)
Cable Length: 100cm
Cable Type: TGC-200
