Description

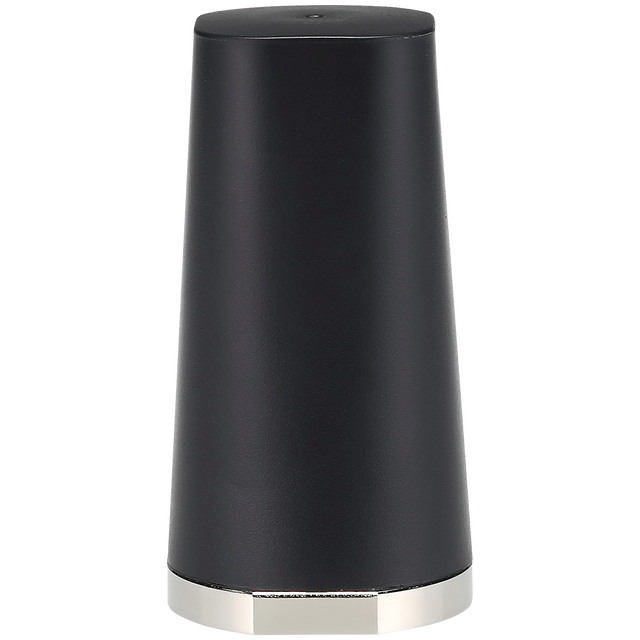

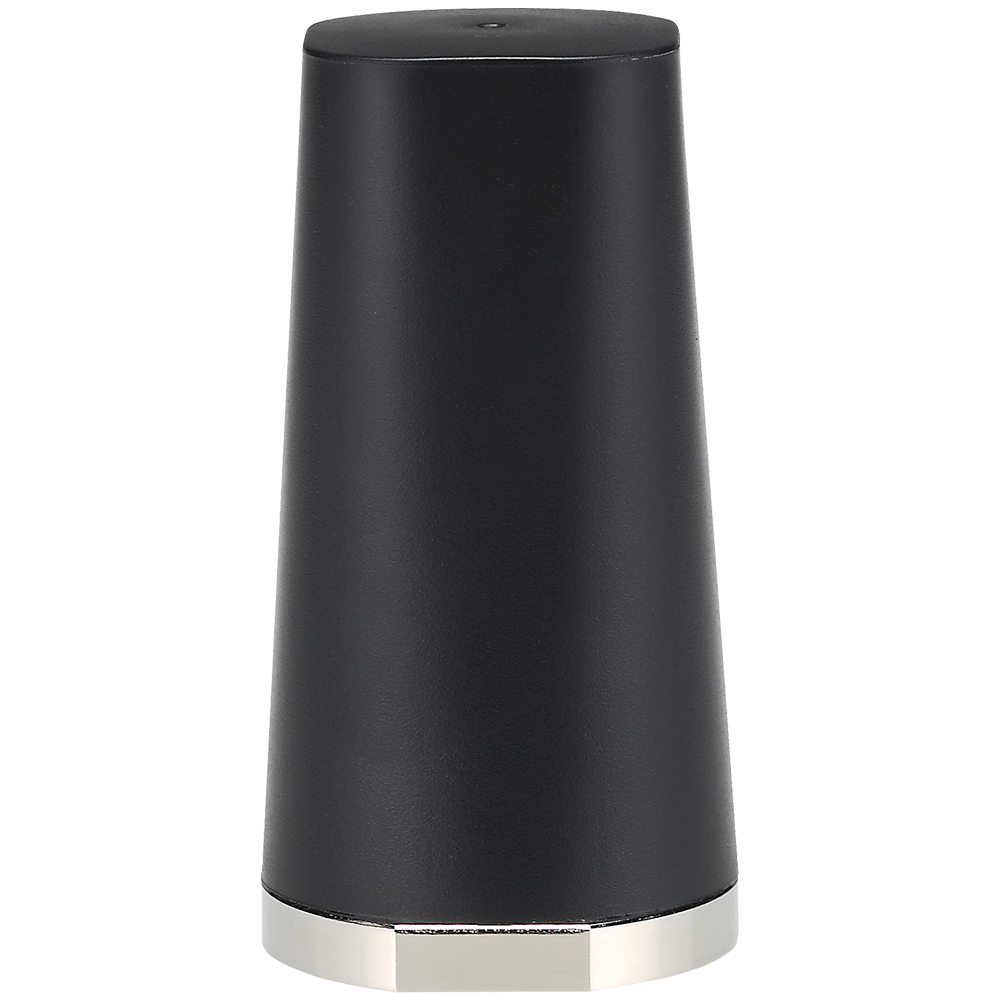

Shockwave TLS.20.1F11 is a mechanically robust, waterproof external terminal antenna designed for dependable UHF performance across the 450–470MHz band. Its stable omni-directional radiation pattern at low elevation angles helps maintain consistent coverage, making it well suited for harsh outdoor deployments and fixed installations.
Sealing O-rings help prevent water ingress beneath the base, and an indent tab allows the antenna to be firmly tightened using a wrench for a secure, long-term installation.
Common applications include:
- Public safety
- Smart meters
- Mesh networks
- Transportation
Connector & Cable
- Connector Type: N-Type Male (N-Type(M))
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Permanent Mount, Direct
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Height: 79.45mm(3.13) ; Diameter : 42mm(1.65)
Weight: 130g
ISM/LoRa (450MHz - 470MHz)
Frequency: 450MHz - 470MHz
Standards: CDMA450
Impedance: 50 Ω
VSWR: 2:1
Return Loss (dB): < -3
Polarization: Vertical
Radiation Property: Omni-Directional
Max Input Power: 100 W
Gain (Max): -1.16 dBi
Connector Type: N type (M)
