Description

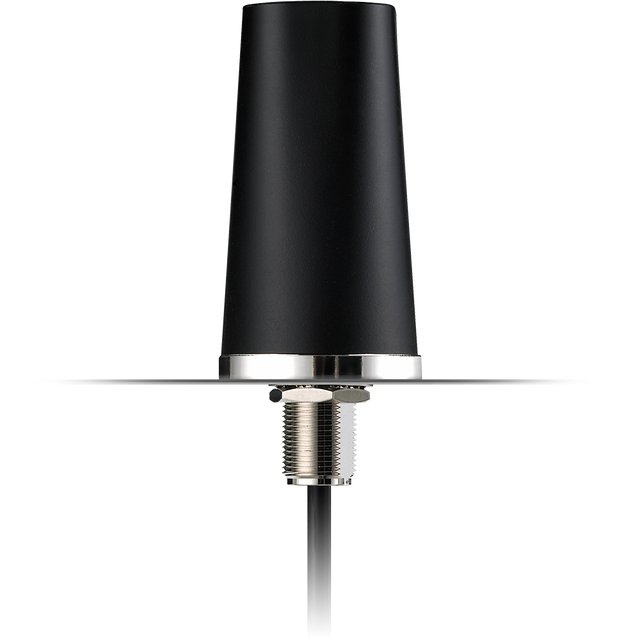

Shockwave TLS.30 is a mechanically robust, waterproof external antenna designed for the 433MHz ISM band. It delivers stable, low-angle omnidirectional performance to support consistent coverage, making it well-suited to harsh indoor/outdoor deployments.
- Reliable 433MHz ISM performance for unlicensed band deployments
- Mechanically robust, waterproof design for demanding environments
- Stable radiation patterns to help maintain consistent horizontal-plane coverage
Common applications include:
- Mesh networks
- Indoor/outdoor asset monitoring
- Security systems
- Remote control systems
- Heavy-duty equipment/vehicle communication in harsh environments
Connector & Cable
- Connector Type: SMA(M)
- Cable Length: 100cm
- Cable Type: TGC-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Direct Mount, Permanent Mount
Type: Single
IP Rating: IP67
Dimensions: Height: 79.45mm (3.13) ; Diameter : 42mm(1.65)
Weight: 205g
ISM / LoRa (433MHz)
Frequency: 433 MHz
Standards: ISM433, ISM/LoRA
Impedance: 50 Ω
VSWR: 1.5:1
Return Loss (dB): < -15
Efficiency (%): 56.46%
Peak Gain (dBi): -0.54
Average Gain (dBi): -2.48
Polarization: Vertical
Radiation Property: Omni-Directional
Max Input Power: 100 W
Connector Type: SMA (M)
Cable Length: 100cm
Cable Type: TGC-200
