Description

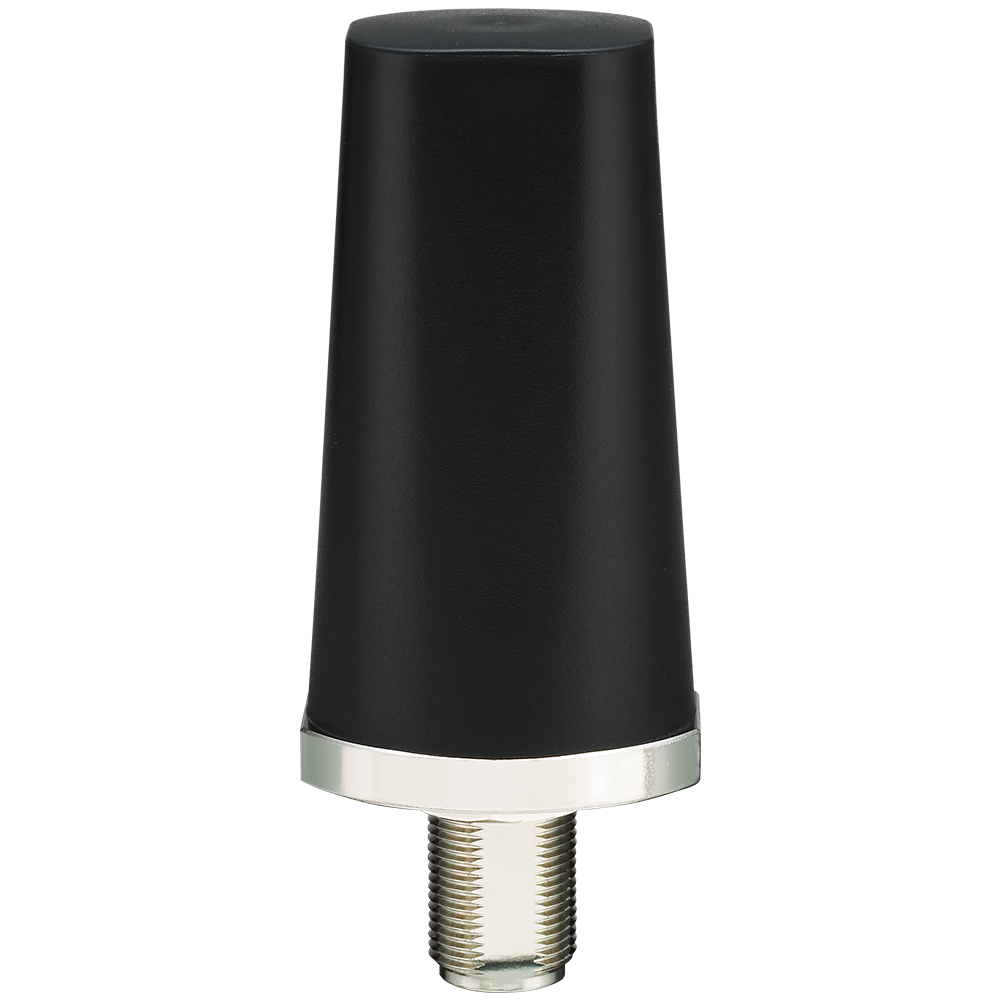

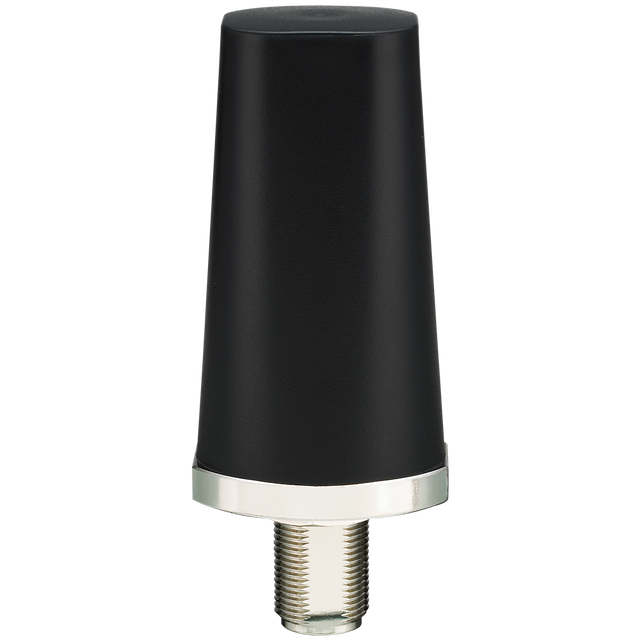

Shockwave TLS.30.1F21 is a mechanically robust, waterproof, external antenna designed for ISM 433MHz systems and intended for use on a ground plane.
It is well suited to deployments that need consistent low-angle, horizontal-plane coverage for reliable local-area connectivity.
Common applications include:
- Mesh networks
- Indoor/outdoor asset monitoring
- Security systems
- Remote control systems
- Heavy-duty equipment/vehicle communication in harsh environments
Connector & Cable
- Connector Type: N Type(F)
Installation / Environmental
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The TLS.30 antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes the antenna ideal for ISM 433MHz applications in harsh outdoor environments. Cable lengths and connector types are customizable. Contact your regional customer support team for further information.
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies:
Cellular Technologies:
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Permanent Mount
Satellite Navigation:
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Dimensions: Height: 79.45mm (3.13) ; Diameter : 42mm(1.65)
Weight: 169g
ISM 433MHz
Frequency: 433 MHz
Standards: ISM433
Efficiency (%): 55.14% (on 30 x 30 cm ground plane)
Peak Gain (dBi): -1.16
Average Gain (dBi): -2.59
Return Loss (dB): < -15
VSWR: <2
Impedance: 50 Ω
Polarization: Vertical
Radiation Property: Omni-Directional
Max Input Power: 100 W
Connector Type: N type (F)
Cable Length: n/a
