Description

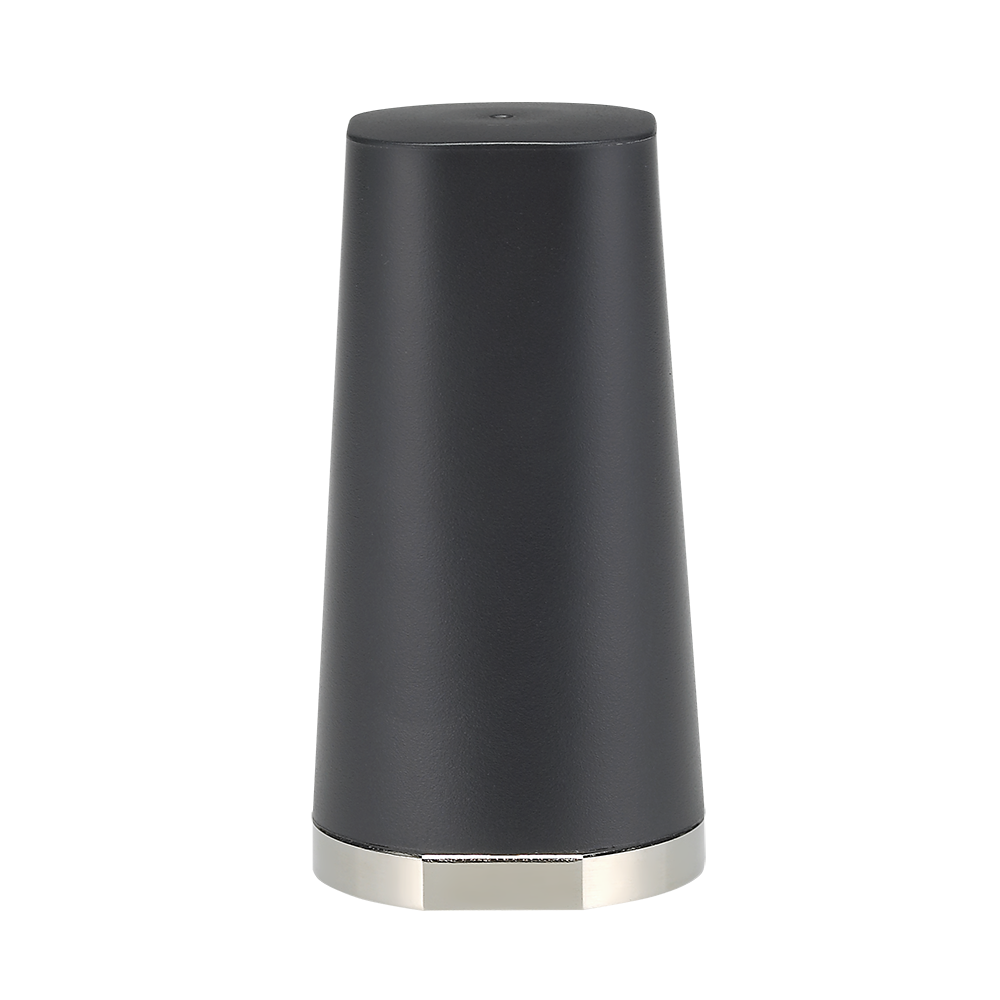

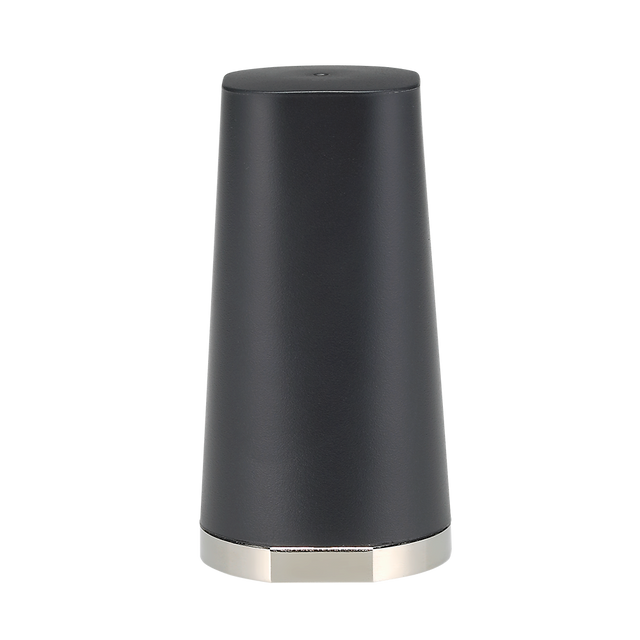

Shockwave is a direct-mount GNSS antenna designed to mount directly onto a device for reliable positioning in harsh environments. Its robust enclosure is IP67 water resistant, supporting dependable operation for demanding field deployments.
- Use cases: Transportation, Navigation, Connected Enterprise, Remote Asset Tracking
- Supports: GPS L1 and Galileo E1
- Built-in amplification: Integrated LNA for improved system sensitivity
Connections
GPS L1
Galileo E1
Connector & Cable
- Connector Type: N-Type Male
Installation / Environmental
A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location, where an N type female connector juts out from a metal panel. A waterproof O-ring around the base prevents water ingress under the antenna.
The connector is customizable subject to NRE and MOQ. For further information please contact your regional customer support team.
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
Mounting: Direct Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: 79.45 x 42 mm IP67 Waterproof Rated RoHS & REACH Compliant
Weight: 130g
GNSS (Active)
Frequency: 1575.42MHz
Standards: GPS L1, Galileo E1
GNSS Bands: L1
Polarization: Linear
Impedance: 50Ω
VSWR (max.): 2:1
Gain (Max): 25
LNA Gain@3.0V (Typ.): 25dB
Input Voltage: Min. 1.8V, Typ. 3.0V, Max. 5.5V
Efficiency (%): 27
Radiation Pattern: Omni
Connector Type: N-Type Male
