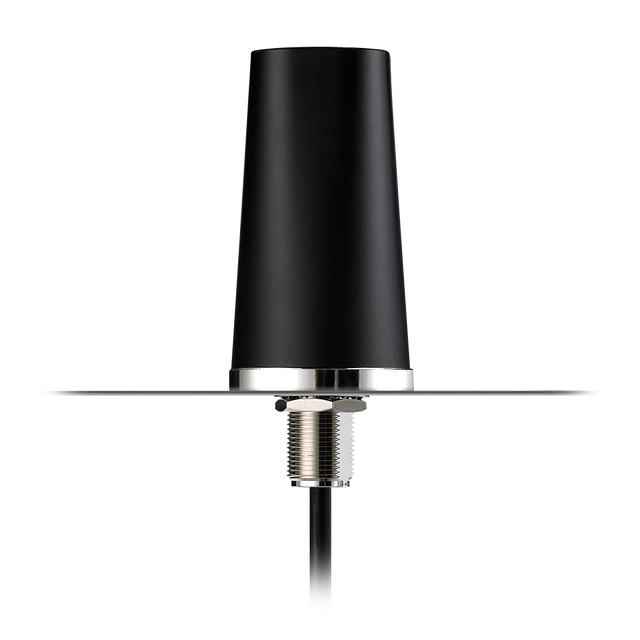

TLS.90.205111 Antenna Outdoor External ISM, LoRa permanent mount Shockwave SMA-M 200cm IP67 for Public safety, Smart meters, Mesh networks, Transportation

Shockwave 868/915MHz is a mechanically robust, waterproof external antenna designed for reliable 868MHz and 915MHz ISM/LoRa operation in demanding indoor/outdoor environments.

• Rugged, vandal-resistant design for harsh installations
• Stable, low-angle radiation patterns to support consistent horizontal coverage for mesh and hotspot-style networks
• Designed for use on a ground plane for best performance

Typical applications include:

• Public safety
• Smart meters
• Mesh networks
• Transportation

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 200cm
• Cable Type: TGC-200

Installation / Environmental

A unique indent tab on the base of the antenna allows a wrench to be used to solidly lock the antenna on top of its mounting location while tightening up the nut beneath the metal panel. Waterproof O-rings around the bottom base prevent water from leaking under the antenna. The antenna is IP67 waterproof resistant against high-pressure water jets in commercial cleaning environments, which makes it ideal for 868 & 915MHz applications in harsh outdoor environments.

The Cable and Connector are fully customizable, for more information or installation instructions please contact your regional Customer Support Team.

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Permanent Mount, Direct Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP67
Height: 79.45mm (3.13)
Base Diameter: 42mm (1.65)
Weight: 245g

ISM / LoRa (868/915MHz)

Frequency: 860MHz - 928MHz
Standards: ISM/LoRa (868MHz, 915MHz)
Polarization: Linear
Impedance: 50Ω
VSWR: <2
Return Loss (dB): < -20
Radiation Pattern: Omni-Directional
Input Power: 100W
Peak Gain (dBi): 1.58 (868MHz), 1.9 (915MHz)
Connector Type: SMA(M)
Cable Length: 200cm
Cable Type: TGC-200
