Description
This compact passive GNSS terminal antenna is designed to support GPS, GLONASS, GALILEO, and BeiDou reception in a robust, low-profile form factor. Its rotatable hinged design helps you optimize orientation for improved satellite signal reception in real-world installations.
- Multi-constellation GNSS support: GPS/GLONASS/GALILEO/BeiDou coverage for broad compatibility.
- Compact terminal form factor: Suitable for tight device integrations.
- Adjustable orientation: Hinged/rotatable design to help maximize reception.
- Built for demanding environments: Extended operating temperature capability for outdoor/field deployments.
Typical use cases include vehicle tracking devices, telematics devices, and other remote monitoring systems.
Connector & Cable
- Connector Type: SMA-M
Installation / Environmental
Antenna must have a view of the Sky

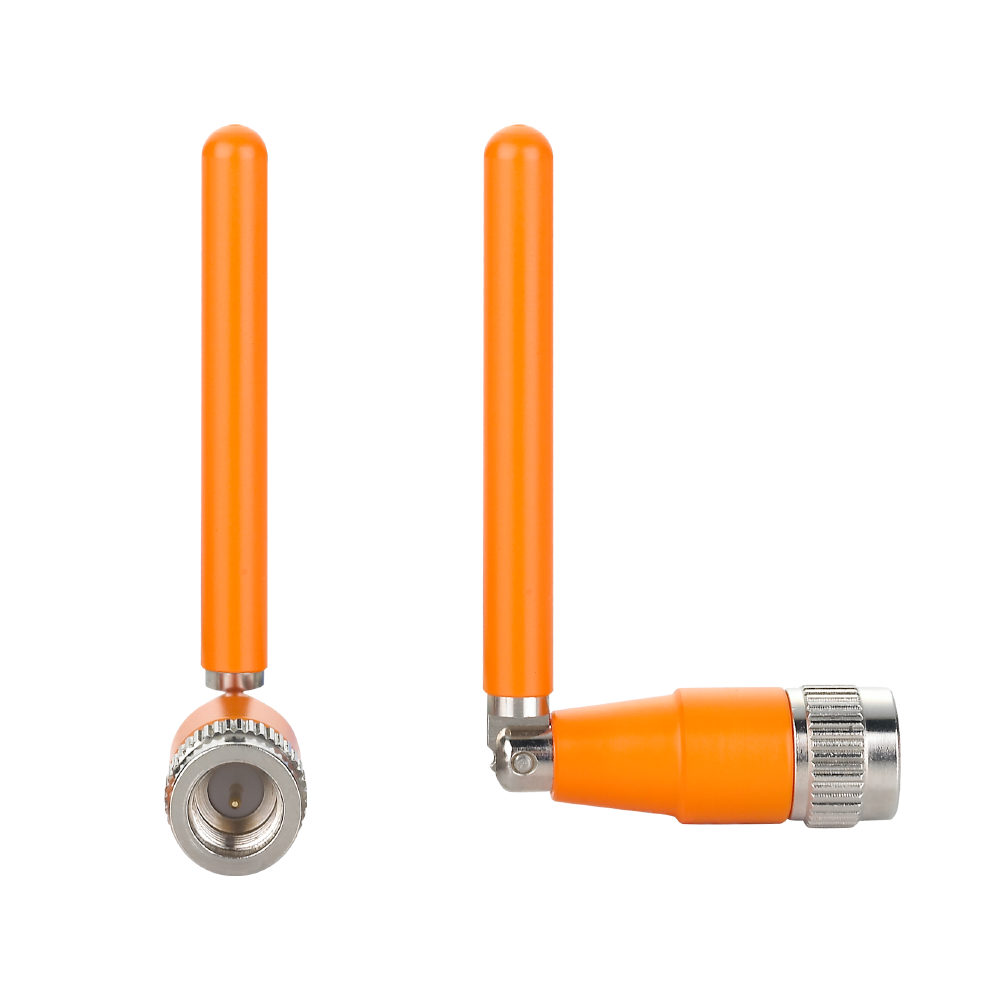

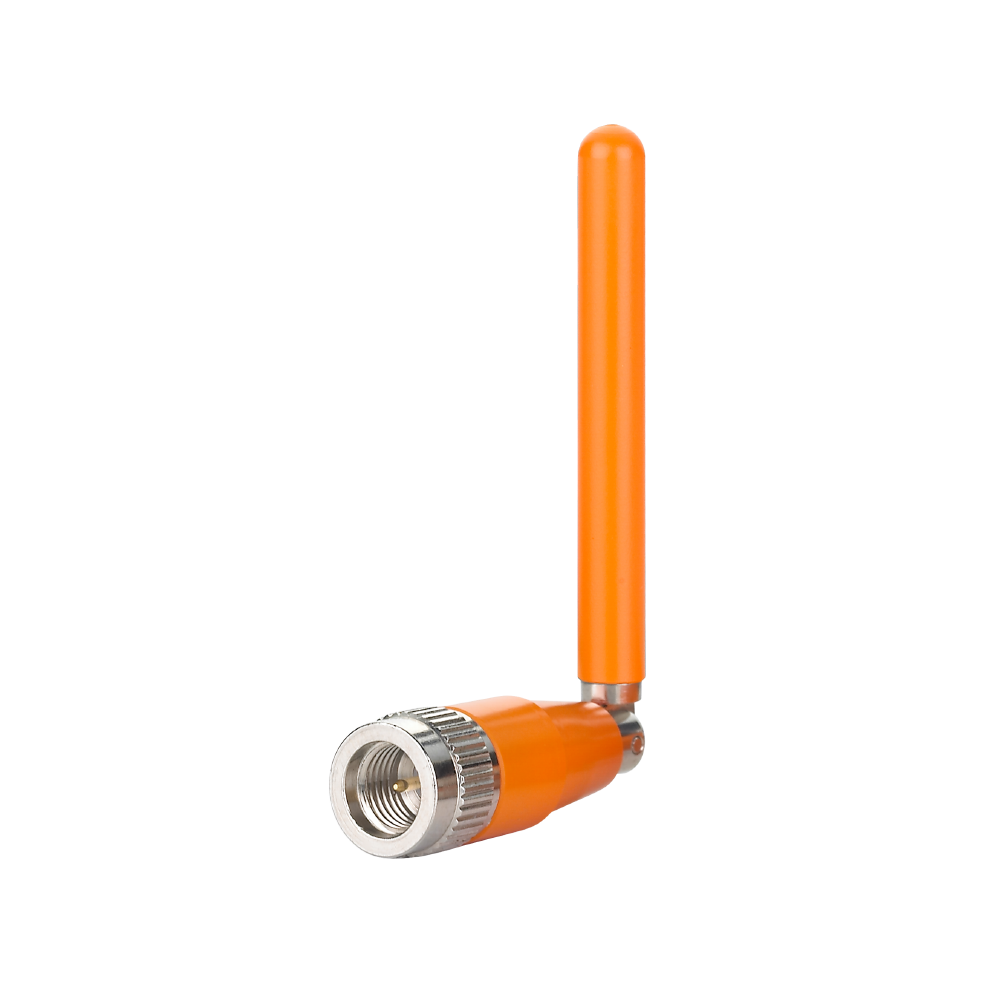

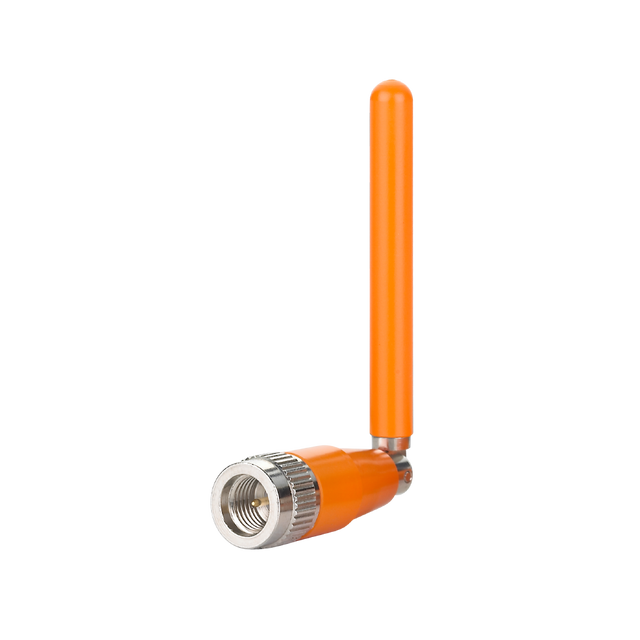

The compact TS.07, with hinged rotatable SMA connector, is an impressively high efficiency monopole antenna, providing coverage among GPS, GLONASS, GAILEO, and BeiDou frequencies.
With its navigation system frequency range, plus compact design, TS.07 can fit and function perfectly with vehicle tracking devices, telematics devices, and other remote monitoring systems.
This 72mm long monopole antenna performs efficiently from 1561 MHz to 1610 MHz, covering GPS, GLONASS, GAILEO, and BeiDou frequencies. When connected to the device ground-plane, the TS.07 is capable of achieving more than 70% efficiency.
The TS.07, as all monopole antennas, works best when connected directly to the ground-plane of the device main-board or the device's metal enclosure. As with all passive antennas, using a coax with more than ~1.5 dB of loss will result in reduced receiver sensitivity. Taoglas recommends connecting the TS.07 directly to the device ground-plane for best performance.
The robust brass hinge enables the TS.07 to be oriented in all directions, providing user to maximize performance with minimum effort.
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal
Satellite Navigation: GNSS
Type: Single
Dimensions: H: 72mm, Ø: 10mm
Weight: 6g
GNSS (Passive)
Frequency: 1559-1610 MHz
Standards: GPS/GLONASS/GALILEO/BeiDou
GNSS Bands: L1
Impedance: 50 Ω
VSWR: 2:1
Polarization: Linear
Gain (Max): 4
Connector Type: SMA-M
