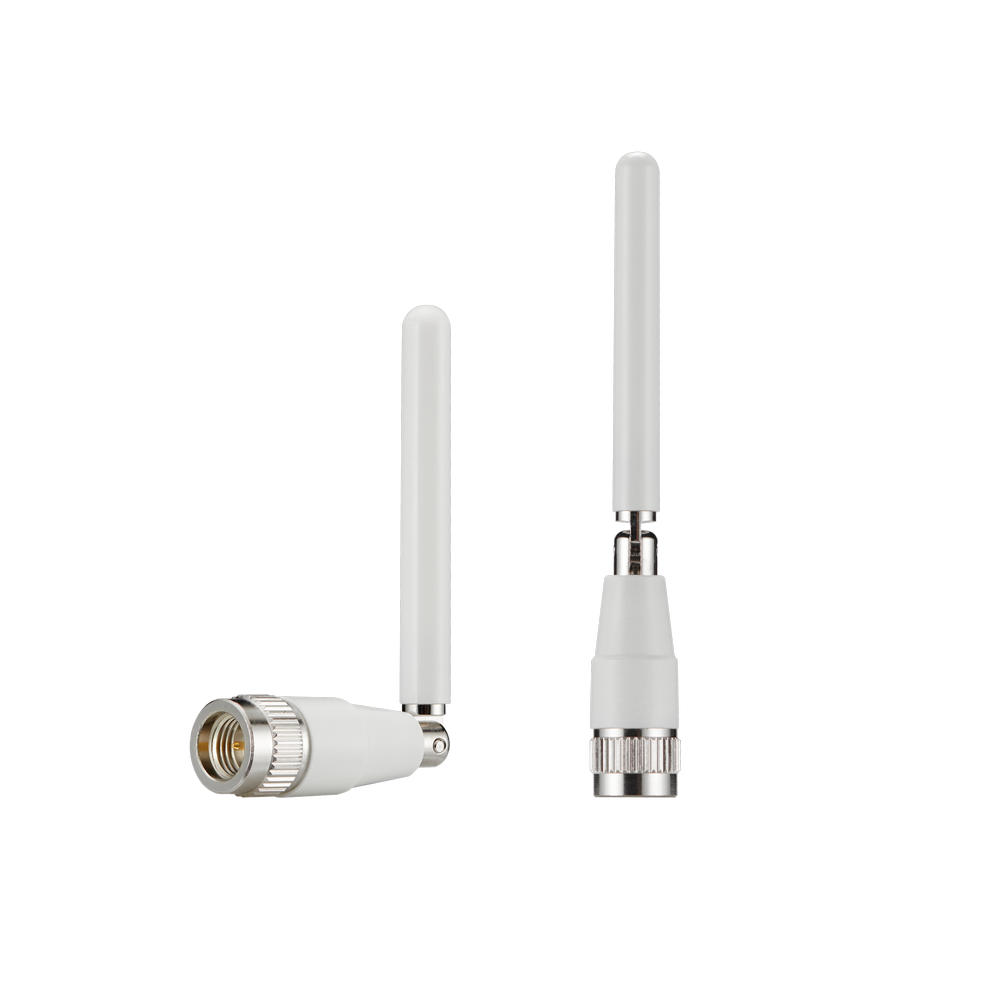

TS.07.0113W Antenna External GNSS terminal hinged SMA-M

This compact, high-efficiency GNSS terminal antenna is designed to support reliable satellite navigation reception across GPS, GLONASS, Galileo, and BeiDou. Its rotatable hinged design helps optimize orientation for improved reception in space-constrained devices.

• Multi-constellation GNSS support: GPS/GLONASS/Galileo/BeiDou coverage in the L1 band.
• Compact terminal form factor: Suitable for small tracking and monitoring devices.
• Adjustable orientation: Hinged, rotatable body helps fine-tune antenna positioning.

Typical use cases: vehicle tracking devices, telematics devices, and other remote monitoring systems.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: Monopole
Location: External
Mounting: Terminal
Satellite Navigation: GNSS
Type: Single
Dimensions: Ø10 x 72 mm
Weight: 6g

GNSS (Passive)

Frequency: 1559MHz - 1610MHz
GNSS Bands: L1
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 4.37 dBi
Connector Type: SMA(M)

Download Datasheet PDF
