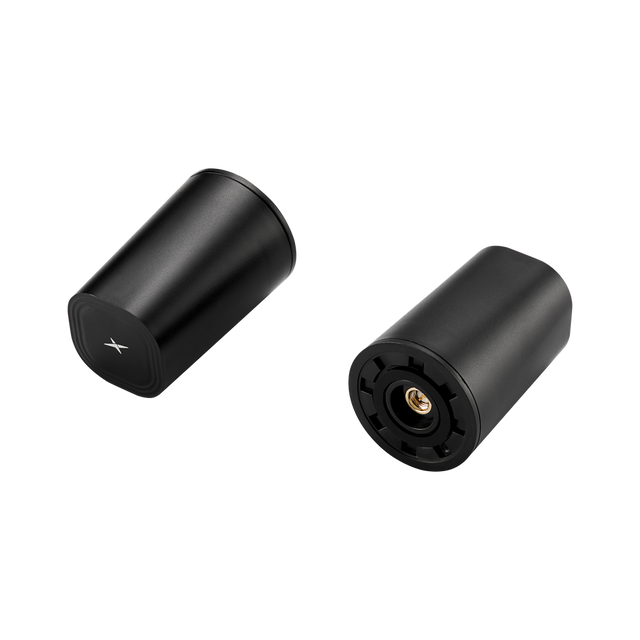

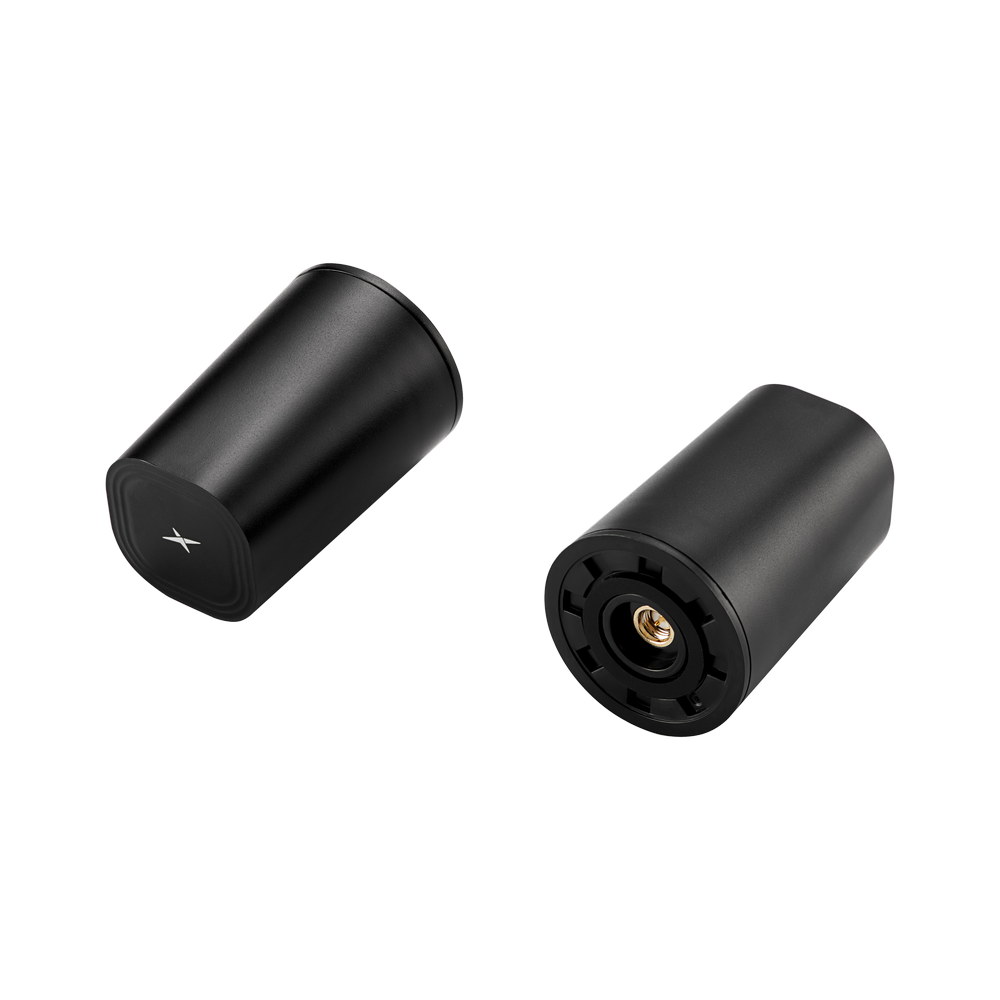

TS.125.0111 Antenna External GNSS direct mount Accura SMA-M IP67 for UAVs and Robotics, Autonomous Vehicles, Precision Agriculture, Telematics and Navigation

Accura TS.125.0111 is a compact, lightweight, high-performance active multi-band GNSS direct-mount antenna designed for reliable positioning in challenging environments. It supports multiple GNSS constellations and is engineered to also cover L-Band used by modern GNSS correction services.

Integrated filtering and low-noise amplification help improve out-of-band interference rejection and maintain stable performance for dependable GNSS fixes in weaker-signal areas.

• Multi-constellation GNSS support (GPS, Galileo, GLONASS, BeiDou and more)
• Active design with filtering and LNA for improved reception robustness
• Rugged sealed enclosure for demanding environments
• Lightweight form factor for space- and weight-sensitive platforms

Typical applications include UAVs and Robotics, Autonomous Vehicles, Precision Agriculture, Telematics and Navigation, and High Accuracy Positioning and RTK Systems.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Location: External
Mounting: Direct Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Waterproof: IPX7 (when mounted)
Dimensions: Ø40 x 58 mm
Weight: 33.8g
Material: ABS

GNSS (Active)

Frequency: 1176.45-1603 MHz, 1542 MHz
GNSS Bands: L1/L2/L5/L-Band
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 32.1
Voltage Range: +2.0 - +5.5V
Current Draw: 7 - 13mA
Connector Type: SMA(M)
