Description

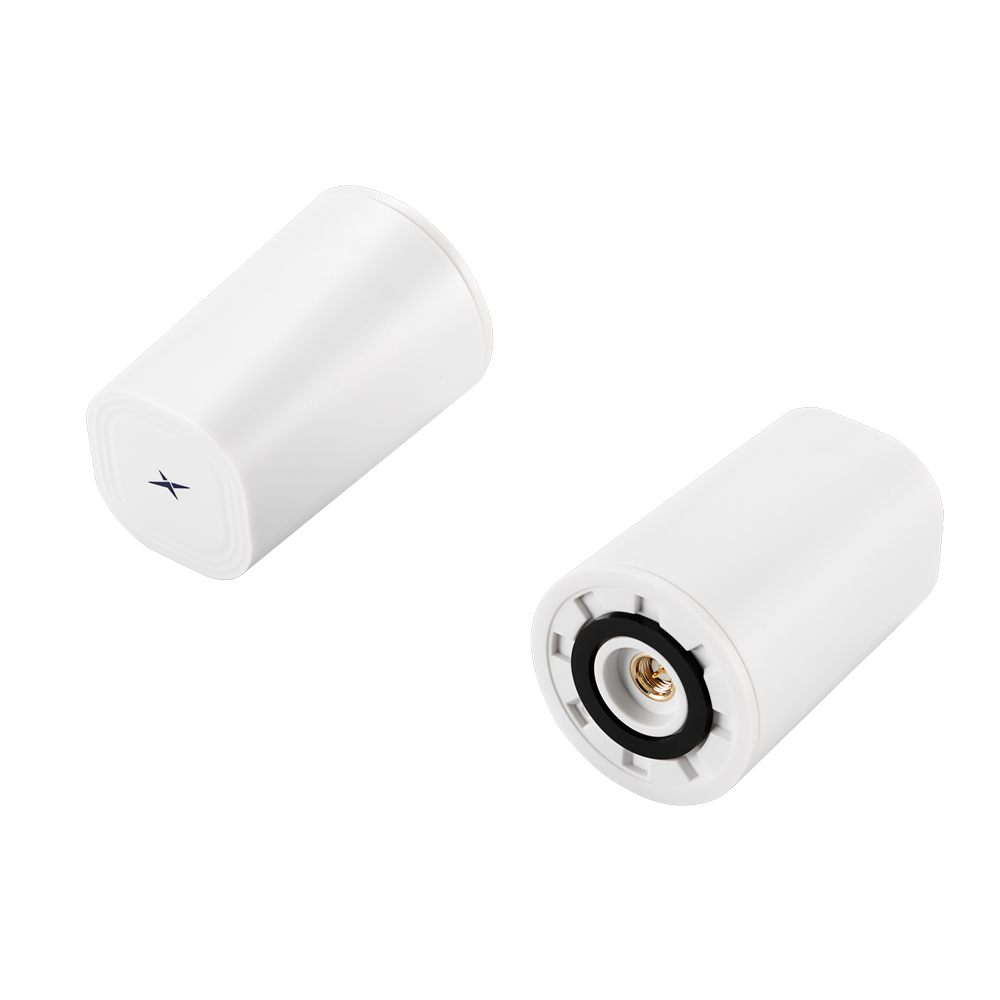

Accura series multiband active GNSS antenna designed for compact, lightweight, high-performance positioning. It supports major GNSS constellations and is engineered to support L-Band correction services, helping deliver reliable fixes in challenging RF environments.
- Multiband GNSS + L-Band support for modern high-accuracy positioning workflows
- Active design with filtering and amplification to improve rejection of out-of-band interference
- Rugged sealed enclosure intended for harsh environments
- Ideal for precision navigation and RTK-enabled systems
Typical applications:
- UAVs and Robotics
- Autonomous Vehicles
- Precision Agriculture
- Telematics and Navigation
- High Accuracy Positioning and RTK Systems
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Direct Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø40 x 58 mm
Weight: 33.8g
GNSS (Active) + L-Band
Frequency: 1176.45-1603 MHz
GNSS Bands: L1/L2/L5/L-Band
Standards: GPS (L1, L2, L5), Galileo (E1, E5a, E5b), GLONASS (G1, G2, G3), BeiDou (B1C, B1I, B2a, B2b), L-Band correction services
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 32.1
Connector Type: SMA(M)
