Description

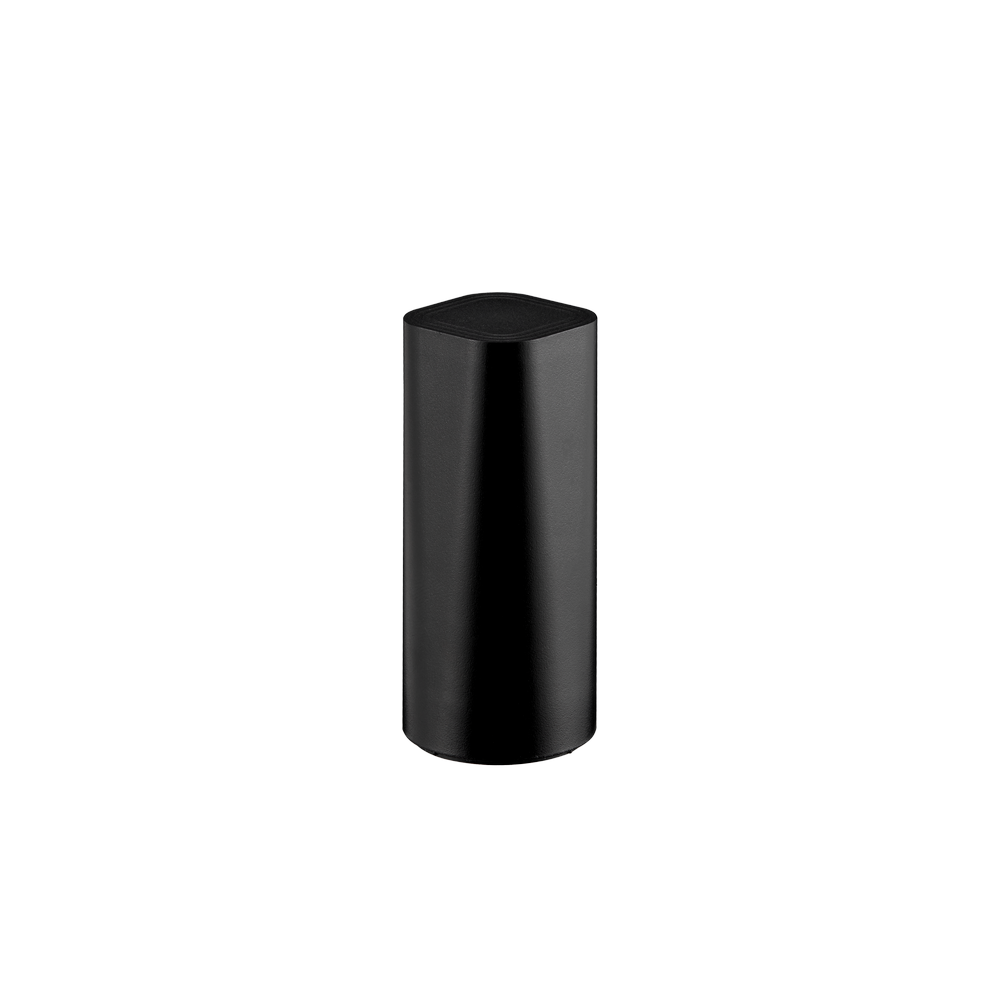

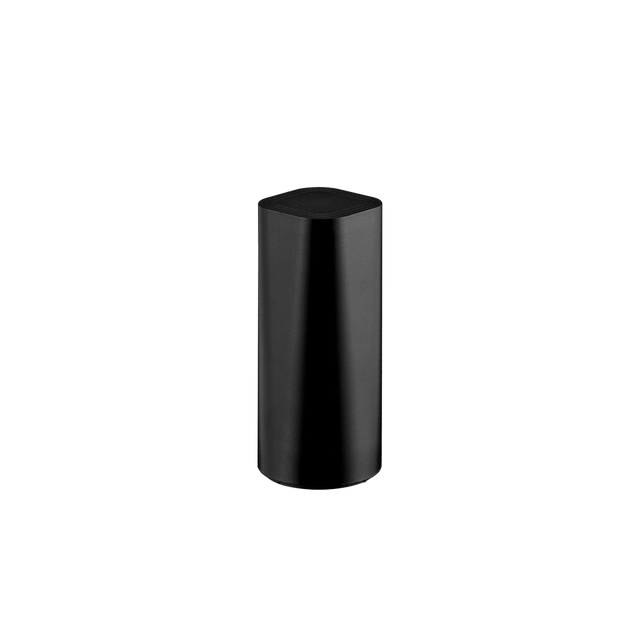

TS.15.0111 Accura is a small, lightweight, high-performance passive GNSS direct-mount antenna designed for reliable positioning in harsh environments. It supports key satellite navigation constellations and is engineered to also cover L-Band used in modern GNSS correction services.
- Rugged, waterproof housing: Designed to withstand demanding outdoor and industrial conditions.
- Reliable positioning performance: Suitable for continuous tracking and navigation use cases.
- Secure direct-mount design: Built for a stable, dependable physical installation.
- Use cases: Transportation, navigation, connected robotics, UAVs, and remote asset tracking.
For installations where a surface or magnetic mount is preferred, the antenna can be used with the MMB.A.TS mounting adapter.
Connector & Cable
- Connector Type: SMA Male Connector
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Direct
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø27.25 x 60 mm
Weight: 17g
GNSS (Passive)
Frequency: 1559MHz - 1610MHz
Standards: GPS L1, GLONASS G1, Galileo E1, BeiDou B1, L-Band
GNSS Bands: L1/L-Band
Polarization: RHCP
Impedance: 50 Ω
VSWR (max.): 2:1
Gain at Zenith (dBi): 1.19 (1561MHz), 2.29 (1575.42MHz), 1.4 (1603MHz)
Efficiency (%): 52.35 (1561MHz), 56.13 (1575.42MHz), 48.58 (1603MHz)
Axial Ratio (dB): 0.49 (1561MHz), 0.77 (1575.42MHz), 0.94 (1603MHz)
Connector Type: SMA Male Connector
