Description

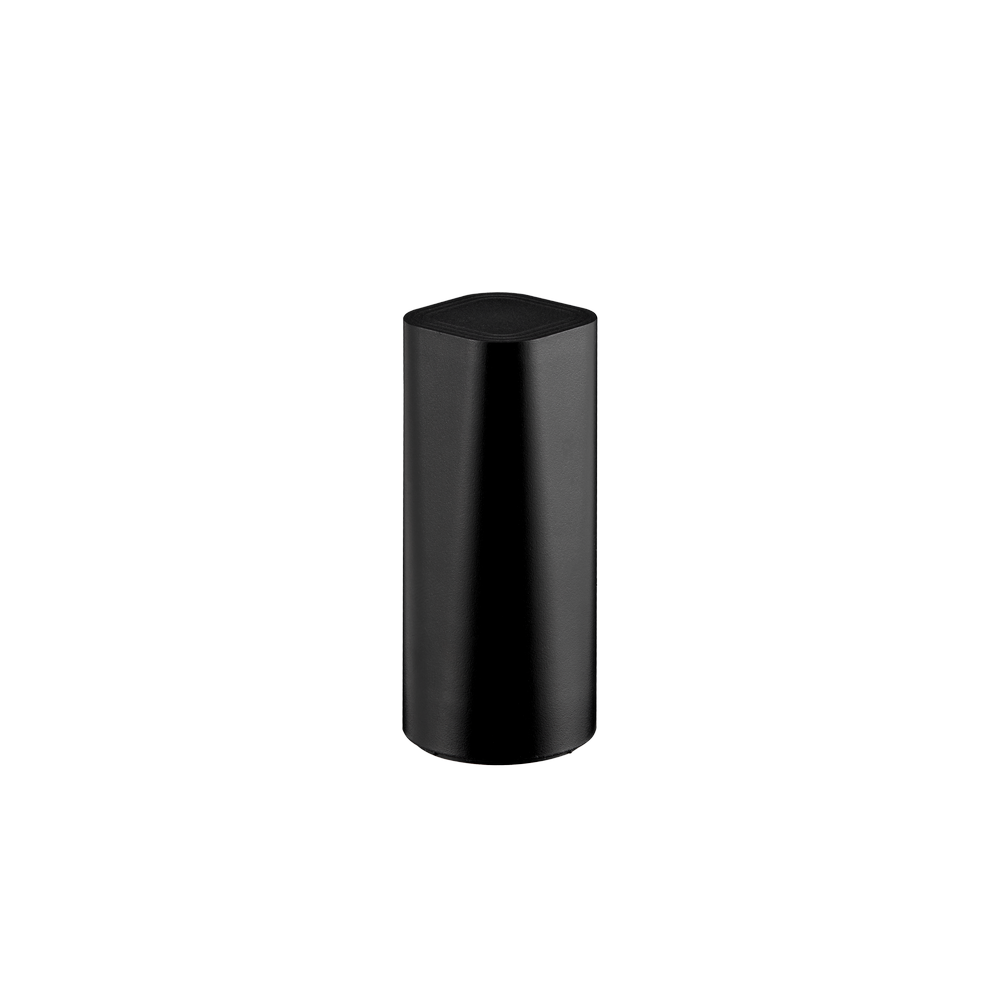

TS.16.0111 is a small, lightweight, high-performance active GNSS direct-mount antenna designed for reliable positioning in harsh environments. It supports GPS, GLONASS, Galileo, and BeiDou and is also engineered to cover the L-Band used by modern GNSS correction services.
- Rugged waterproof enclosure for challenging outdoor/industrial conditions
- Active GNSS performance for improved reception and reliability
- Secure direct-mount design intended for a solid, dependable connection
- Ideal for: transportation, navigation, connected robotics, UAVs, and remote asset tracking
For installations where a surface or magnetic mount is preferred, the antenna can be used with the mounting adapter MMB.A.TS to enable secure magnetic or adhesive mounting while maintaining antenna performance. For a passive version, refer to TS.15.0111.
Connections
1x Active GNSS (GPS/GLONASS/Galileo/BeiDou, L1/L-Band)
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Direct Mount
Satellite Navigation: GNSS
Type: Single
IP Rating: IP67
Dimensions: Ø27.25 x 60 mm
Weight: 17g
GNSS (Active)
Frequency: 1559MHz - 1610MHz
Standards: GPS L1, Galileo E1, GLONASS G1, BeiDou B1, L-Band
GNSS Bands: L1/L-Band
Polarization: RHCP
Impedance: 50 Ω
VSWR: 2:1
Gain (Max): 28.9
Connector Type: SMA Male Connector
