Description

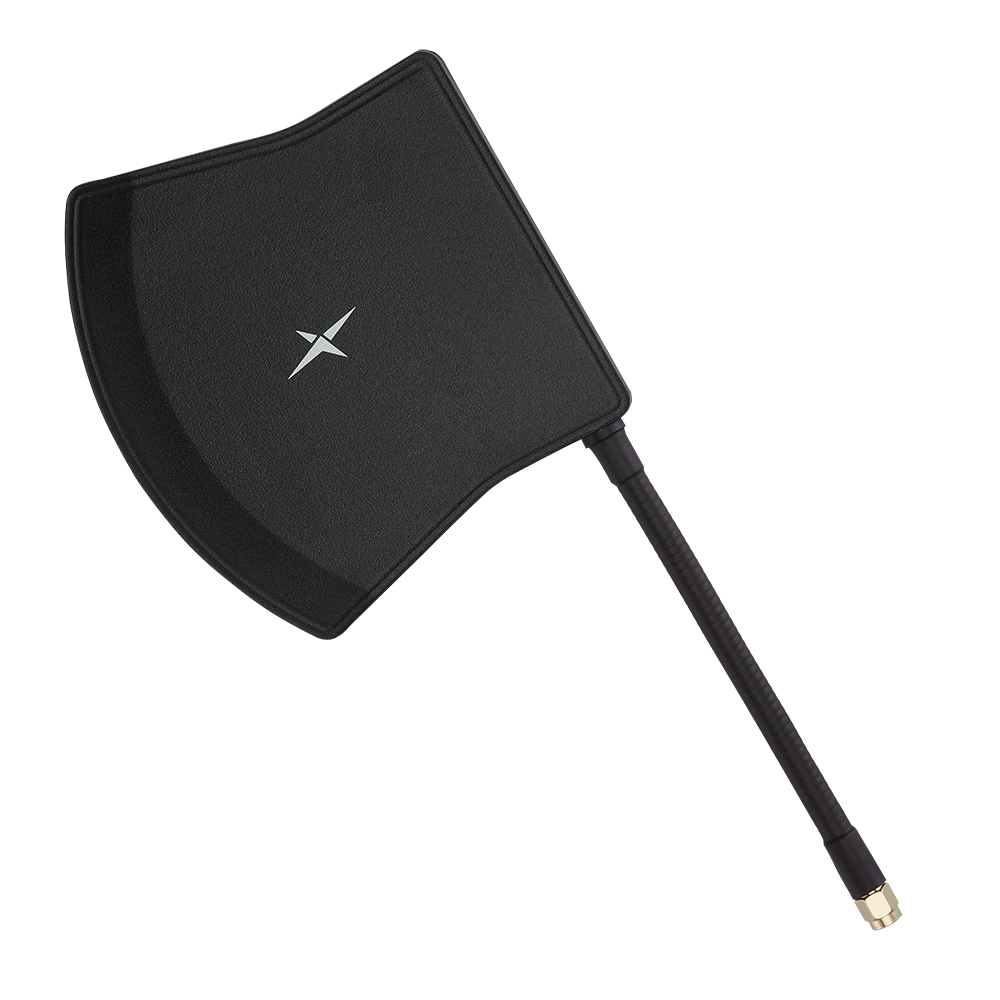

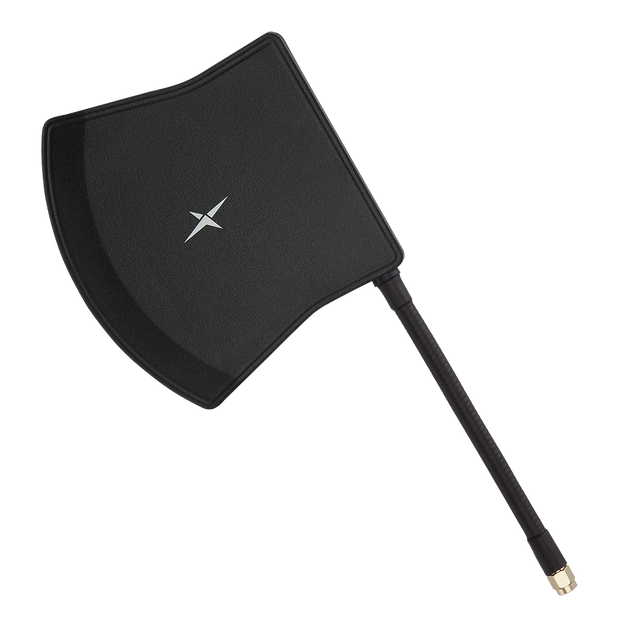

Sighunter is a mechanically robust directional antenna designed for ISM LPWAN deployments where focused, longer-range coverage is needed.
- Directional radiation pattern helps concentrate energy toward the target base station/receiver for improved link performance
- Adjustable flexible gooseneck enables positioning for best signal reception and reduced interference from other directions
- Designed for global operation across common 868MHz and 915MHz bands used in LPWAN networks
Typical applications include:
- Smart meters and remote monitoring
- Mesh networks
- Smart Home
- Medical Devices
Connector & Cable
- Connector Type: SMA-M
- Cable Length: n/a
- Cable Type: Flexible gooseneck
Technical Specifications
Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa, SigFox
Mounting: Terminal, Direct SMA Connector Mount
Short-Range Wireless Standards: ISM/LoRA
Type: Single
Dimensions: 108 x 118 x 12mm Connector: SMA Male Gooseneck length: 127mm RoHS & REACH Compli
Weight: 106g
ISM / LoRa / SigFox (Directional)
Frequency: 860MHz - 928MHz
Impedance: 50Ω
VSWR: 2.8:1
Polarization: Linear
Radiation Pattern: Directional
Input Power: 10W
Gain (Max): 4
Peak Gain (Free Space): 3.5dBi @ 868MHz, 2.7dBi @ 915MHz
Efficiency (Free Space): 87.4% @ 868MHz, 82.2% @ 915MHz
Material: Housing: UV Resistant ABS
Connector Type: SMA Male
Gooseneck Length: 127mm
Humidity: Non-condensing 65°C 95% RH
