Description

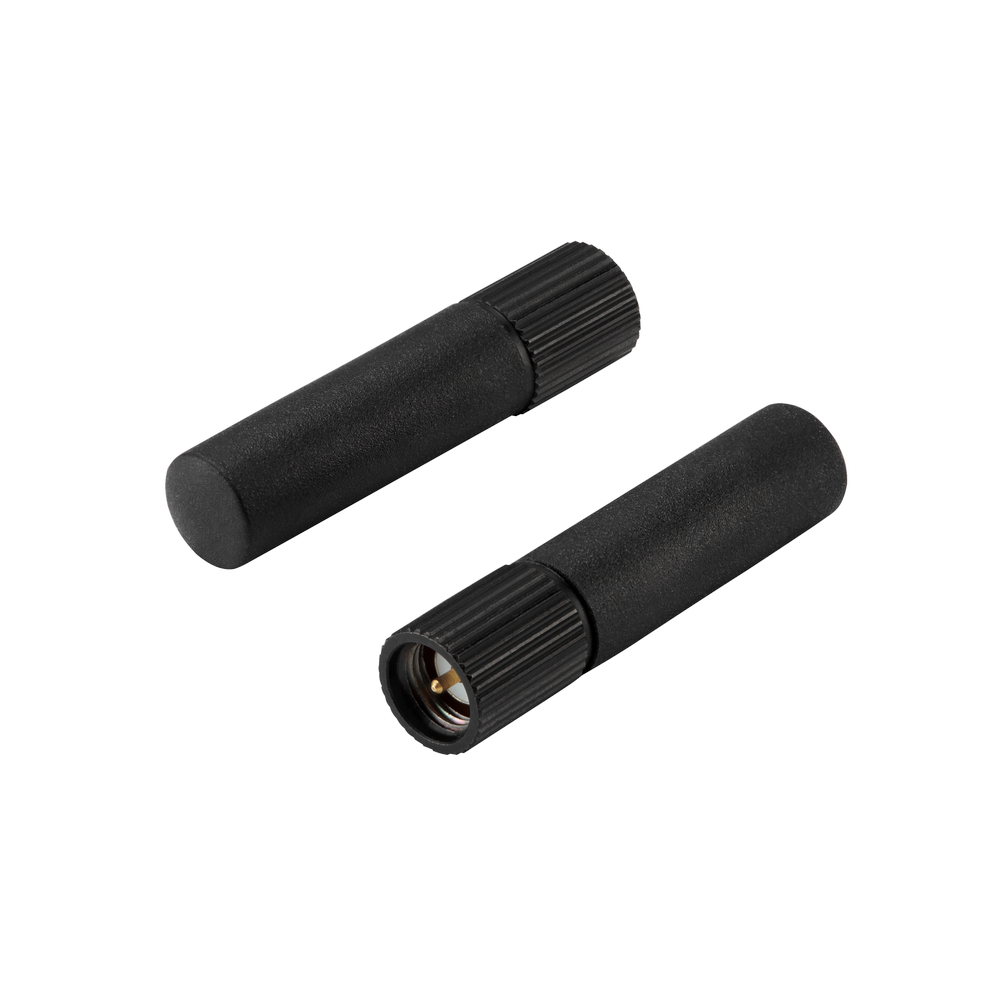

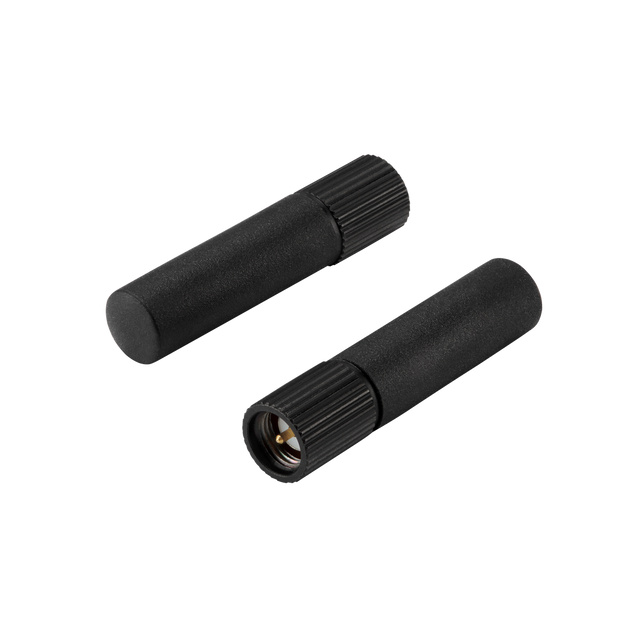

This super-compact, low-profile ultra-wideband antenna is designed for reliable short-range ranging and positioning systems. It delivers strong, consistent omnidirectional coverage and is ground-plane independent, making integration easier across a wide range of devices and enclosures.
Built for harsh environments with an IP67-rated enclosure, it is well-suited to demanding indoor deployments where durability and stable RF performance are required.
Typical applications include:
- Indoor position location and asset tracking applications
- Smart home device control and entertainment systems
- Keyless entry and access control systems
Connector & Cable
- Connector Type: SMA-M
Technical Specifications
Operating Temperature: -40°C to +85°C
Location: External
Mounting: Terminal Mount
Type: Single
IP Rating: IP67
Dimensions: Length 35.8mm, Ø8.2mm RoHS & Reach Compliant
Weight: 6g
UWB
Frequency: 6-8.5GHz
Standards: UWB
Impedance: 50Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 6.07 dBi
Radiation Pattern: Omni
Connector Type: SMA(M)
