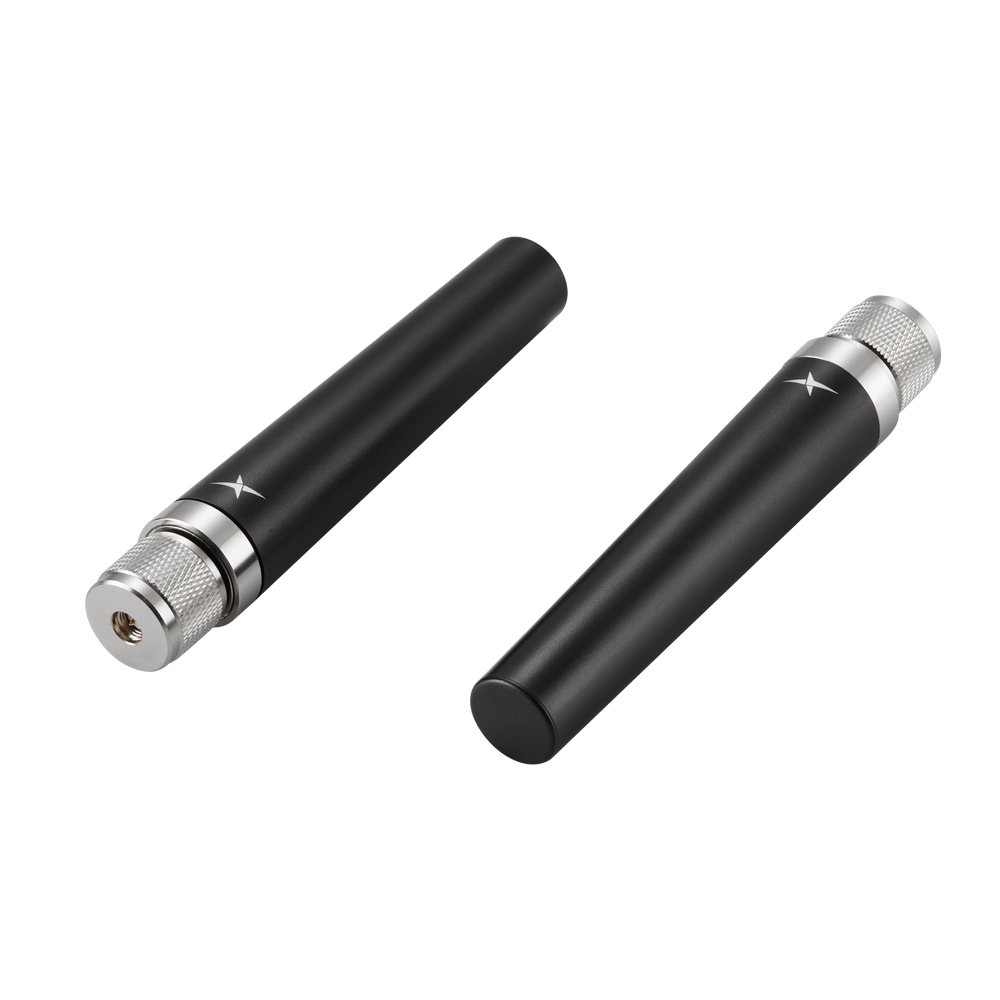

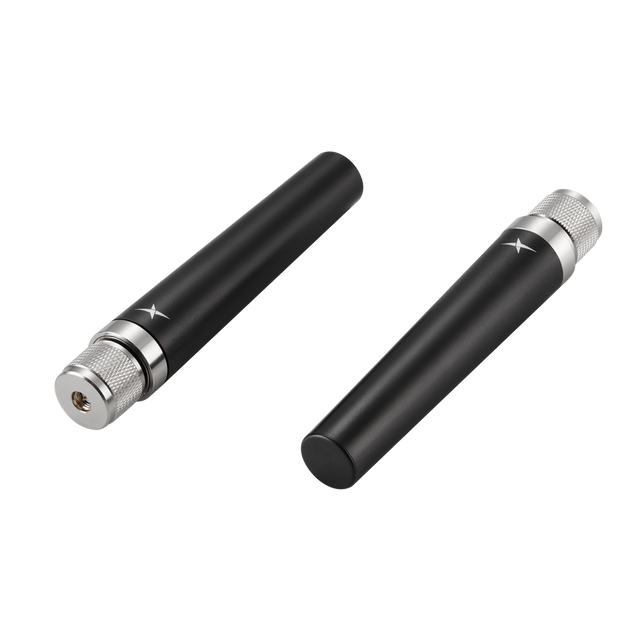

TU.66.3131 Antenna Low-Profile High-Gain Router 5G, Wi-Fi 6E/7 terminal mount SMA-M IP67 for Gateways, Routers and Private LTE Networks, In-Building Connectivity Systems, Point of Sales Kiosks and Digital Signage, Connected Industries and Smart Metering

Compact, rugged terminal-mount wideband antenna designed to cover global cellular and Wi-Fi bands from 600–8000MHz, including the 7.125GHz Wi-Fi band. Its low-profile form factor and omnidirectional radiation help improve signal strength in space-constrained devices and terminal-mounted equipment.

Built for demanding deployments, the enclosure is IP67-rated for indoor or outdoor use, and maintains sealing when mated for complete environmental protection.

Typical applications include:

• Gateways, Routers and Private LTE Networks
• In-Building Connectivity Systems
• Point of Sales Kiosks and Digital Signage
• Connected Industries and Smart Metering

Connector & Cable

• Connector Type: SMA(M) Plug

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: NB-IoT, Cat-M
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: Length 125mm, Ø22.8mm RoHS & Reach Compliant
Weight: 55g

5G/4G/3G/NB-IoT/Cat-M + Wi‑Fi

Frequency: 617-698, 698-806, 824-960, 1427-1518, 1710-2200, 2300-2690, 3300-5000, 5150-5925, 5925-7125 MHz (wideband coverage stated: 600-8000MHz)
Standards: 5GNR/4G/3G/NB-IoT/Cat M; Wi‑Fi 2.4/5/6GHz (includes 7.125GHz band); Bluetooth
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Radiation Pattern: Omni directional
Max. Input Power: 50W
Gain (Max): 8.75
Connector Type: SMA(M) Plug
