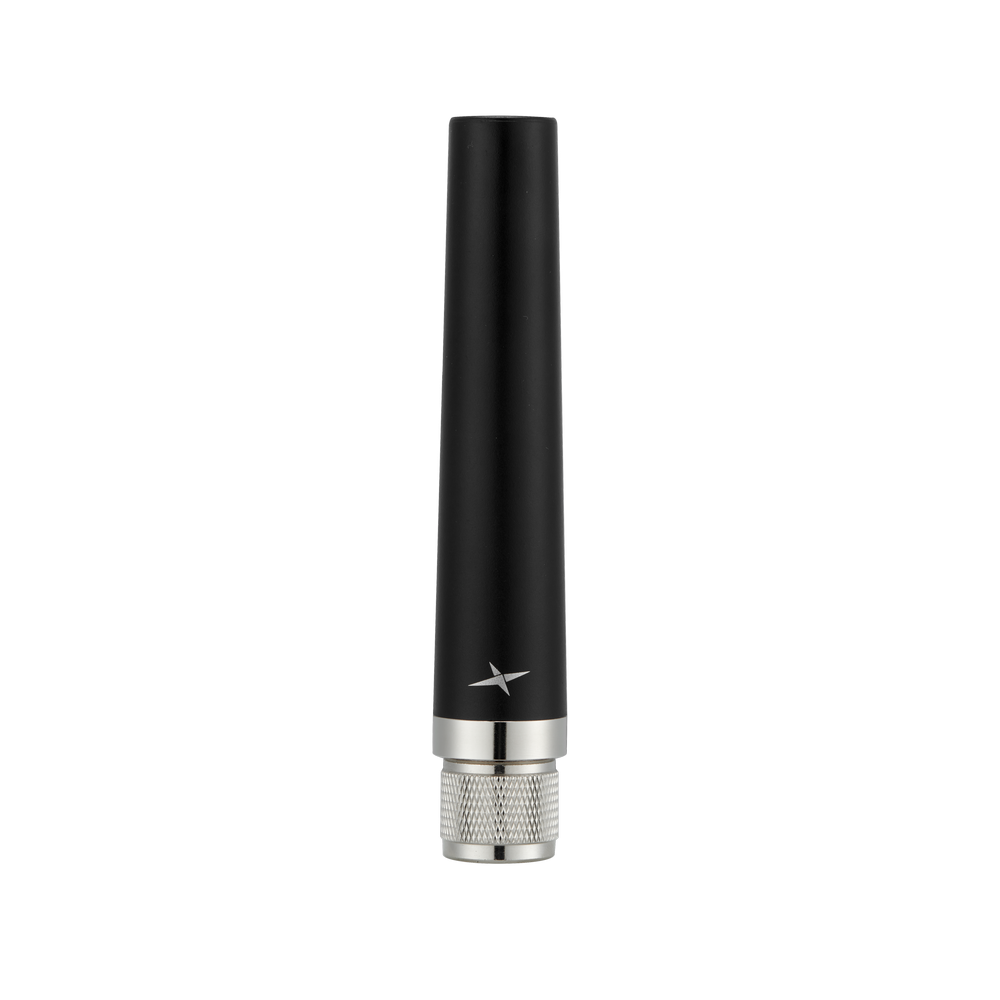

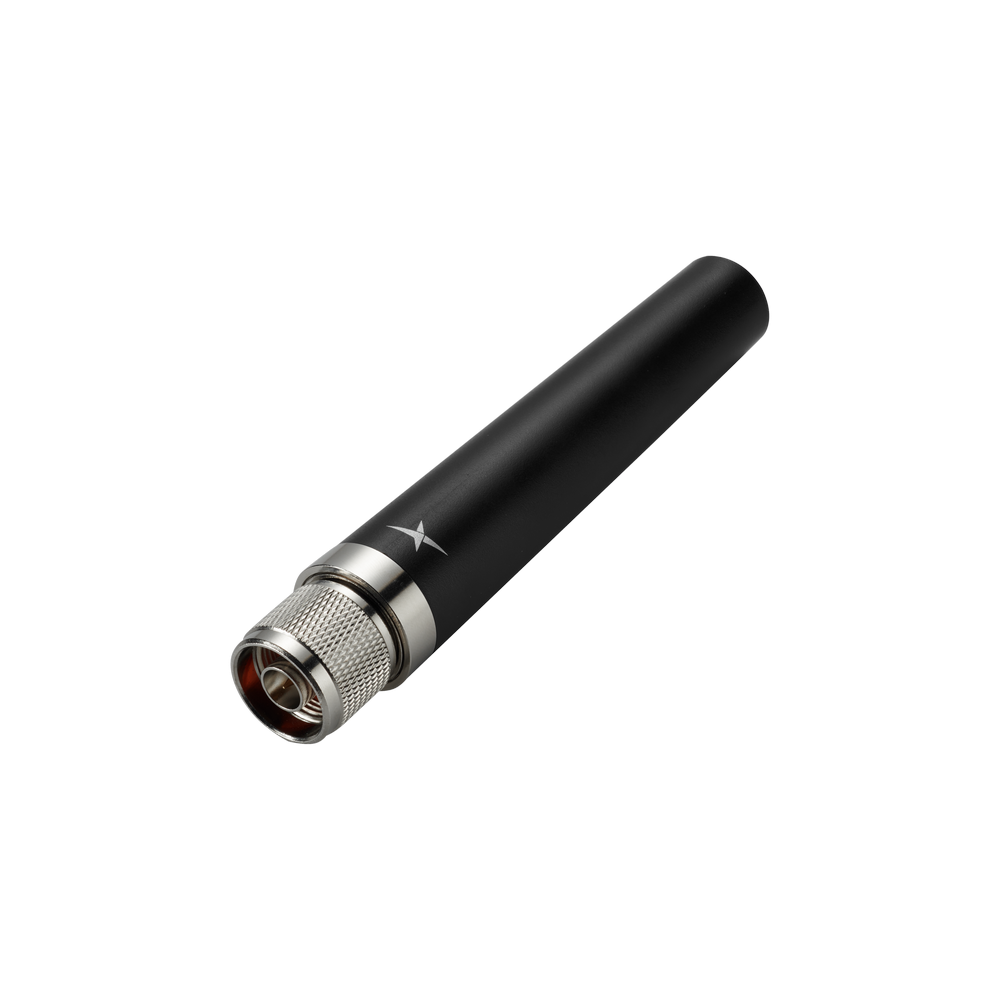

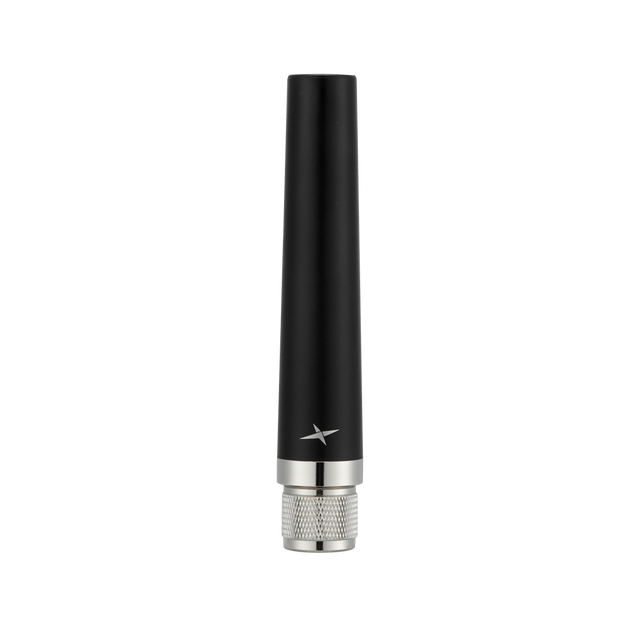

TU.66.3H31 Antenna Outdoor Low-Profile 5G, Wi-Fi 6E/7 terminal mount N-Type(M) IP67 for Gateways, Routers, Private LTE Networks, In-Building Connectivity Systems

Compact, rugged wideband terminal-mount antenna designed to support global cellular and Wi-Fi operation across a very wide frequency range. It delivers excellent efficiency across the bandwidth, with high-gain performance and an omnidirectional radiation pattern to help improve signal strength in demanding IoT and M2M deployments.

Ideal use cases include:

• Gateways
• Routers
• Private LTE Networks
• In-Building Connectivity Systems
• Point of Sales Kiosks and Digital Signage
• Connected Industries and Smart Metering

An IP67-rated enclosure supports use in both indoor and outdoor environments, helping protect the antenna in rugged installations.

Connections

1x 5G/4G & Wi-Fi 6/7 600-8000MHz

Connector & Cable

• Connector Type: N-Type(M)

Technical Specifications

Operating Temperature: -40°C to 85°C
Cellular Technologies: 5G
Location: External
LPWAN & IoT Communication: Cat-M, NB-IoT
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi
Type: Single
IP Rating: IP67
Dimensions: Length 125mm, Ø22.8mm RoHS & Reach Compliant
Weight: 55g

Wideband Cellular & Wi-Fi

Frequency: 600-8000MHz
Standards: 5G/4G, Wi-Fi 6/7
Impedance: 50 Ω
Polarization: Linear
VSWR: 2:1
Gain (Max): 8.75 dBi
Radiation Pattern: Omni directional
Max. Input Power: 30W
Connector Type: N-Type(M)
