Description

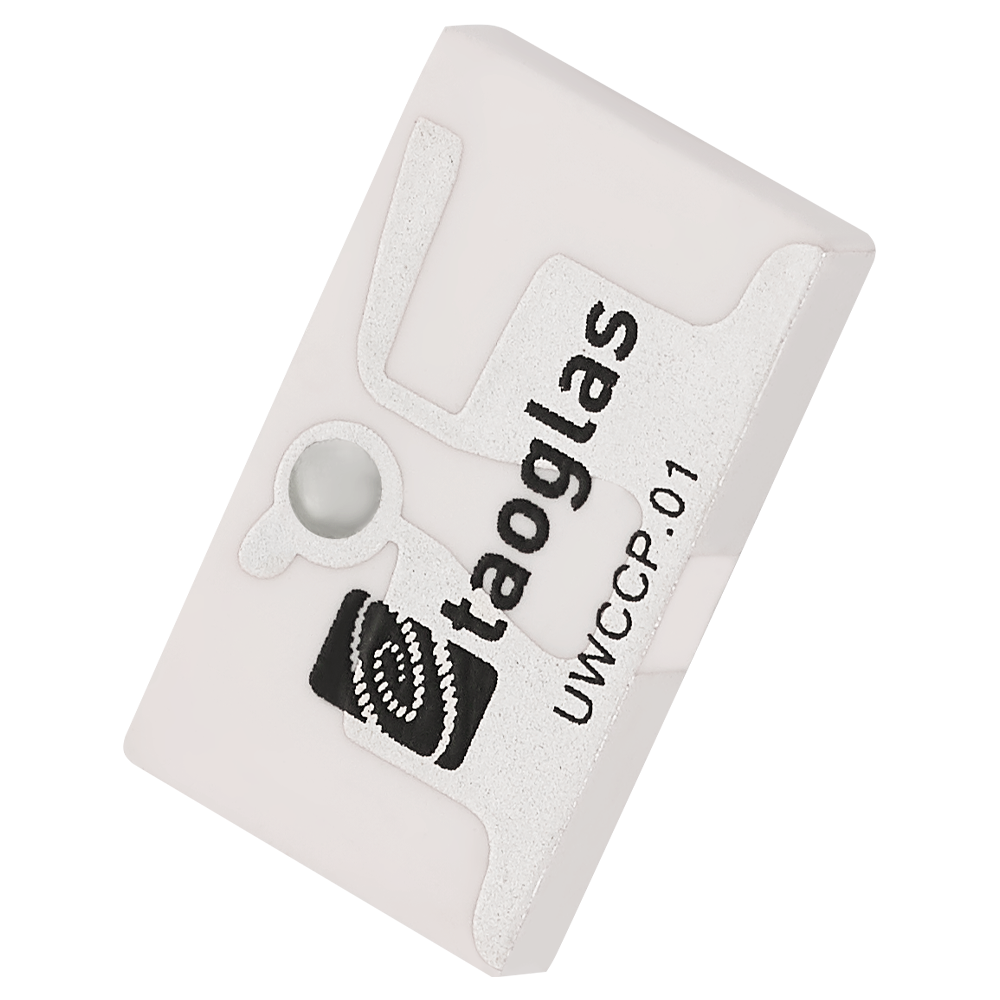

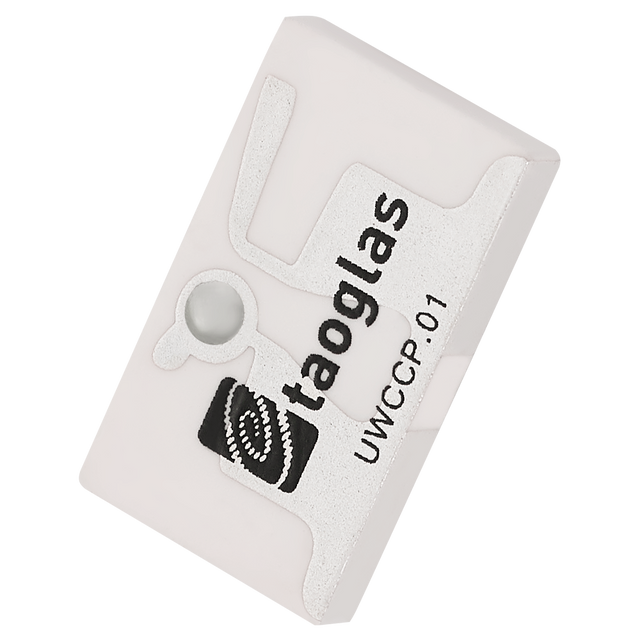

The UWCCP.01 is a compact embedded Ultra-Wideband (UWB) chip antenna designed for high-efficiency operation in UWB Channel 5. With linear polarization, it is well-suited to mobile tags and devices using Time of Arrival (ToA) and Angle of Arrival (AoA) localization methods.
- Embedded UWB performance: Optimized for UWB Channel 5 operation for EU and USA UWB applications.
- Compact ceramic chip form factor: Helps reduce device size while supporting reliable short-range positioning use cases.
- Designed for PCB integration: Mounted to the PCB via standard SMD/SMT reflow processes.
For best radiation efficiency, mount the antenna with at least 3mm clearance from metal components or surfaces (5mm is recommended where possible).
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: SMD/SMT Mount
Type: Single
Dimensions: 14.3 x 8.35 x 2 mm
Weight: 1g
UWB (Channel 5)
Frequency: 6.24-6.74 GHz
Impedance (Ohms): 50
Polarization: Linear
VSWR: <3:1
Return Loss (dB): <-8
Efficiency (%): 80
Peak Gain (dBi): 6.5
Radiation Properties: Omnidirectional
Max Input Power (W): 10
Material: Ceramic
