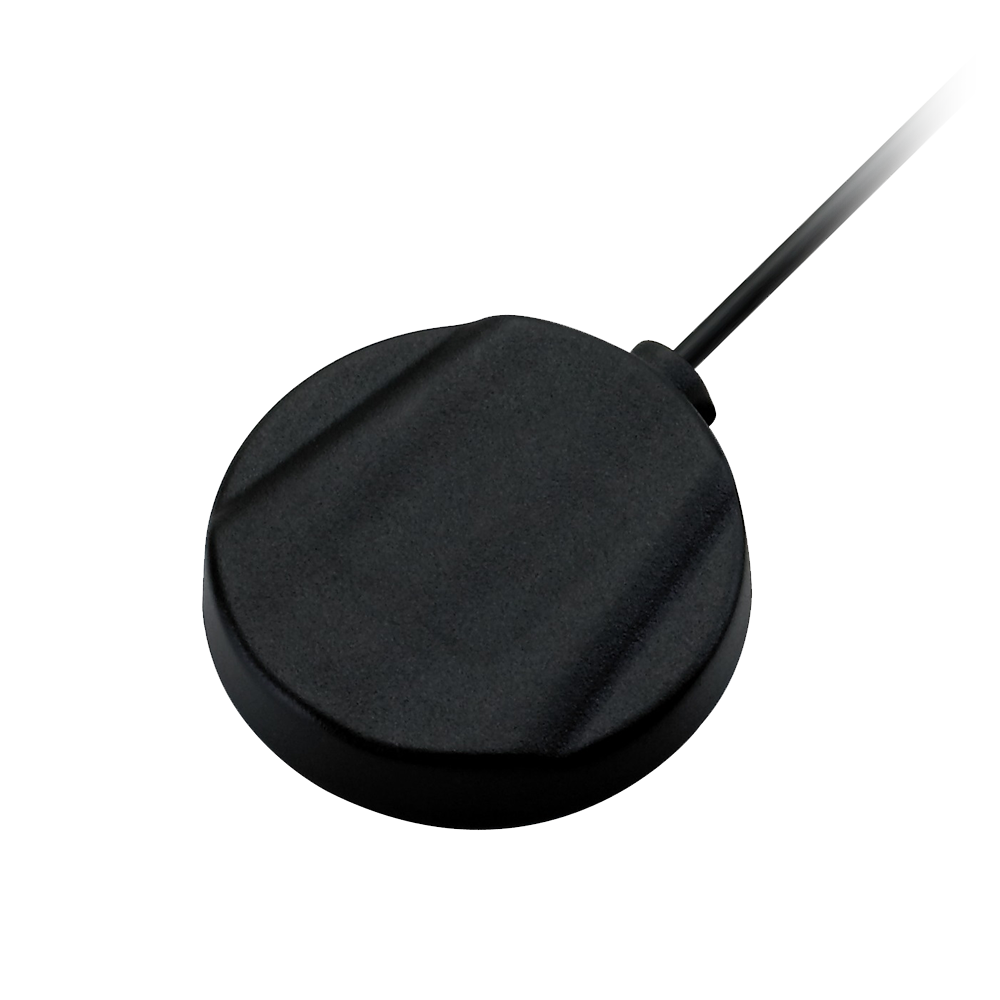

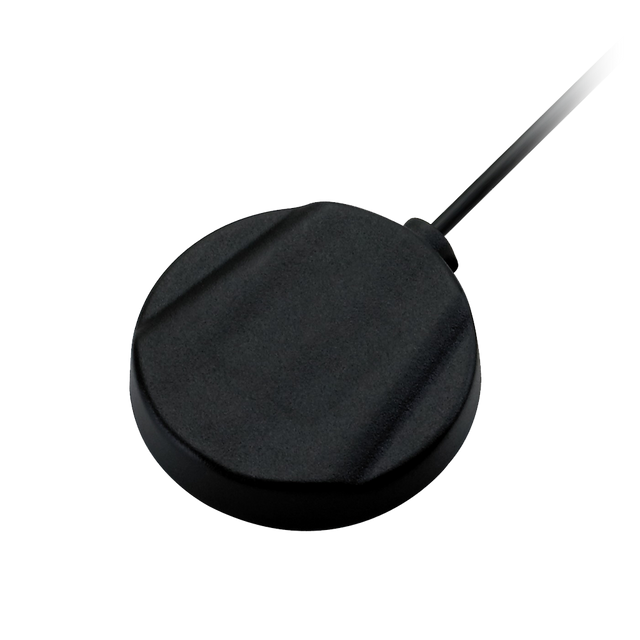

WA.500w.301151 Antenna External High-Gain Wi-Fi, Bluetooth, ISM glass mount Stingray RPSMA-M 300cm IP65 for Drones, Vending Machines, Digital Signage, Vehicles

Stingray is a low-profile, adhesive glass/plastic-mount antenna designed to deliver reliable, omnidirectional coverage for connected devices.

• Dual-band wireless coverage: built for common 2.4GHz and 5.8GHz wireless deployments.
• Covert, low-profile housing: ideal when discreet installation on glass or plastic is required.
• Reliable wide-area performance: helps maintain stable reception and transmission across typical IoT and smart city installations.
• Weather-protected design: suited to environments where extra protection is required.
• Customization available: cable and connector customization options supported.

Typical use cases include drones, vending machines, digital signage, vehicles, and smart city deployments.

Connector & Cable

• Connector Type: RPSMA-M
• Cable Length: 300cm
• Cable Type: RG-174

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
Mounting: Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee
Type: Single
IP Rating: IP65
Housing Material: PC
Color: Black
Dimensions: Diameter 51.4mm*Height 11.87mm
Weight: 62g

Wi-Fi / Bluetooth / ZigBee (Dual-Band)

Frequency: 2400~2500, 5150~5850 MHz
Impedance: 50 Ω
Polarization: Linear
Return Loss: <-10dB
VSWR: <3:1
Peak Gain (dBi): 3.7 (2400~2500MHz), 3.65 (5150~5850MHz)
Connector Type: RPSMA-M
Cable Length: 300cm
Cable Type: RG-174
Humidity: Non-condensing 65°C 95% RH
