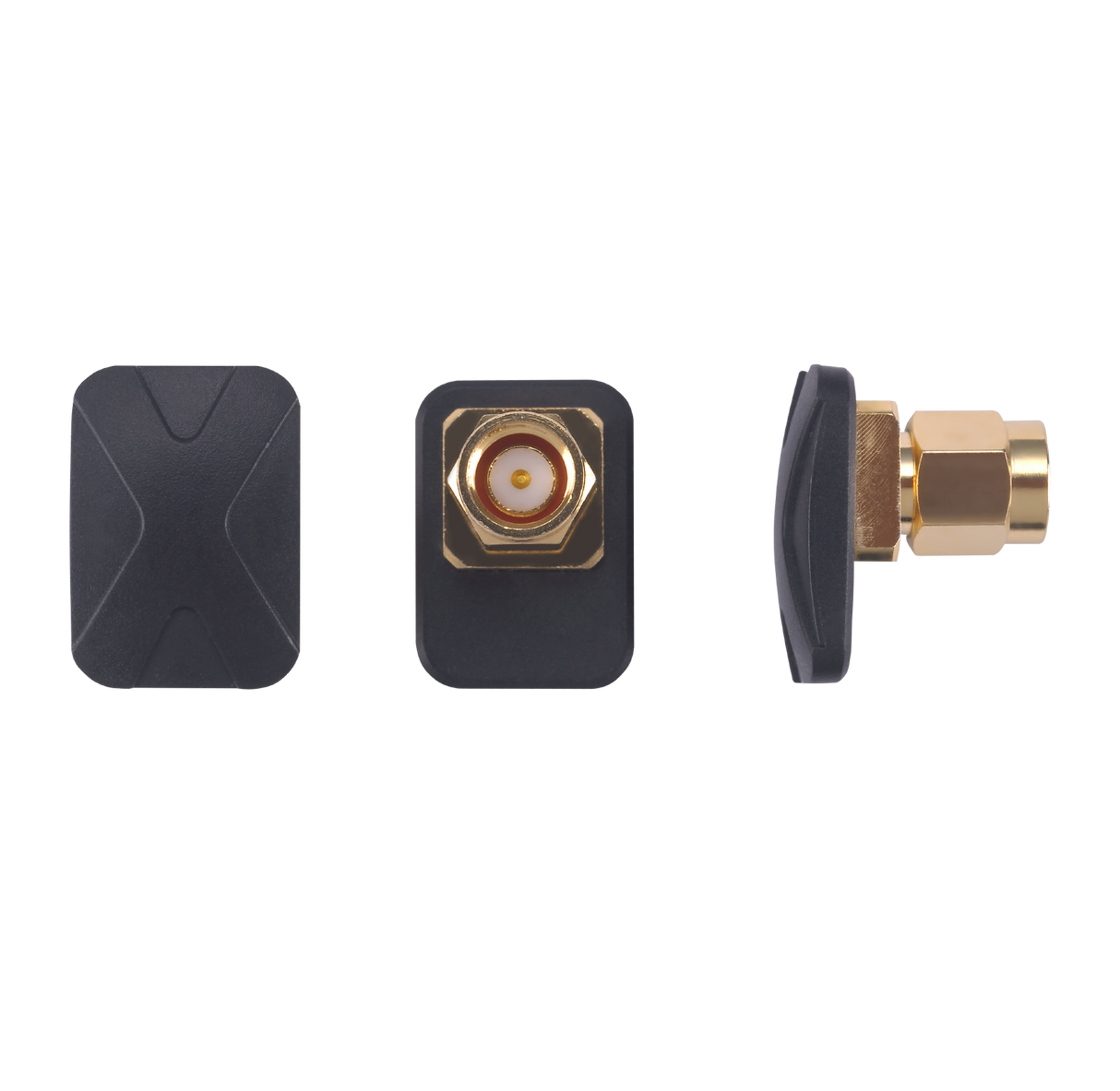

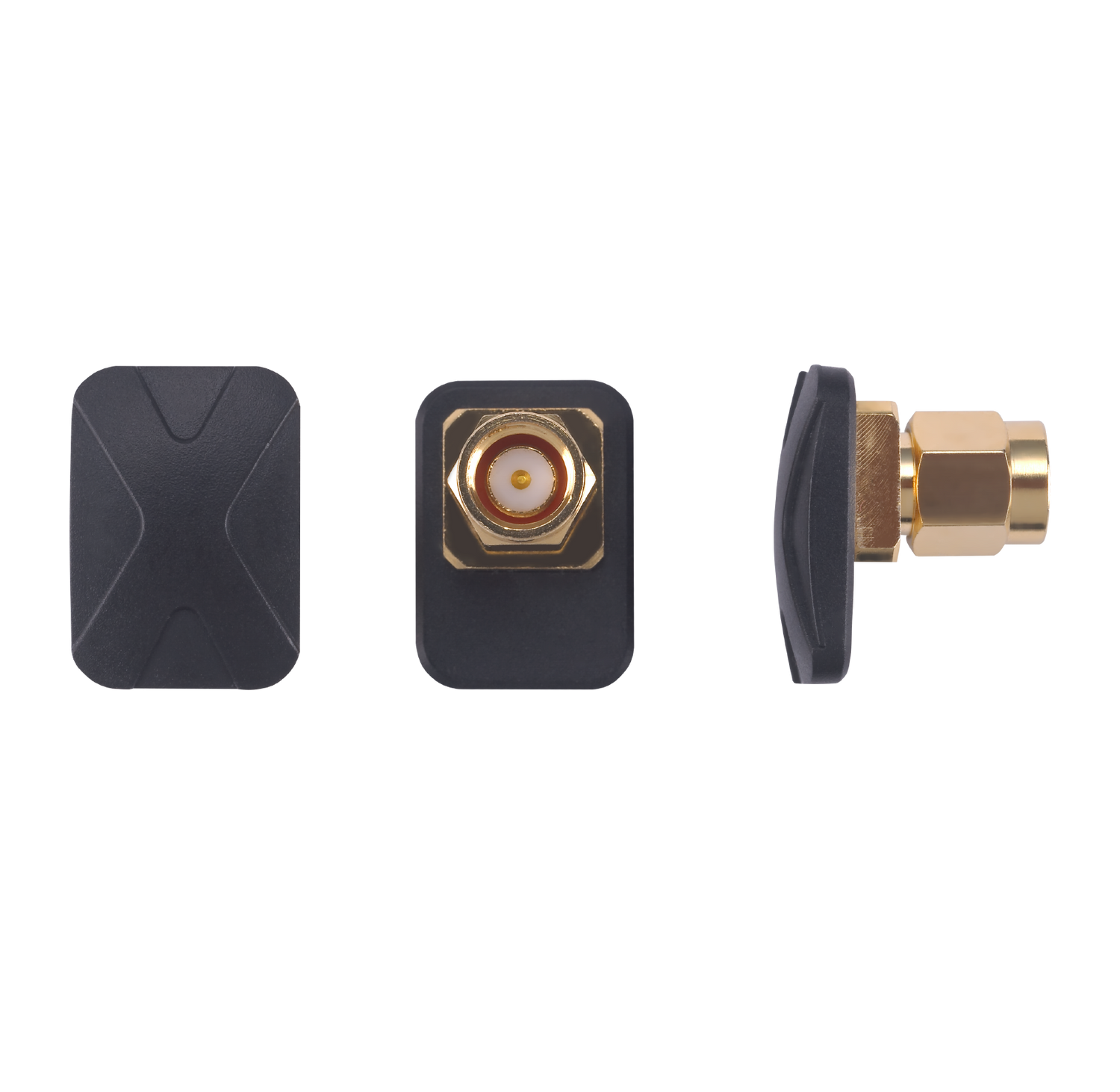

WCM.01.0111 Antenna External Wi-Fi, ISM button connector mount SMA-M IP67 for Application Points, Routers, IoT M2M Devices, Smart Home Applications

Ultra-compact external button antenna designed for dependable 2.4 GHz Wi-Fi and Bluetooth connectivity in space-constrained devices.

• Small form factor to fit tight installation areas
• PIFA design for stable, omnidirectional performance
• Optimized for use when installed on a device ground plane
• Suitable for routers, access points, and compact IoT hardware
• For best radiation performance, mount the antenna clear of metal surfaces

Typical uses: Application Points, Routers, IoT M2M Devices, Smart Home Applications.

Connector & Cable

• Connector Type: SMA-M

Technical Specifications

Operating Temperature: -40°C to +85°C
Antenna Technologies: PIFA
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Impedance: 50 Ω
VSWR: 2:1
Radiation: Omni-directional
Polarization: Linear
Max Input Power: 10W
Gain (Max): 1.68 dBi
Dimensions: 19.8mm*14.3mm*16.4mm
Weight: 6g

Wi-Fi / Bluetooth (2.4GHz)

Frequency: 2400-2500 MHz
Standards: Wi-Fi® / Bluetooth®
Connector Type: SMA(M)
Efficiency: >60%
