Description

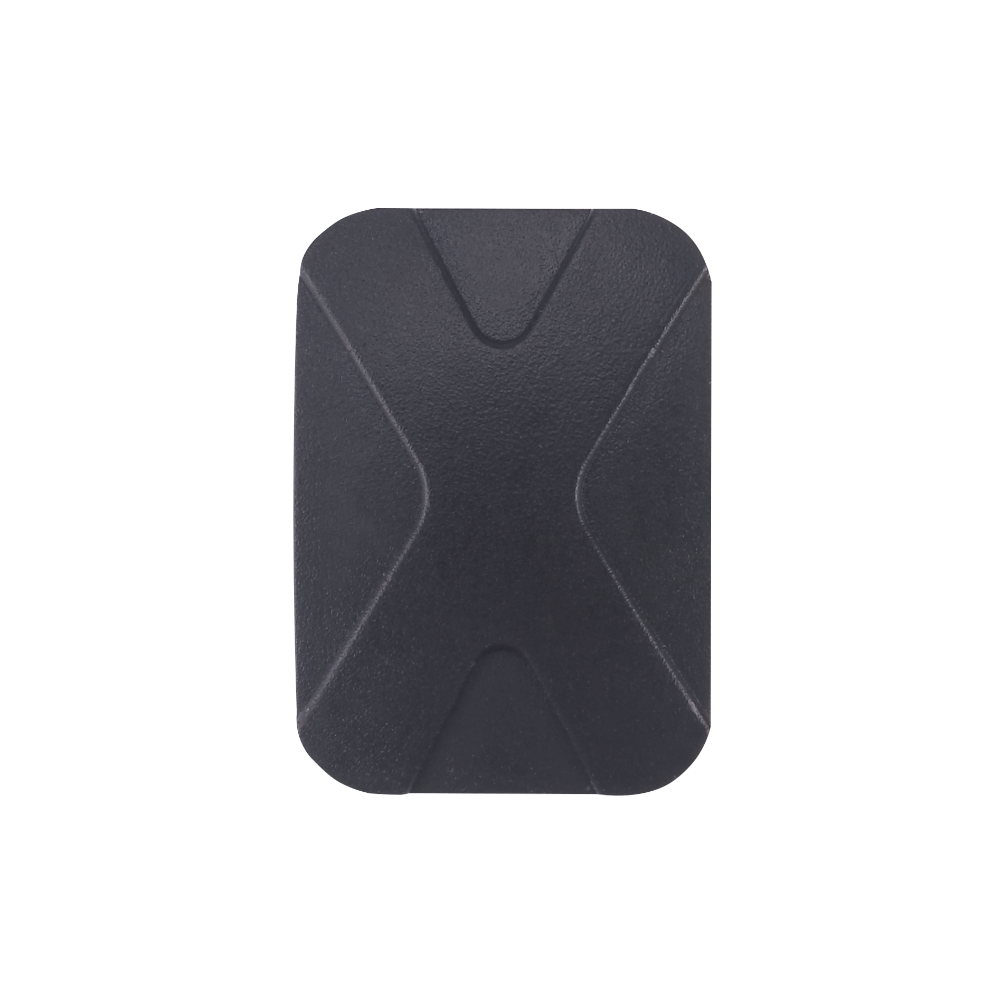

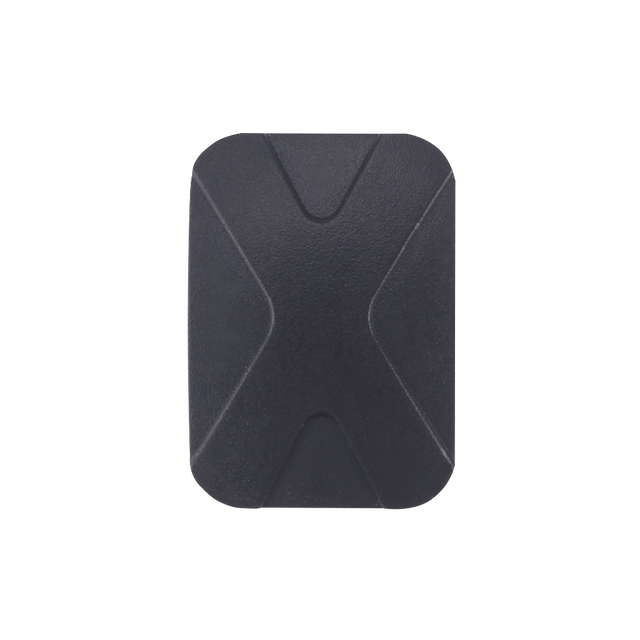

WCM.01.0151 is an ultra-compact 2.4GHz external button antenna designed for reliable Wi-Fi and Bluetooth connectivity in space-constrained devices. Its PIFA design supports omnidirectional performance for consistent reception and transmission.
- Ultra-compact external form factor for tight installation spaces
- Omnidirectional radiation to help maintain stable links
- High-efficiency design when connected directly to the device ground plane
- Water-resistant enclosure for added durability
For best performance, mount the antenna in a position that is clear of metal.
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40 C to +85 C
Antenna Technologies: PIFA
Location: External
Mounting: Terminal
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: 19.8*14.3*16.4mm
Weight: 6g
Wi-Fi / Bluetooth (2.4GHz)
Frequency: 2400-2500 MHz
Standards: Wi-Fi ae / Bluetooth ae
Radiation: Omnidirectional
Polarization: Linear
Impedance: 50 a9
VSWR: 2:1
Gain (Max): 3.8 dBi
Efficiency: 60%+
Input Power: 10W
Connector Type: RP-SMA(M)
Connector Polarity: Reverse
Casing: ABS
