Description

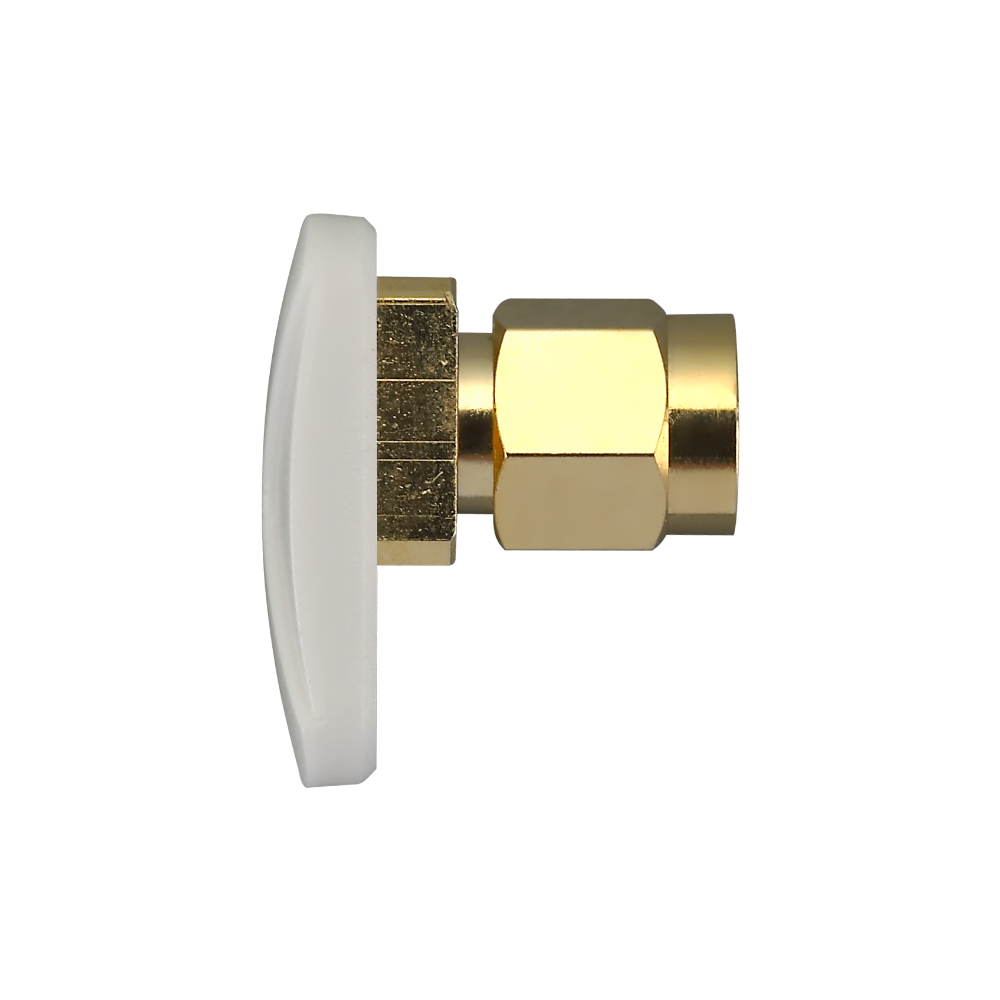

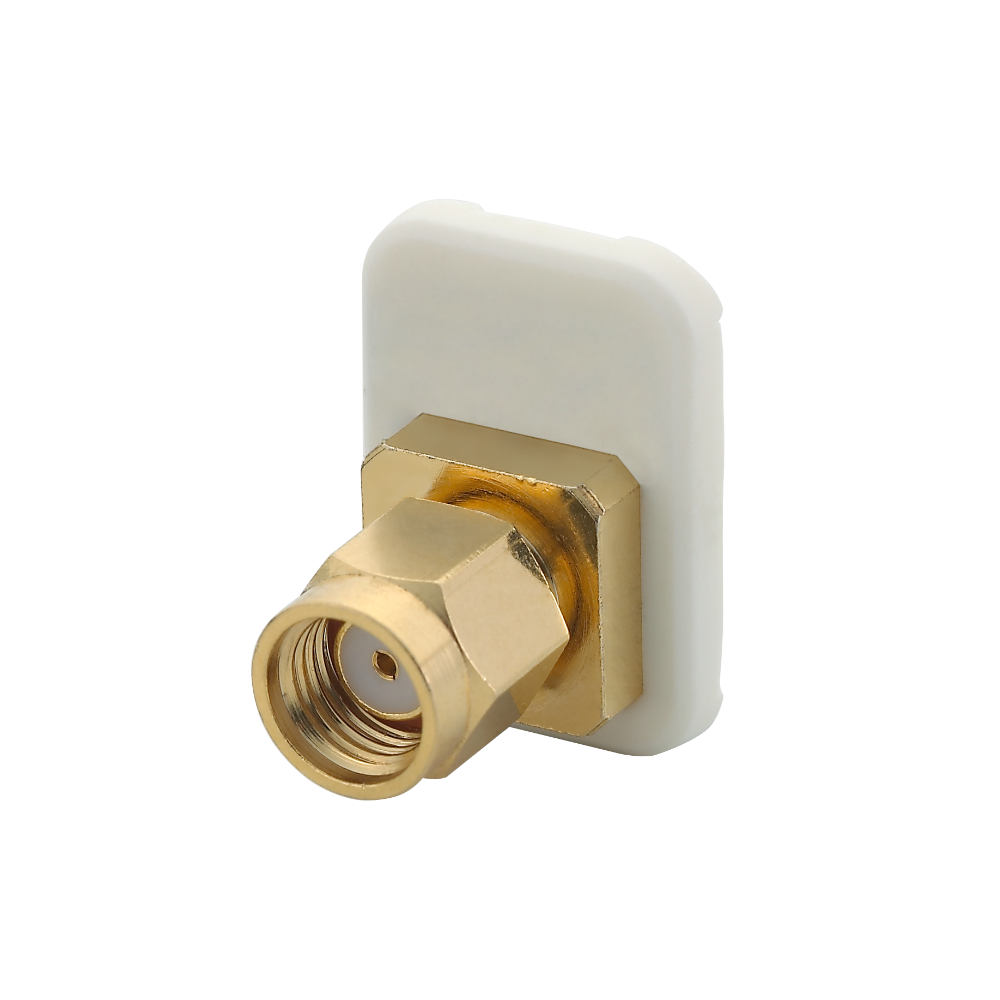

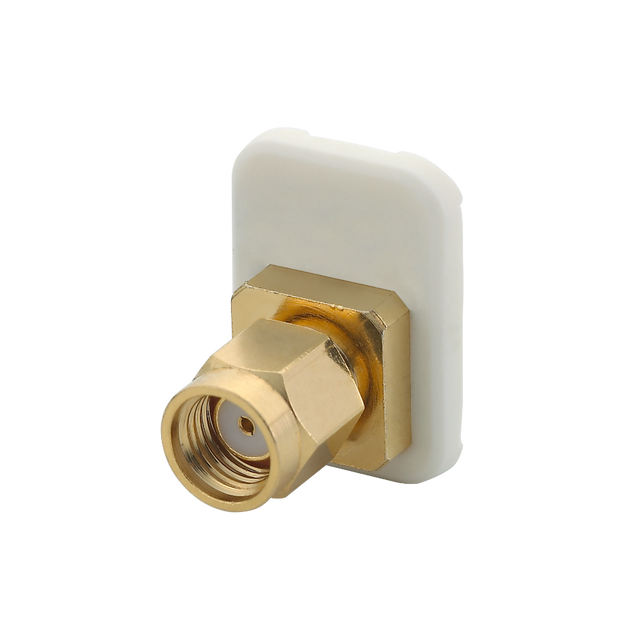

Smallest external Wi-Fi / Bluetooth button antenna designed for compact devices where traditional monopole, dipole, or rubber-ducky antennas will not fit. Its PIFA design provides omnidirectional performance across the 2.4GHz ISM band to support reliable Wi-Fi and Bluetooth connectivity.
- Space-saving button form factor: ideal for compact enclosures and tight integration areas.
- Consistent omnidirectional coverage: supports stable reception and transmission across 2.4GHz to 2.5GHz.
- Optimized for real devices: designed to achieve strong efficiency when connected directly to the device ground plane.
- Placement guidance: mount on the edge of the main PCB ground-plane and keep clear of metal housings for best radiation.
Typical use cases: UAV applications, Application Points, Routers, IoT M2M devices, Smart Home applications.
Connector & Cable
- Connector Type: RP-SMA(M)
Technical Specifications
Operating Temperature: -40°C ~ + 85°C
Antenna Technologies: PIFA, Monopole
Location: External
Mounting: Terminal Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Frequency: 2400-2500 MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Max Input Power: 10W
Gain (Max): 5.8 dBi
IP Rating: IP67 (Housing only)
Dimensions: 19.8*14.3*16.4mm RoHS and REACH Compliant
Weight: 6g
Radiation: Omnidirectional
