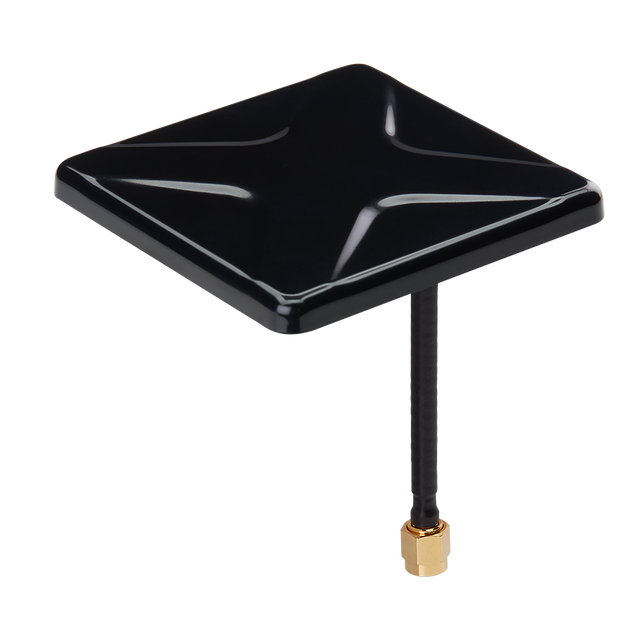

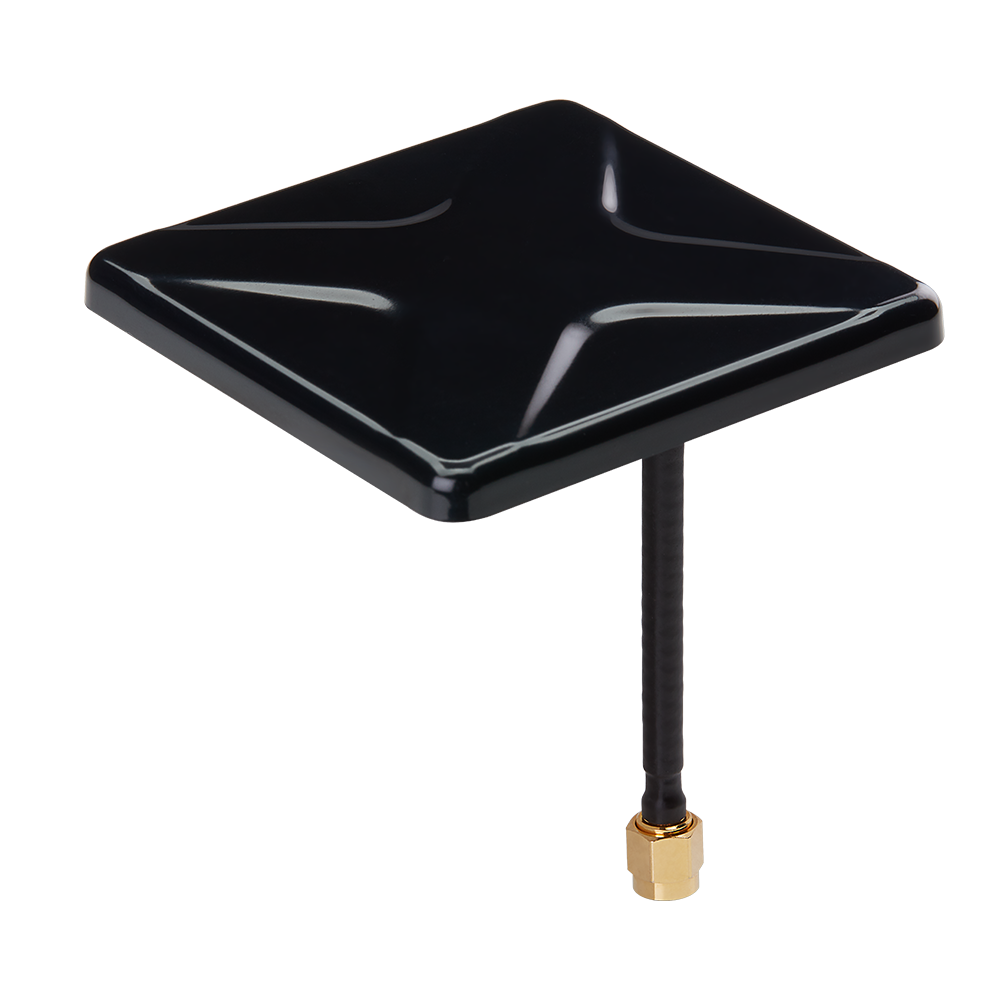

WCM.02.005D111 Antenna External Outdoor Wi-Fi, Bluetooth, ISM connector mount SMA-M 5cm IP67 for Application Points, Routers, IoT M2M Devices, Smart Home Applications

Two-monopole external antenna designed for reliable 2.4GHz ISM connectivity in Wi-Fi and Bluetooth devices.

A low-profile design with a PIFA-based structure and internal hybrid coupler helps maintain robust, omnidirectional performance when device orientation is unknown or changing—ideal for stable reception and transmission in real-world deployments.

Typical use cases include routers, smart home devices, IoT/M2M equipment, and UAV/drone platforms.

Connector & Cable

• Connector Type: SMA-M
• Cable Length: 5cm
• Cable Type: SS402 (RG-405)

Technical Specifications

Operating Temperature: -40°C to +80°C
Antenna Technologies: Monopole, PIFA
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: 70.2 x 70.2 x 16.7mm IP67 Cable: Coa x ial 50mm SS402 Connector: SMA(M) RoHS and REACH
Weight: 28g

Wi-Fi / Bluetooth (2.4GHz ISM)

Frequency: 2400-2500 MHz
Standards: Wi-Fi®/Bluetooth®
Polarization: RHCP
Impedance: 50Ω
VSWR: 2:1
Return Loss: <-10
Efficiency (%): 55.19
Average Gain (dBi): -2.58
Peak Gain (dBi): 1.18
Axial Ratio @ Zenith: < 5
Connector Type: SMA(M)
Cable Length: 5cm
Cable Type: SS402 (RG-405)
