Description

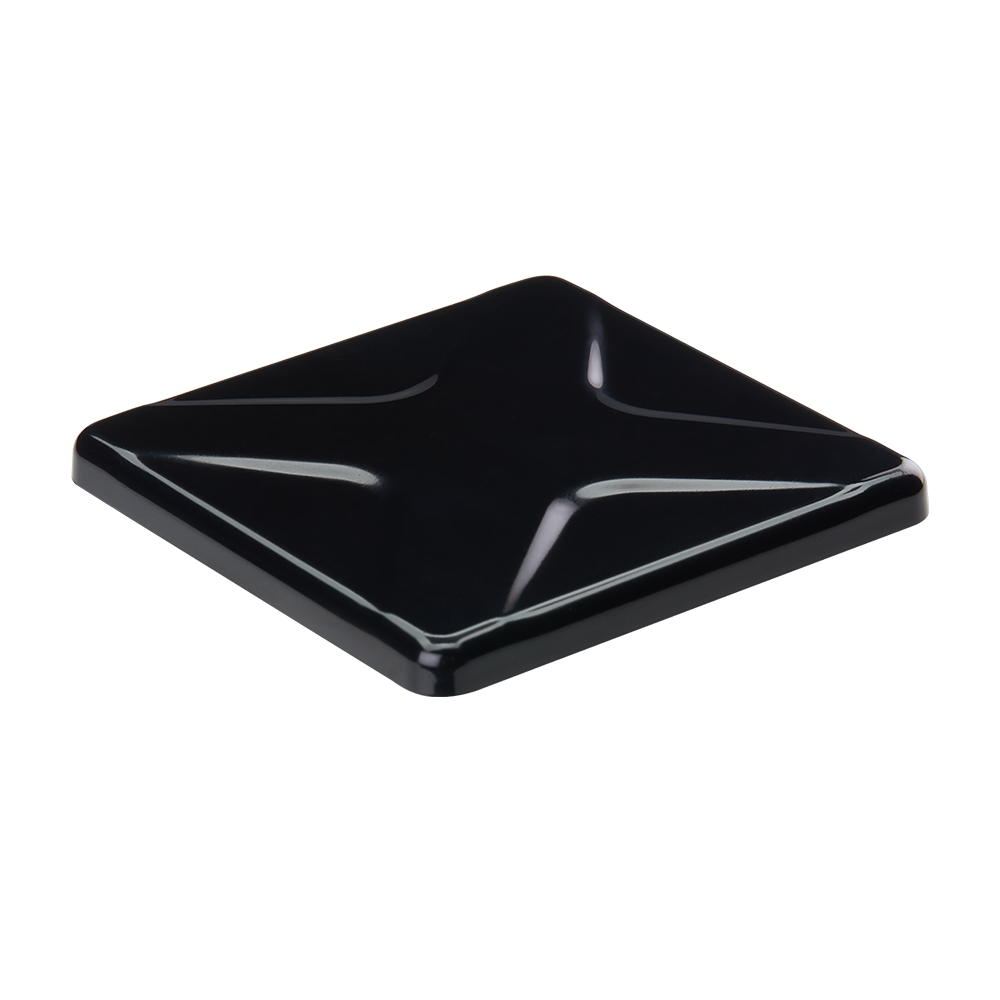

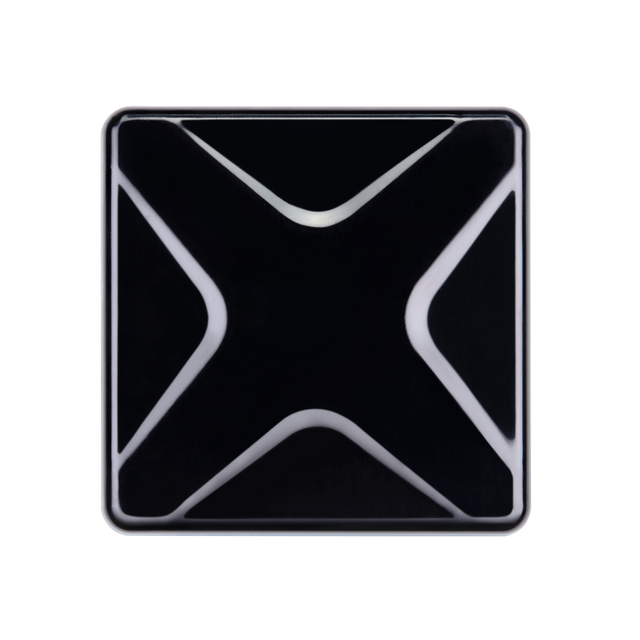

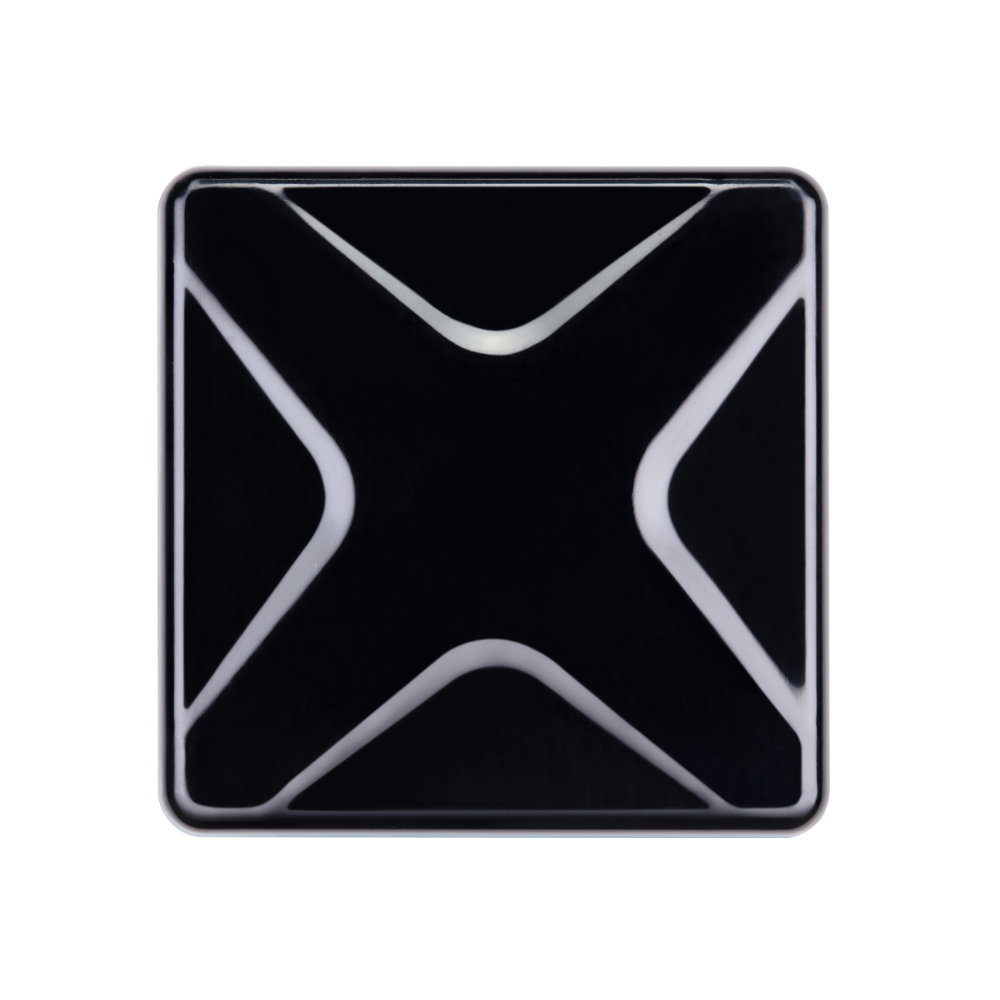

A compact, low-profile external antenna designed for robust 2.4GHz ISM band connectivity in Wi-Fi and Bluetooth applications. Its PIFA-based design supports reliable communication when device orientation is unknown or changing, making it well-suited to space-constrained products that still need consistent over-the-air performance.
- Designed for 2.4GHz ISM: supports common Wi-Fi and Bluetooth use cases
- Low-profile external form factor: suitable for routers and compact equipment
- Water-resistant housing: suitable for indoor and outdoor IoT deployments
Typical applications include:
- Application points
- Routers
- IoT M2M devices
- Smart Home applications
Connector & Cable
- Connector Type: SMA-F
- Cable Length: Not specified
- Cable Type: Not specified
- Notes: Cable and connector are customizable subject to minimum order quantities and possible NRE.
Technical Specifications
Operating Temperature: -40°C to +80°C
Antenna Technologies: Monopole, PIFA
Location: External
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: 70.2 x 70.2 x 6.7mm IP67 Connector: SMA(F) RoHS and REACH compliant
Weight: 23.5g
Wi-Fi / Bluetooth (2.4 GHz ISM)
Frequency: 2400~2500 MHz
Standards: Wi-Fi®, Bluetooth®
Impedance: 50Ω
Polarization: RHCP
Axial Ratio @ Zenith: < 5
Return Loss: <-10
Efficiency (%): 58.60
Average Gain (dBi): -2.32
Peak Gain (dBi): 1.68
Connector Type: SMA(F)
