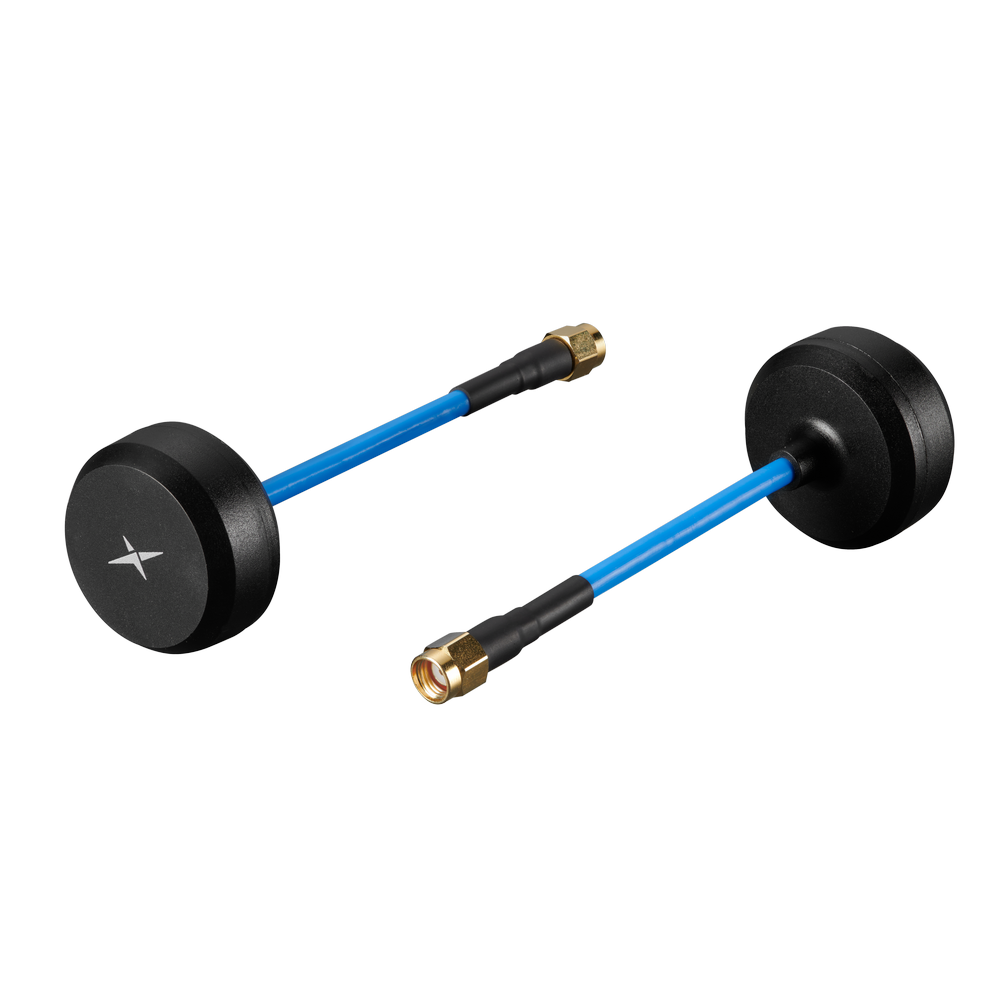

WCM.30.01D151 Antenna Outdoor External Wi-Fi, ISM connector mount RP-SMA-M 8.3cm RG-402 IP67 for First-Person View (FPV) remote controlled drones, wireless video transmission systems, autonomous robots, industrial IoT systems

This circularly polarized antenna is engineered for stable, omni-directional coverage with right-hand circular polarization (RHCP) to support reliable, low-latency wireless video and control links in dynamic environments.

Its rugged, waterproof and UV-rated enclosure is designed for outdoor and harsh deployments, helping maintain consistent performance in the presence of dust and water exposure.

• Designed for RHCP omni-directional coverage to reduce multipath and signal fading
• Built for outdoor use with a waterproof, UV-rated enclosure
• Ideal for FPV and wireless video systems requiring dependable links

Connector & Cable

• Connector Type: RP-SMA (Reverse Polarity) Plug
• Cable Length: 8.3cm
• Cable Type: RG-402

Technical Specifications

Operating Temperature: -40°C to 85°C
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Connector Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
IP Rating: IP67
Dimensions: Ø34.5 x 108 mm
Weight: 12.4g

Wi-Fi/ISM 5.8GHz

Frequency: 5000-5925 MHz
Impedance: 50 Ω
Polarization: RHCP
Radiation Pattern: Omni directional
Efficiency (%): 82.5
Average Gain (dB): -0.84
Peak Gain (dBi): 4.82
VSWR: <2
Axial Ratio (dB): < 3
Connector Type: RP-SMA Plug (Reverse Polarity)
Connector Body Style: Straight
Cable Length: 8.3cm
Cable Type: RG-402
