Description

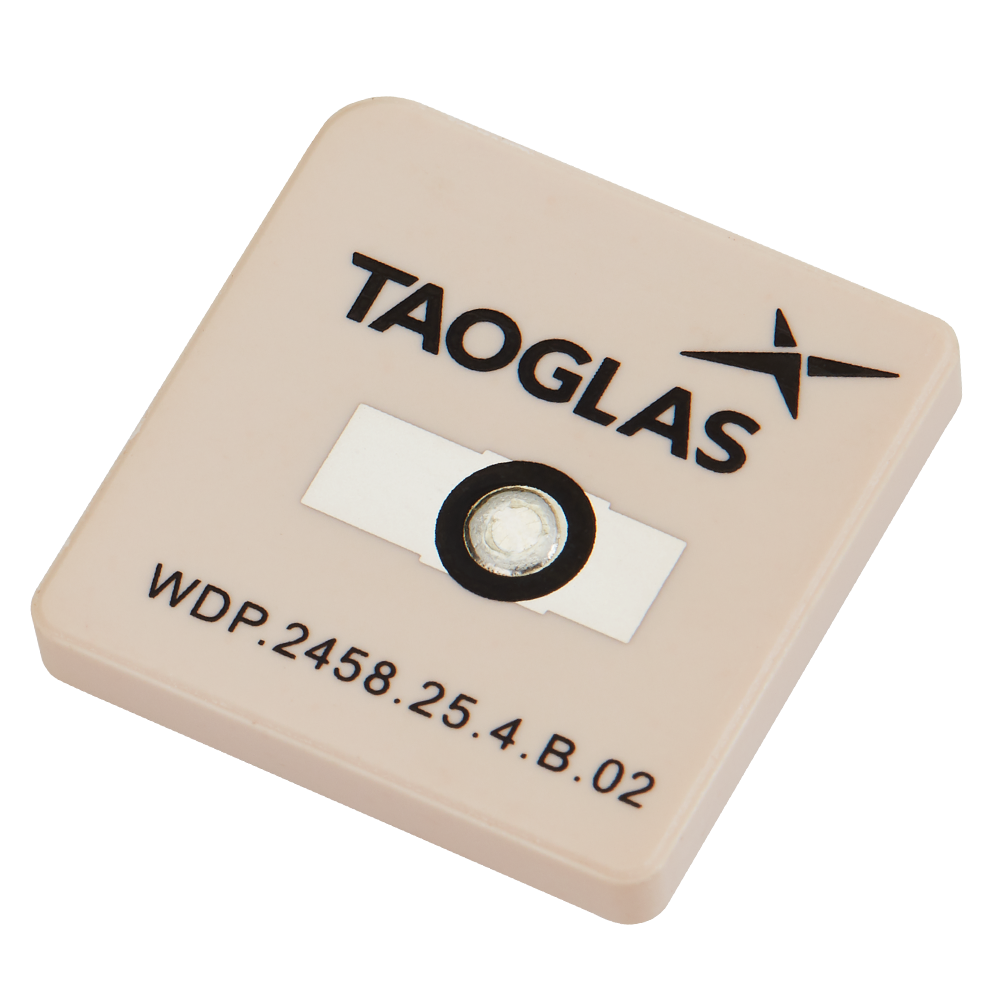

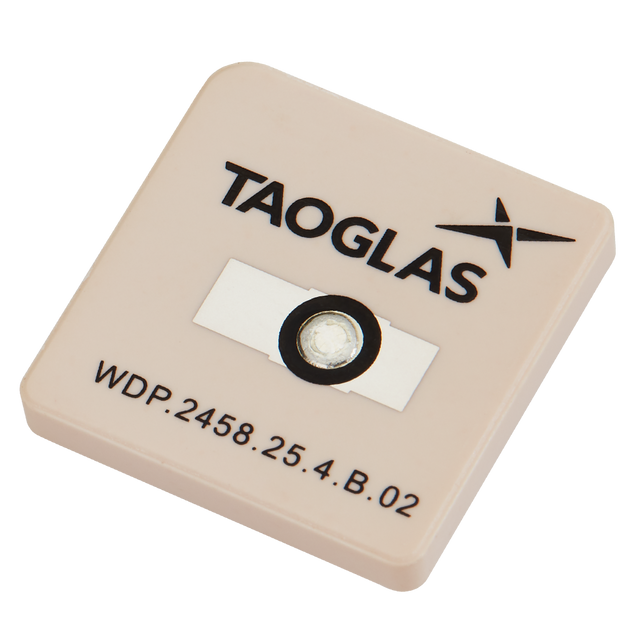

This patent-pending, high-gain embedded ceramic patch antenna is designed for professional dual-band IEEE 802.11 applications. It provides stable, high-efficiency performance across the 2.4GHz and 5GHz bands for longer-range, directional Wi-Fi designs in compact devices.
The antenna supports dual linear polarization to help improve isolation between bands, and is intended for integration into embedded products where consistent throughput and strong link budgets are required.
Typical Applications
- Access Points
- Tablets
- High definition high throughput video streaming routers
- High data MIMO bandwidth routers
- Automotive
- Home and industrial in-wall Wi-Fi automation
- Drones/Quad-copters
- UAV
- Wi-Fi remote control applications
Technical Specifications
Operating Temperature: -40°C to +85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ISM
Type: Single
Dimensions: Ø25 x 4 mm
Weight: 9.5g
Wi-Fi / Bluetooth (Dual-Band)
Frequency: 2400-2500 MHz; 5150-5850 MHz
Standards: IEEE 802.11
Polarization: Linear
Impedance: 50 ohm
VSWR: 2:1
Gain (Max): 6 dBi (2.4GHz), 8 dBi (5GHz)
Input Power: 10W
Termination Style: Pin
