Description

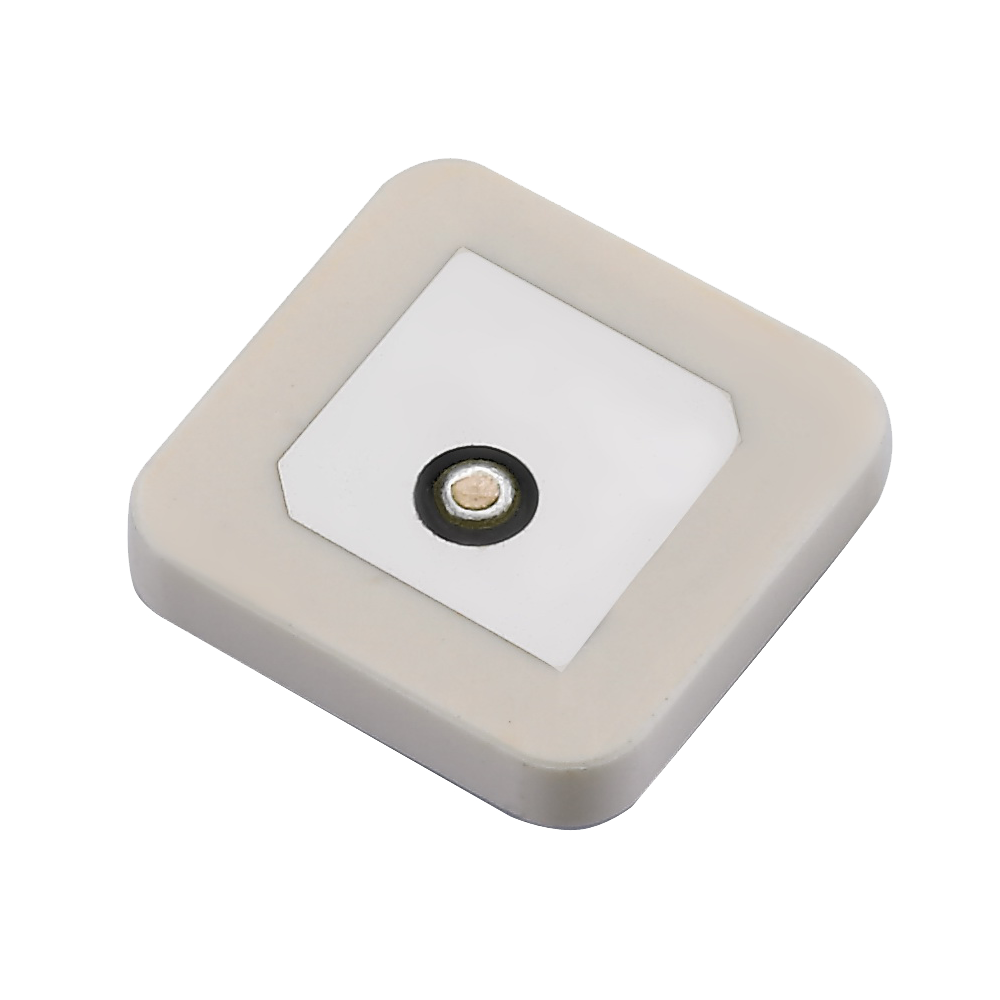

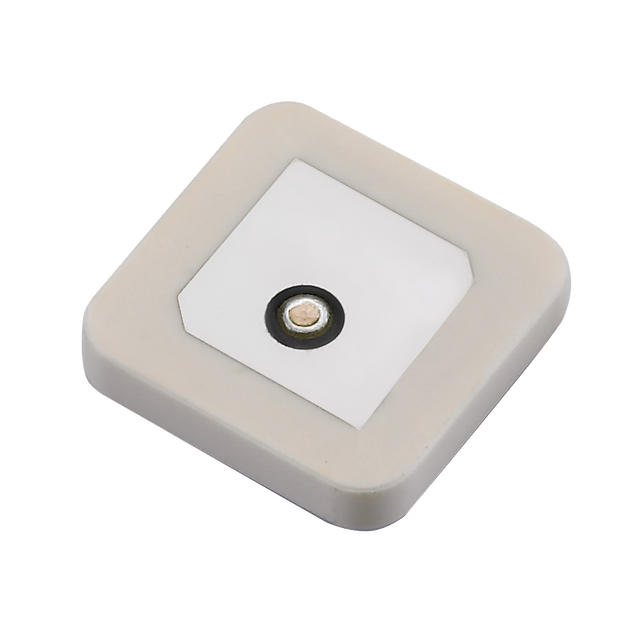

This compact ceramic 2.4GHz patch antenna is designed for embedded wireless devices needing strong performance in the ISM band. It supports Wi-Fi and Bluetooth (and is suitable for ZigBee) and uses a pin plus double-sided adhesive mounting approach for straightforward integration on a ground plane.
- 2.4GHz ISM band coverage for common short-range wireless protocols
- Patch form factor for embedded designs with consistent radiation behavior
- Optimized for use with a 50 x 50mm ground plane to help achieve strong real-world performance
- Well-suited for metering and remote monitoring where extended range is beneficial
Technical Specifications
Operating Temperature: -40°C to +105°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Frequency: 2400-2500 MHz
Impedance: 50 Ω
Polarization: Linear
VSWR: <2.1
Peak Gain (dBi): 5.77
Efficiency (%): 90.5
Average Gain (dB): -0.39
Radiation Pattern: Omni
Max Input Power: 2W
Dimensions: 25*25*4.5mm RoHS & Reach Compliant
Weight: 12.2g
Pin Length: 2.4 mm
Ground Plane size: 50 x 50 mm
Humidity: Non-condensing 65°C 95% RH
