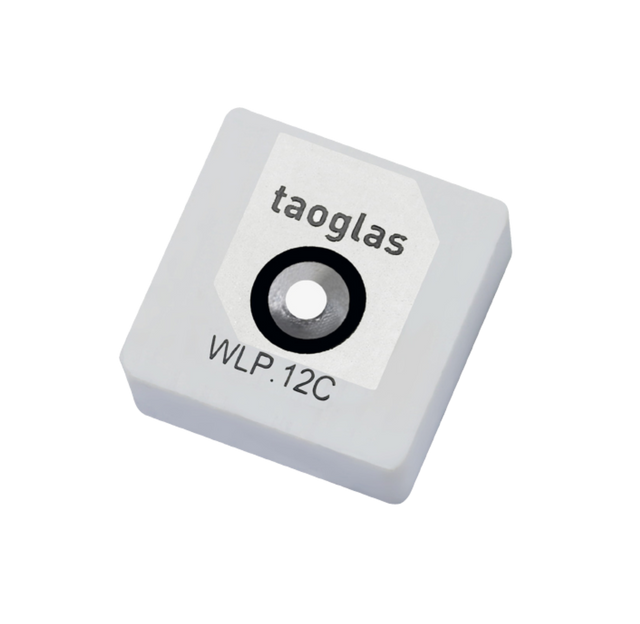

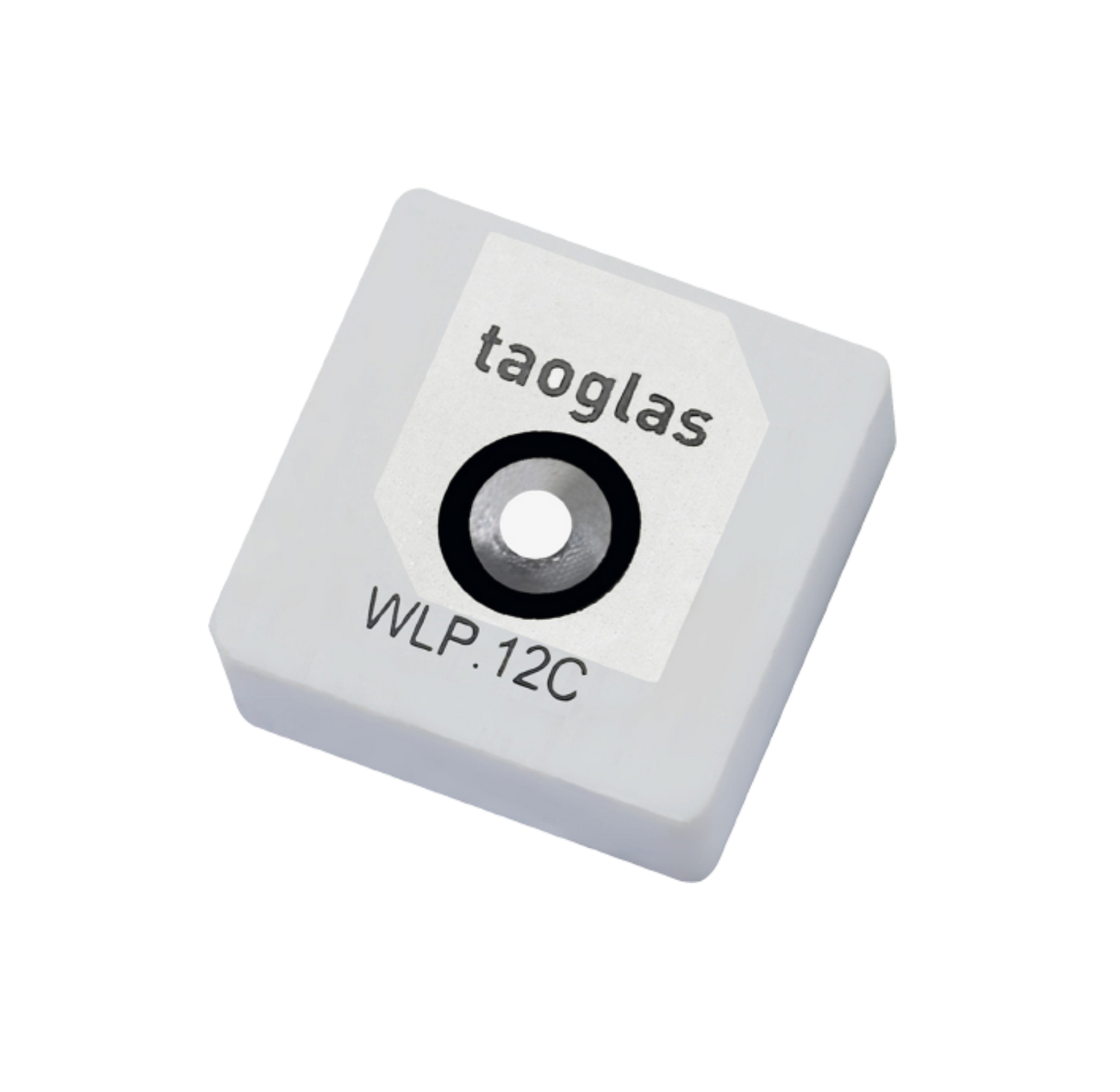

This compact ceramic patch antenna is designed for upper-band Wi-Fi and other 5 GHz ISM applications where strong, reliable performance is required in a small footprint. Its pin-fed patch design allows flexible placement on the device ground plane (not limited to edge placement), making integration easier for many enclosures and layouts.
- Upper-band Wi-Fi / 5 GHz ISM coverage for robust short-range connectivity
- High-gain patch performance to support stronger links in real devices
- Flexible integration—can be tuned with a PI matching circuit or custom-tuned for specific layouts (NRE/MOQ dependent)
- Suitable for industrial and consumer designs, including Public Safety and ZigBee band use cases
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Patch
Location: Internal
Mounting: Pin/Adhesive
Short-Range Wireless Standards: Wi-Fi, Bluetooth, ZigBee, ISM
Type: Single
Frequency: 4900 to 5825 MHz
Impedance: 50Ω
Polarization: Linear
VSWR: <2.1
Gain (Max): 6 dBi
Dimensions: 12 x 11.8 x 4 mm
Weight: 2 g
Termination Style: Pin
Material: Ceramic
Adhesive: TESA 4972
RoHS Compliant: Yes
REACH Compliant: Yes
