Description

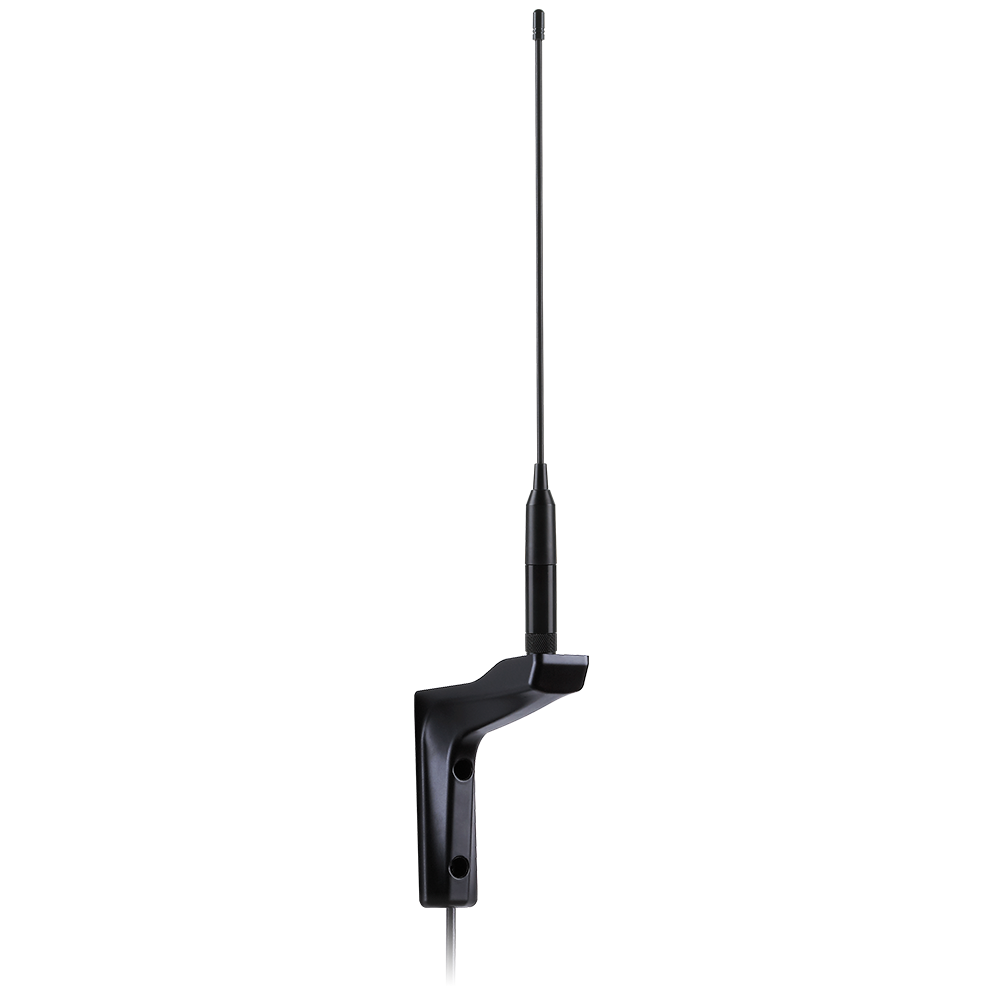

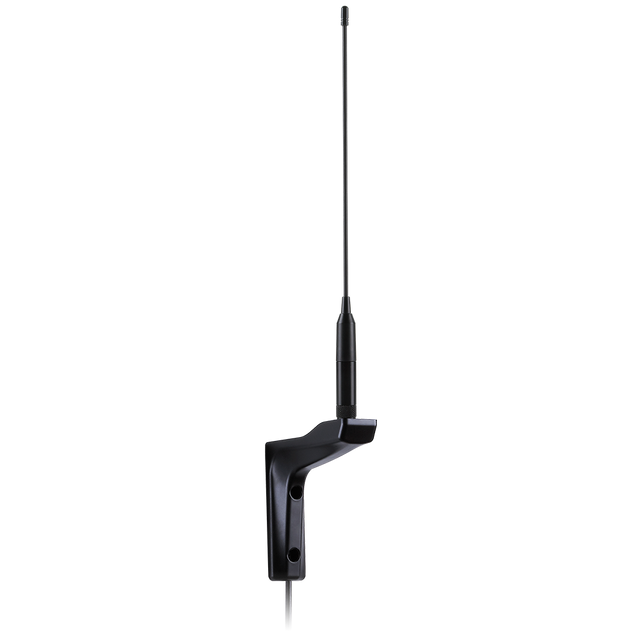

The WM.24 Cyclops is a 2.4GHz flexible whip antenna designed for wall-mounted installations using an L-bracket. Its omni-directional azimuth radiation pattern helps provide broad horizontal coverage for typical indoor or outdoor deployments.
- Flexible, impact-resistant whip: Inner steel core with TPU covering helps the antenna resist collisions while maintaining RF performance.
- Weather resistant: IP65-rated waterproof sealing at the whip and internal bracket connection.
- Secure, clean integration: Bracket design conceals the cable and supports routing for tidy, vandal-resistant installations.
- Serviceable design: Whip can be removed by unscrewing.
Typical applications include: Remote Monitoring, Connected Enterprise, Agriculture, Security.
Connector & Cable
- Connector Type: SMA Male (ST)
- Cable Length: 300cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Whip
Location: External
Mounting: Wall Mount
Short-Range Wireless Standards: Wi-Fi, Bluetooth
Type: Single
IP Rating: IP65
Antenna Height: 307mm
Bracket Dimensions: 118 x 32 mm
Weight: 330g
Humidity: Non-condensing 65°C 95% RH
Wi-Fi/Bluetooth (2.4GHz)
Frequency: 2400~2500MHz
VSWR: 2:1
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni-Directional
Return Loss: <-10 dB
Input Power: 10W
Gain (Max): 3.35 dBi
Connector Type: SMA(M) ST
Cable Length: 300cm
Cable Type: CFD-200
