Description

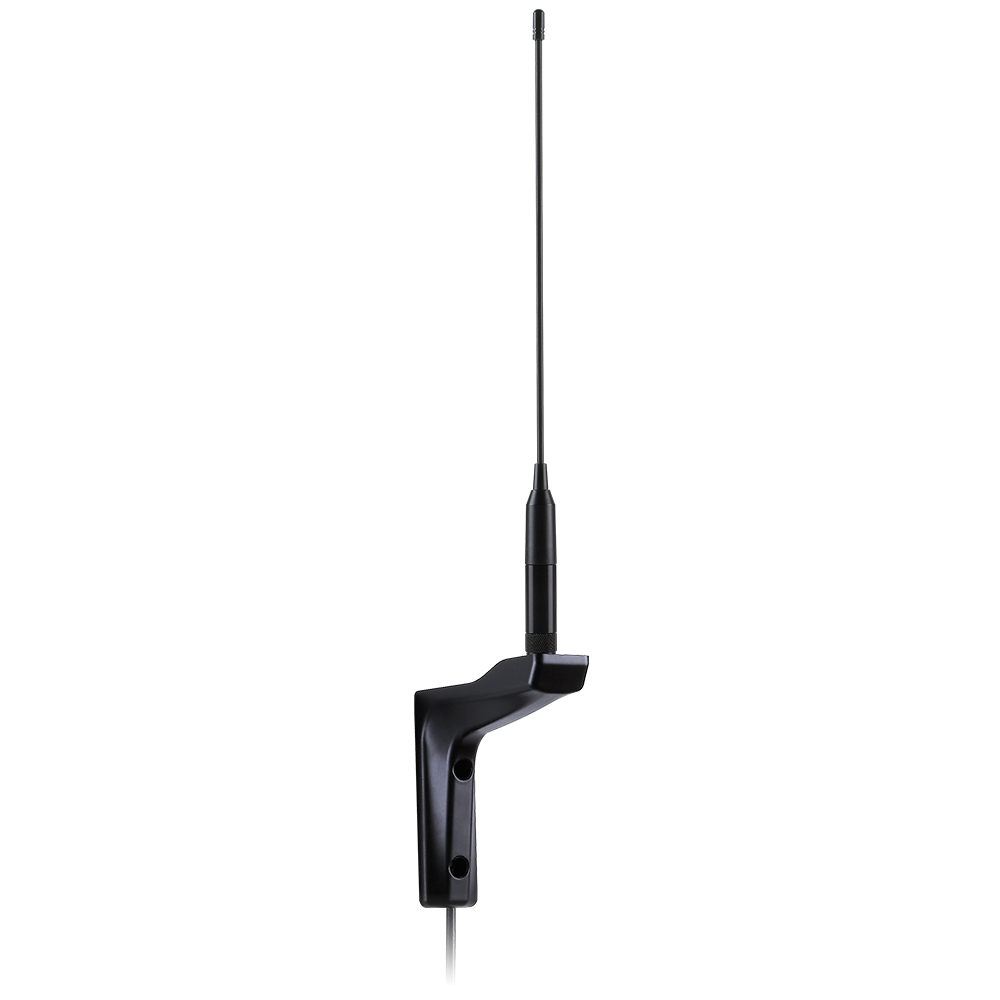

Cyclops is a flexible, omni-directional whip antenna optimized for the 433 MHz ISM band. It is designed for dependable coverage in typical indoor or outdoor deployments and is built to resist impacts while maintaining its shape and RF performance.
This antenna is well-suited for metering, monitoring, and other low-power wireless installations that require a rugged wall-mounted antenna solution.
- Optimized for 433 MHz ISM band
- Omni-directional radiation pattern for broad azimuth coverage
- Flexible inner steel core for durability and collision resistance
- Waterproof design (IP rated)
Connector & Cable
- Connector Type: SMA-M (Straight)
- Cable Length: 300cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Wall Mount
Short-Range Wireless Standards: ISM
Type: Single
IP Rating: IP65
Humidity: Non-condensing 65°C 95% RH
Weight: 330g
Antenna Height: 324mm
Bracket Dimensions: 118 x 32 mm
ISM / LoRa
Frequency: 433MHz
Impedance: 50Ω
VSWR: 2:1
Polarization: Linear
Radiation Pattern: Omni-Directional
Input Power: 10W
Connector Type: SMA(M) ST
Cable Length: 300cm
Cable Type: CFD-200
