Description

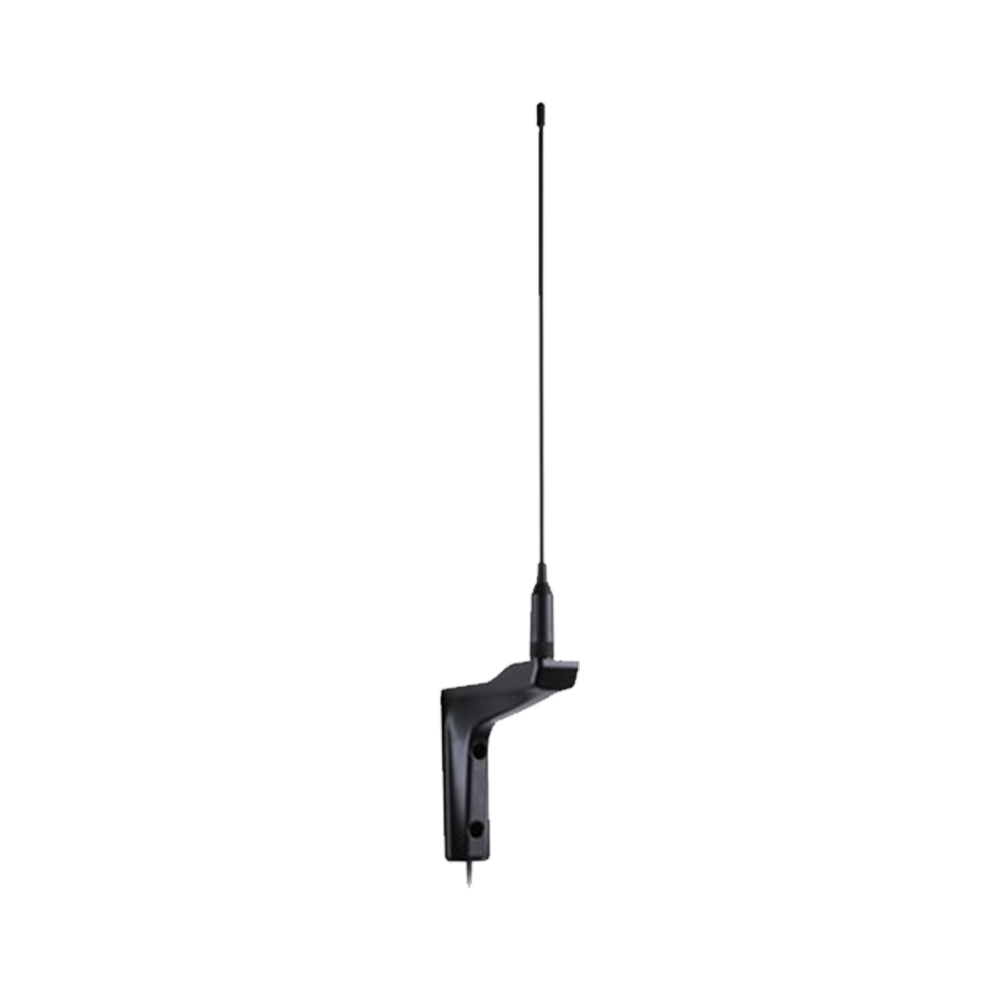

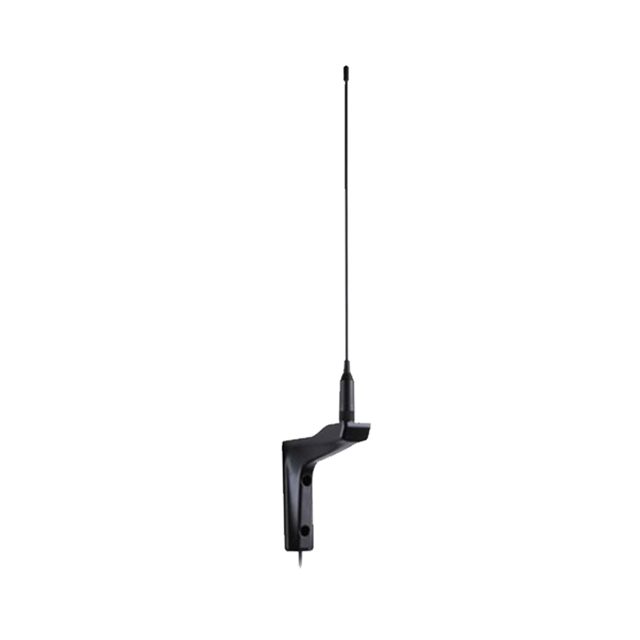

Cyclops WM.80.B is a 169MHz ISM band 1/4 wavelength flexible whip monopole designed for wide-coverage, omni-directional performance in 169MHz deployments.
The rugged whip construction uses a flexible inner steel core with a durable outer cover to help withstand impacts while maintaining shape and RF performance. A wall-mount bracket design supports a clean, secure integration with concealed cable routing and the option to route the cable through the rear of the bracket for improved vandal resistance.
- Optimized omni-directional pattern for wide azimuth coverage
- Flexible whip construction for impact resistance and durability
- Wall-mount bracket for secure, neat installation
- Designed for 169MHz applications including metering and monitoring systems
Typical uses: Wireless M-Bus metering, remote asset monitoring, alarms, paging systems, and private mobile radio services.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, Whip
Location: External
LPWAN & IoT Communication: LoRa
Mounting: Wall Mount
Type: Single
Frequency: 169MHz
IP Rating: IP65
Impedance: 50 Ω
Polarization: Linear
VSWR: <3:1
Peak Gain: 0dBi
Average Gain: -3.9 dBi
Efficiency: 40%
Radiation Pattern: Omni
Input Power: 50W
Tested Power: 10W
Bracket Dimensions: 120*118*32mm
Base Diameter: φ16
Whip Diameter: φ4
Whip Height: 278mm
Casing: ABS
Humidity: Non-condensing 65°C 95% RH
Weight: 330g
