Description

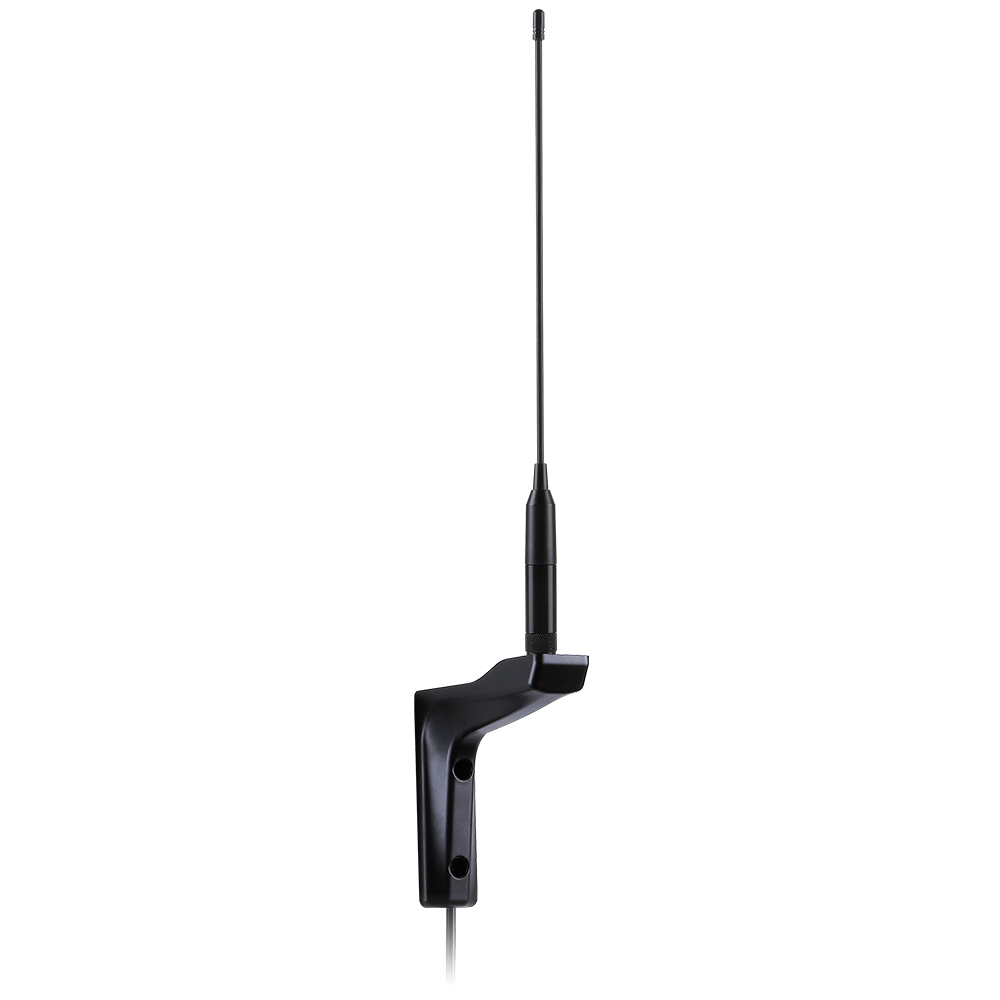

Cyclops WM.90 is a wall-mount flexible whip monopole designed to deliver reliable wide-area cellular coverage across common global bands, including support for Cat M1/LTE-M devices.
The rugged bracketed design helps provide consistent omni-directional performance, while the flexible inner steel core whip is built to withstand impacts and return to shape—ideal for demanding deployments.
- Wideband cellular coverage for 4G/3G/2G networks
- Cat M1/LTE-M support for LPWAN/IoT cellular devices
- Flexible whip construction for improved durability in exposed locations
- Wall-mount bracket for clean, secure installations and cable concealment
Typical use cases: Automotive and industrial connectivity installations where a robust external wall-mounted antenna is required.
Connector & Cable
- Connector Type: SMA-M
- Cable Length: 300cm
- Cable Type: CFD-200
Technical Specifications
Operating Temperature: -40°C to 85°C
Antenna Technologies: Monopole, Whip
Cellular Technologies: 4G/LTE
Location: External
LPWAN & IoT Communication: Cat-M
Mounting: Wall Mount
Type: Single
IP Rating: IP65
Height: 248 ± 5 mm
Base Diameter: 17.08 ± 0.2 mm
Whip Diameter: 4 ± 0.2 mm
Casing: ABS
Weight: 420g
Cellular
Frequency: 698-960 MHz / 1710-2690 MHz
Standards: 4G/3G/2G, Cat M1/LTE-M
Impedance: 50Ω
Polarization: Linear
Radiation Pattern: Omni
VSWR: 3:1
Input Power: 2 W
Tested Power: 10 W
Connector Type: SMA Male (Straight)
Cable Length: 300cm
Cable Type: CFD-200
